SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.47 | 283.62 | 85.15 | 773.42 | 8.07 | 249.23 | -79.41 | 82.81 | 0.9787 | -140.0 | -57.4 | |
|
previous
or next observation for the same group /

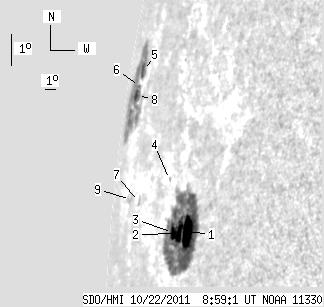

back to the solar disc SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.67 | 194.83 | 34.18 | 352.98 | 6.20 | 254.81 | -73.83 | 85.10 | 0.9596 | -555.7 | -100.4 | |
| 9.31 | -1.00 | 17.15 | -1.00 | 6.06 | 253.85 | -74.79 | 85.18 | 0.9642 | -200.8 | 999999 | |
| 2.52 | -1.00 | 4.85 | -1.00 | 6.02 | 253.15 | -75.49 | 85.17 | 0.9674 | 236.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 2.50 | 7.52 | 252.03 | -76.60 | 83.55 | 0.9716 | -32.0 | -28.9 | |
| 4.18 | 81.57 | 16.66 | 398.01 | 10.20 | 245.07 | -83.57 | 80.36 | 0.9926 | 254.4 | -38.7 | |
| 0.35 | -5.00 | 1.50 | -5.00 | 9.66 | 244.50 | -84.13 | 80.86 | 0.9938 | 325.8 | 999999 | |
| 0.00 | 2.52 | 0.00 | 7.39 | 6.48 | 247.80 | -80.84 | 84.32 | 0.9865 | 315.0 | 286.5 | |
| 2.44 | -5.00 | 10.81 | -5.00 | 9.38 | 244.37 | -84.27 | 81.14 | 0.9941 | 334.0 | 999999 | |
| 0.00 | 3.48 | 0.00 | 12.54 | 6.39 | 246.16 | -82.48 | 84.28 | 0.9908 | 327.0 | 203.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
