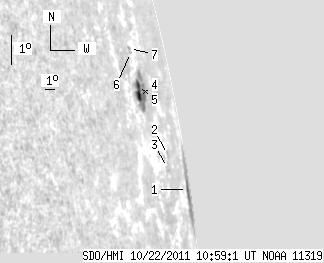

SDO HMI 2011-10-22 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 61.71 | 11.88 | 422.94 | 9.17 | 53.34 | 85.80 | 278.80 | 0.9953 | 286.3 | -133.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 29.85 | 2.14 | 334.18 | 8.49 | 54.82 | 87.28 | 278.22 | 0.9984 | 651.0 | -116.3 | |
| 0.00 | 2.18 | 0.00 | 7.78 | 9.97 | 50.33 | 82.78 | 279.35 | 0.9909 | -475.0 | -368.6 | |
| 0.00 | 3.22 | 0.00 | 10.96 | 9.61 | 49.85 | 82.30 | 278.96 | 0.9898 | -372.0 | -192.4 | |
| 2.18 | 23.93 | 5.50 | 63.53 | 12.03 | 47.06 | 79.52 | 281.24 | 0.9814 | 344.4 | -241.6 | |
| 1.65 | -4.00 | 4.24 | -4.00 | 12.35 | 47.27 | 79.73 | 281.58 | 0.9820 | 329.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 3.14 | 13.36 | 47.33 | 79.79 | 282.61 | 0.9821 | 376.0 | 224.9 | |
| 0.00 | 1.31 | 0.00 | 3.35 | 13.48 | 47.32 | 79.78 | 282.73 | 0.9820 | 331.0 | 251.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
