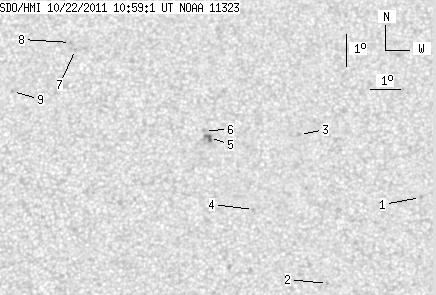

SDO HMI 2011-10-22 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.87 | 14.36 | 1.51 | 7.57 | 25.10 | 329.43 | 1.88 | 354.30 | 0.3463 | -263.5 | -220.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.55 | 23.09 | 336.43 | 8.88 | 335.14 | 0.3394 | -763.0 | -562.3 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 20.45 | 333.28 | 5.73 | 340.32 | 0.2793 | -798.0 | -624.6 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 25.12 | 332.55 | 5.01 | 346.89 | 0.3500 | -741.0 | -567.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 22.77 | 330.97 | 3.43 | 349.60 | 0.3067 | -872.0 | -581.5 | |
| 2.87 | 5.05 | 1.51 | 2.66 | 25.04 | 329.58 | 2.04 | 354.55 | 0.3408 | -857.8 | -711.4 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 25.26 | 329.42 | 1.88 | 355.04 | 0.3442 | -629.0 | -571.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 27.86 | 325.11 | -2.43 | 5.59 | 0.3872 | 928.0 | 659.8 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 28.08 | 324.93 | -2.61 | 5.92 | 0.3911 | 854.0 | 704.4 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 26.49 | 323.03 | -4.51 | 11.00 | 0.3702 | 810.0 | 620.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
