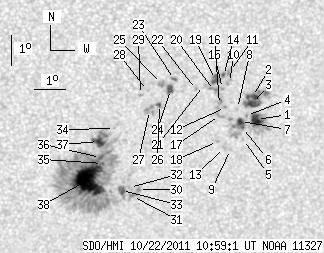

SDO HMI 2011-10-22 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.62 | 471.85 | 57.12 | 263.17 | -21.17 | 333.79 | 6.25 | 192.93 | 0.4599 | -107.2 | -143.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.49 | 31.07 | 5.29 | 17.34 | -20.03 | 337.72 | 10.18 | 201.27 | 0.4596 | 992.8 | 290.3 | |
| 5.13 | 25.59 | 2.84 | 14.17 | -19.27 | 337.54 | 10.00 | 201.58 | 0.4477 | 1099.4 | 754.3 | |
| 7.57 | -2.00 | 4.20 | -2.00 | -19.50 | 337.56 | 10.02 | 201.41 | 0.4511 | 965.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -19.89 | 337.39 | 9.85 | 200.75 | 0.4558 | 970.0 | 885.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -20.69 | 337.34 | 9.80 | 200.03 | 0.4670 | 586.0 | 375.5 | |
| 0.26 | 20.97 | 0.15 | 11.69 | -20.29 | 337.29 | 9.74 | 200.23 | 0.4609 | 708.0 | 562.5 | |
| 3.57 | -6.00 | 1.99 | -6.00 | -20.09 | 337.21 | 9.67 | 200.25 | 0.4576 | 999.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.66 | 337.09 | 9.54 | 200.36 | 0.4507 | 699.0 | 546.4 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -21.01 | 336.94 | 9.40 | 199.03 | 0.4697 | 555.0 | 376.3 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -18.80 | 336.78 | 9.24 | 200.46 | 0.4365 | 570.0 | 691.7 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -18.44 | 336.76 | 9.22 | 200.73 | 0.4311 | 748.0 | 677.0 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -19.62 | 336.70 | 9.16 | 199.63 | 0.4481 | 901.0 | 680.7 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -20.94 | 336.75 | 9.20 | 198.71 | 0.4677 | 602.0 | 494.5 | |
| 1.13 | 8.70 | 0.62 | 4.78 | -18.57 | 336.58 | 9.03 | 200.24 | 0.4320 | 993.2 | 840.0 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -18.99 | 336.57 | 9.03 | 199.87 | 0.4382 | 861.0 | 799.2 | |
| 0.00 | 3.39 | 0.00 | 1.88 | -19.52 | 336.50 | 8.96 | 199.32 | 0.4455 | 568.0 | 559.4 | |
| 0.00 | 3.13 | 0.00 | 1.74 | -19.88 | 336.52 | 8.98 | 199.08 | 0.4510 | 492.0 | 554.3 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -20.74 | 336.51 | 8.97 | 198.40 | 0.4635 | 645.0 | 563.0 | |
| 4.53 | -14.00 | 2.48 | -14.00 | -18.70 | 336.33 | 8.79 | 199.63 | 0.4325 | 994.4 | 999999 | |
| 0.00 | 5.57 | 0.00 | 3.07 | -19.06 | 336.31 | 8.77 | 199.31 | 0.4378 | 772.0 | 721.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -18.89 | 335.96 | 8.41 | 198.71 | 0.4334 | 399.0 | 421.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -19.01 | 335.74 | 8.20 | 198.16 | 0.4343 | 826.0 | 706.3 | |
| 1.83 | 2.26 | 1.00 | 1.24 | -18.68 | 335.02 | 7.48 | 196.91 | 0.4258 | 831.0 | 692.2 | |
| 4.70 | 5.57 | 2.58 | 3.05 | -19.00 | 334.91 | 7.37 | 196.44 | 0.4302 | 916.9 | 783.8 | |
| 0.00 | 4.26 | 0.00 | 2.33 | -18.80 | 334.61 | 7.07 | 195.95 | 0.4259 | 1000.0 | 821.9 | |
| 1.31 | 2.52 | 0.72 | 1.39 | -19.49 | 334.58 | 7.04 | 195.43 | 0.4362 | 756.1 | 609.9 | |
| 0.00 | 7.31 | 0.00 | 4.02 | -19.69 | 334.27 | 6.73 | 194.66 | 0.4378 | 704.0 | 573.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.03 | 334.18 | 6.64 | 194.88 | 0.4275 | 531.0 | 583.7 | |
| 0.00 | 1.74 | 0.00 | 0.95 | -19.16 | 333.96 | 6.42 | 194.33 | 0.4286 | 607.0 | 520.3 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -22.31 | 334.03 | 6.49 | 192.73 | 0.4766 | -862.0 | -750.3 | |
| 0.00 | 3.92 | 0.00 | 2.21 | -22.55 | 333.85 | 6.31 | 192.27 | 0.4795 | -735.0 | -563.2 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -22.24 | 333.74 | 6.20 | 192.20 | 0.4746 | -823.0 | -684.2 | |
| 4.79 | 323.93 | 2.69 | 181.12 | -22.34 | 333.48 | 5.94 | 191.67 | 0.4753 | -827.6 | -393.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.27 | 333.18 | 5.63 | 192.06 | 0.4428 | -671.0 | -511.6 | |
| 0.96 | -33.00 | 0.53 | -33.00 | -21.43 | 332.83 | 5.29 | 190.81 | 0.4595 | -815.7 | 999999 | |
| 2.00 | -33.00 | 1.11 | -33.00 | -21.23 | 332.76 | 5.22 | 190.76 | 0.4562 | -967.0 | 999999 | |
| 8.09 | -33.00 | 4.48 | -33.00 | -20.70 | 332.68 | 5.14 | 190.83 | 0.4478 | -1069.3 | 999999 | |
| 47.26 | -33.00 | 26.44 | -33.00 | -21.96 | 332.40 | 4.86 | 189.74 | 0.4664 | -1216.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
