SDO HMI 2011-10-22 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.50 | 0.00 | 10.27 | 24.51 | 330.52 | 3.52 | 349.78 | 0.3412 | -546.9 | -443.1 | |
|
previous
or next observation for the same group /

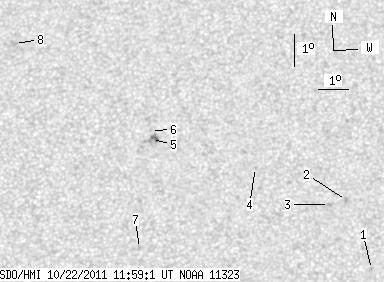

back to the solar disc SDO HMI 2011-10-22 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.63 | 20.87 | 336.41 | 9.42 | 330.43 | 0.3113 | -750.0 | -611.9 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 23.03 | 335.74 | 8.75 | 335.39 | 0.3375 | -850.0 | -705.5 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 22.91 | 335.18 | 8.18 | 336.63 | 0.3320 | -735.0 | -605.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 24.10 | 332.81 | 5.82 | 343.99 | 0.3372 | -714.0 | -517.5 | |
| 0.00 | 7.74 | 0.00 | 4.08 | 25.00 | 329.42 | 2.43 | 353.50 | 0.3409 | -725.0 | -727.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 25.29 | 329.40 | 2.40 | 353.67 | 0.3456 | -686.0 | -495.8 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 21.58 | 328.98 | 1.98 | 353.46 | 0.2836 | -670.0 | -437.5 | |
| 0.00 | 3.05 | 0.00 | 1.64 | 28.08 | 324.86 | -2.14 | 4.86 | 0.3903 | 755.0 | 645.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
