SDO HMI 2011-10-22 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.62 | 729.19 | 98.35 | 393.91 | 12.09 | 304.70 | -22.29 | 71.21 | 0.3922 | -53.8 | -42.2 | |
|
previous
or next observation for the same group /

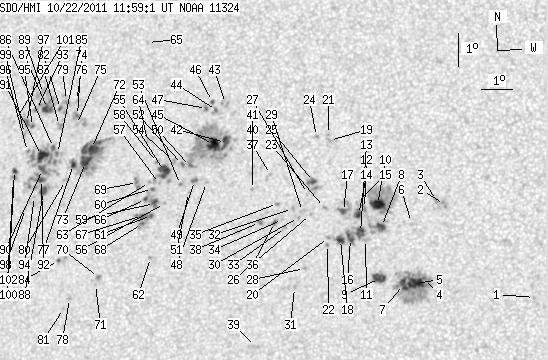

back to the solar disc SDO HMI 2011-10-22 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.06 | 315.22 | -11.77 | 71.46 | 0.2135 | -715.0 | -526.8 | |
| 0.00 | 3.57 | 0.00 | 1.84 | 11.79 | 312.30 | -14.70 | 64.96 | 0.2754 | -810.0 | -720.1 | |
| 0.00 | 2.61 | 0.00 | 1.35 | 11.90 | 312.04 | -14.96 | 64.94 | 0.2800 | -898.0 | -739.4 | |
| 1.13 | 87.02 | 0.58 | 44.83 | 9.56 | 311.75 | -15.25 | 73.36 | 0.2719 | -1015.2 | -538.7 | |
| 11.66 | -4.00 | 6.01 | -4.00 | 9.40 | 311.50 | -15.49 | 74.13 | 0.2751 | -1264.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 11.23 | 311.29 | -15.71 | 68.12 | 0.2875 | -451.0 | -483.3 | |
| 5.13 | -4.00 | 2.65 | -4.00 | 9.36 | 311.13 | -15.86 | 74.59 | 0.2810 | -947.8 | 999999 | |
| 4.87 | 16.79 | 2.53 | 8.73 | 11.08 | 310.34 | -16.65 | 69.60 | 0.3013 | -1120.0 | -820.1 | |
| 9.57 | 11.14 | 4.96 | 5.77 | 9.52 | 310.37 | -16.63 | 74.65 | 0.2940 | -936.1 | -699.1 | |
| 10.18 | 58.04 | 5.30 | 30.19 | 11.74 | 310.18 | -16.82 | 67.73 | 0.3075 | -1138.8 | -420.0 | |
| 0.00 | 2.44 | 0.00 | 1.27 | 10.68 | 309.86 | -17.13 | 71.34 | 0.3069 | -475.0 | -321.5 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 11.61 | 309.77 | -17.22 | 68.55 | 0.3130 | -816.0 | -715.5 | |
| 4.96 | 19.32 | 2.58 | 10.07 | 10.88 | 309.69 | -17.31 | 70.85 | 0.3106 | -1133.6 | -864.5 | |
| 3.31 | 5.57 | 1.72 | 2.91 | 11.42 | 309.59 | -17.40 | 69.29 | 0.3148 | -946.4 | -790.0 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 11.75 | 309.51 | -17.49 | 68.39 | 0.3178 | -416.0 | -375.9 | |
| 3.74 | -13.00 | 1.95 | -13.00 | 10.70 | 309.38 | -17.61 | 71.70 | 0.3146 | -898.2 | 999999 | |
| 3.57 | 14.44 | 1.87 | 7.55 | 11.50 | 309.11 | -17.89 | 69.53 | 0.3227 | -828.8 | -510.0 | |
| 4.70 | 7.57 | 2.45 | 3.96 | 10.66 | 309.07 | -17.93 | 72.09 | 0.3194 | -850.2 | -651.8 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 13.62 | 308.50 | -18.49 | 64.15 | 0.3440 | -939.0 | -709.5 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 10.71 | 308.68 | -18.32 | 72.25 | 0.3257 | -680.0 | -549.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.80 | 308.45 | -18.54 | 63.72 | 0.3459 | -772.0 | -530.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 10.50 | 308.66 | -18.33 | 72.89 | 0.3251 | -707.0 | -572.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.60 | 308.49 | -18.50 | 69.79 | 0.3327 | -1007.0 | -844.8 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 13.73 | 308.07 | -18.92 | 64.33 | 0.3511 | -914.0 | -712.0 | |
| 2.44 | 10.53 | 1.28 | 5.55 | 12.37 | 308.08 | -18.91 | 67.99 | 0.3430 | -948.9 | -792.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.38 | 308.06 | -18.94 | 70.80 | 0.3384 | -869.0 | -749.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.00 | 307.92 | -19.08 | 69.15 | 0.3436 | -504.0 | -464.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 9.76 | 307.97 | -19.03 | 75.56 | 0.3332 | -818.0 | -642.9 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 11.46 | 307.79 | -19.20 | 70.78 | 0.3429 | -675.0 | -698.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.28 | 307.68 | -19.32 | 71.39 | 0.3438 | -856.0 | -655.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 9.18 | 307.68 | -19.31 | 77.43 | 0.3360 | -810.0 | -652.6 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 11.54 | 307.46 | -19.53 | 70.82 | 0.3483 | -849.0 | -658.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 10.96 | 307.28 | -19.71 | 72.56 | 0.3487 | -822.0 | -664.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.20 | 307.17 | -19.83 | 71.98 | 0.3514 | -704.0 | -555.5 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 11.68 | 306.97 | -20.02 | 70.84 | 0.3566 | -646.0 | -503.9 | |
| 0.00 | 2.78 | 0.00 | 1.47 | 11.10 | 306.91 | -20.08 | 72.43 | 0.3549 | -788.0 | -674.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.54 | 306.67 | -20.32 | 68.78 | 0.3652 | -854.0 | -620.3 | |
| 0.00 | 2.52 | 0.00 | 1.34 | 11.09 | 306.43 | -20.57 | 72.81 | 0.3624 | -785.0 | -667.2 | |
| 0.00 | 3.22 | 0.00 | 1.70 | 7.38 | 306.53 | -20.47 | 83.08 | 0.3509 | -598.0 | -590.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 12.07 | 306.12 | -20.87 | 70.43 | 0.3713 | -866.0 | -667.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 12.58 | 306.08 | -20.91 | 69.15 | 0.3744 | -637.0 | -542.4 | |
| 6.61 | 113.82 | 3.56 | 61.48 | 13.45 | 305.11 | -21.88 | 67.75 | 0.3933 | -960.7 | -118.1 | |
| 0.00 | 5.22 | 0.00 | 2.82 | 14.63 | 305.00 | -22.00 | 65.05 | 0.4015 | -486.0 | -608.0 | |
| 1.31 | 4.09 | 0.71 | 2.21 | 14.41 | 304.72 | -22.27 | 65.80 | 0.4042 | -824.6 | -435.2 | |
| 11.05 | -42.00 | 5.96 | -42.00 | 13.38 | 304.72 | -22.27 | 68.23 | 0.3987 | -921.5 | 999999 | |
| 1.31 | 1.83 | 0.71 | 0.99 | 14.67 | 304.56 | -22.44 | 65.32 | 0.4081 | -546.2 | -635.5 | |
| 1.39 | 2.35 | 0.76 | 1.27 | 14.46 | 304.38 | -22.61 | 65.97 | 0.4094 | -669.7 | -438.0 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 12.23 | 304.60 | -22.39 | 71.10 | 0.3952 | 943.0 | 674.6 | |
| 0.78 | 2.61 | 0.42 | 1.41 | 12.28 | 304.20 | -22.80 | 71.25 | 0.4015 | 1000.2 | 864.4 | |
| 1.31 | -42.00 | 0.71 | -42.00 | 12.69 | 304.03 | -22.97 | 70.36 | 0.4059 | 836.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 11.91 | 304.03 | -22.96 | 72.24 | 0.4025 | -552.0 | -334.2 | |
| 1.31 | -42.00 | 0.71 | -42.00 | 12.74 | 303.76 | -23.24 | 70.42 | 0.4102 | 971.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 12.14 | 303.75 | -23.25 | 71.86 | 0.4078 | 920.0 | 805.0 | |
| 0.00 | 2.26 | 0.00 | 1.23 | 12.82 | 303.45 | -23.55 | 70.44 | 0.4152 | 880.0 | 835.6 | |
| 9.83 | 17.75 | 5.36 | 9.67 | 12.51 | 303.18 | -23.82 | 71.33 | 0.4179 | 925.8 | 340.5 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 11.55 | 303.27 | -23.73 | 73.53 | 0.4128 | 748.0 | 604.4 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 12.14 | 303.05 | -23.95 | 72.26 | 0.4184 | 714.0 | 635.6 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 12.77 | 302.92 | -24.08 | 70.88 | 0.4229 | 754.0 | 632.4 | |
| 3.22 | 13.14 | 1.75 | 7.17 | 11.54 | 302.94 | -24.06 | 73.73 | 0.4179 | 648.1 | -83.3 | |
| 1.13 | 1.65 | 0.62 | 0.90 | 11.99 | 302.83 | -24.17 | 72.75 | 0.4211 | 652.9 | 758.7 | |
| 1.22 | 19.84 | 0.66 | 10.82 | 11.18 | 302.87 | -24.13 | 74.62 | 0.4177 | 426.0 | -399.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 9.92 | 302.94 | -24.05 | 77.58 | 0.4129 | 826.0 | 690.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 12.16 | 302.71 | -24.28 | 72.40 | 0.4236 | -635.0 | -448.1 | |
| 0.00 | 2.35 | 0.00 | 1.29 | 13.42 | 302.51 | -24.48 | 69.67 | 0.4317 | 773.0 | 590.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.38 | 302.15 | -24.84 | 63.57 | 0.4520 | -652.0 | -455.0 | |
| 1.31 | -59.00 | 0.71 | -59.00 | 11.65 | 302.63 | -24.37 | 73.64 | 0.4230 | -702.9 | 999999 | |
| 2.00 | -61.00 | 1.09 | -61.00 | 11.16 | 302.57 | -24.42 | 74.79 | 0.4222 | -790.2 | 999999 | |
| 1.04 | -61.00 | 0.57 | -61.00 | 10.93 | 302.59 | -24.40 | 75.34 | 0.4211 | -854.6 | 999999 | |
| 0.00 | 5.40 | 0.00 | 2.96 | 12.15 | 302.31 | -24.69 | 72.66 | 0.4295 | -765.0 | -634.9 | |
| 0.00 | 3.05 | 0.00 | 1.68 | 9.25 | 301.26 | -25.74 | 79.68 | 0.4375 | 945.0 | 781.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 9.04 | 301.17 | -25.82 | 80.19 | 0.4384 | 819.0 | 686.8 | |
| 15.58 | 74.83 | 8.67 | 41.63 | 13.11 | 300.65 | -26.35 | 71.43 | 0.4579 | 930.7 | 643.6 | |
| 10.44 | -72.00 | 5.81 | -72.00 | 12.68 | 300.49 | -26.50 | 72.42 | 0.4586 | 1078.4 | 999999 | |
| 1.04 | 9.05 | 0.59 | 5.07 | 14.08 | 300.05 | -26.95 | 69.72 | 0.4705 | 848.0 | 770.8 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 13.81 | 300.05 | -26.95 | 70.28 | 0.4694 | 864.0 | 724.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 14.53 | 299.95 | -27.04 | 68.86 | 0.4738 | 569.0 | 539.9 | |
| 2.70 | -72.00 | 1.51 | -72.00 | 12.60 | 300.09 | -26.91 | 72.78 | 0.4643 | 972.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 8.59 | 300.33 | -26.66 | 81.40 | 0.4506 | 802.0 | 556.9 | |
| 0.00 | 5.74 | 0.00 | 3.24 | 14.52 | 299.61 | -27.39 | 69.08 | 0.4787 | 628.0 | 620.1 | |
| 0.00 | 2.26 | 0.00 | 1.26 | 12.11 | 299.87 | -27.13 | 73.92 | 0.4659 | 744.0 | 721.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 8.28 | 300.15 | -26.84 | 82.11 | 0.4530 | 808.0 | 621.7 | |
| 1.48 | 5.13 | 0.83 | 2.89 | 14.27 | 299.43 | -27.56 | 69.68 | 0.4801 | 822.2 | 630.5 | |
| 0.00 | 4.00 | 0.00 | 2.25 | 13.75 | 299.47 | -27.53 | 70.70 | 0.4776 | 820.0 | 711.0 | |
| 0.87 | 3.48 | 0.48 | 1.94 | 9.71 | 299.87 | -27.13 | 79.06 | 0.4597 | 708.7 | 674.7 | |
| 1.39 | 86.06 | 0.78 | 48.52 | 12.91 | 299.50 | -27.49 | 72.42 | 0.4740 | 884.2 | 677.5 | |
| 2.00 | -85.00 | 1.13 | -85.00 | 13.08 | 299.34 | -27.65 | 72.13 | 0.4769 | 719.7 | 999999 | |
| 6.53 | 18.71 | 3.70 | 10.60 | 14.25 | 298.98 | -28.01 | 69.96 | 0.4865 | 895.1 | 434.7 | |
| 5.31 | -85.00 | 2.99 | -85.00 | 11.75 | 299.15 | -27.84 | 74.97 | 0.4754 | 920.0 | 999999 | |
| 0.00 | 9.14 | 0.00 | 5.19 | 14.69 | 298.78 | -28.21 | 69.18 | 0.4912 | 37.0 | 43.4 | |
| 4.87 | -85.00 | 2.75 | -85.00 | 12.41 | 299.04 | -27.95 | 73.65 | 0.4791 | 915.2 | 999999 | |
| 8.88 | -85.00 | 5.01 | -85.00 | 12.83 | 298.96 | -28.04 | 72.83 | 0.4817 | 878.4 | 999999 | |
| 3.65 | -85.00 | 2.06 | -85.00 | 12.11 | 299.04 | -27.95 | 74.27 | 0.4781 | 949.0 | 999999 | |
| 1.31 | -87.00 | 0.74 | -87.00 | 14.20 | 298.60 | -28.39 | 70.25 | 0.4918 | 567.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 11.59 | 298.86 | -28.14 | 75.41 | 0.4793 | 673.0 | 556.6 | |
| 0.96 | 7.74 | 0.54 | 4.41 | 13.68 | 298.53 | -28.46 | 71.31 | 0.4908 | 673.4 | 644.0 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 12.93 | 298.46 | -28.54 | 72.85 | 0.4893 | 660.0 | 523.8 | |
| 2.44 | -95.00 | 1.39 | -95.00 | 13.80 | 298.31 | -28.68 | 71.19 | 0.4944 | 748.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 11.21 | 298.59 | -28.41 | 76.28 | 0.4823 | 562.0 | 501.4 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 13.46 | 298.28 | -28.71 | 71.86 | 0.4936 | 660.0 | 548.7 | |
| 2.09 | 2.78 | 1.19 | 1.58 | 12.34 | 298.08 | -28.92 | 74.19 | 0.4930 | 640.6 | 598.5 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 13.81 | 297.89 | -29.11 | 71.37 | 0.5006 | 469.0 | 441.3 | |
| 0.00 | 2.35 | 0.00 | 1.34 | 12.12 | 298.07 | -28.93 | 74.62 | 0.4925 | 689.0 | 592.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
