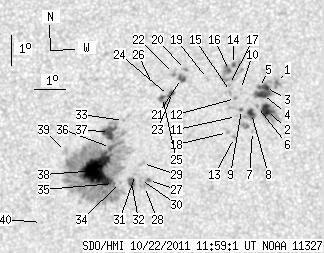

SDO HMI 2011-10-22 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.74 | 449.52 | 62.29 | 250.89 | -21.13 | 333.69 | 6.69 | 193.82 | 0.4608 | -223.4 | -133.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 3.65 | 0.24 | 2.03 | -19.13 | 337.98 | 10.99 | 203.61 | 0.4514 | 827.4 | 627.9 | |
| 9.92 | 23.41 | 5.54 | 13.08 | -20.04 | 337.72 | 10.73 | 202.29 | 0.4629 | 963.1 | 279.2 | |
| 3.39 | 18.97 | 1.88 | 10.53 | -19.28 | 337.64 | 10.64 | 202.81 | 0.4516 | 1059.8 | 842.0 | |
| 8.44 | -3.00 | 4.69 | -3.00 | -19.51 | 337.56 | 10.56 | 202.45 | 0.4543 | 932.2 | 999999 | |
| 1.39 | -3.00 | 0.77 | -3.00 | -19.28 | 337.44 | 10.45 | 202.44 | 0.4504 | 1079.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.91 | 337.42 | 10.43 | 201.85 | 0.4592 | 1009.0 | 885.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -20.73 | 337.32 | 10.32 | 200.96 | 0.4704 | 488.0 | 335.2 | |
| 5.31 | 15.23 | 2.96 | 8.50 | -20.13 | 337.24 | 10.25 | 201.32 | 0.4614 | 897.6 | 590.8 | |
| 1.13 | 4.09 | 0.63 | 2.27 | -20.00 | 336.91 | 9.92 | 200.80 | 0.4576 | 692.0 | 558.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.34 | 336.84 | 9.84 | 201.21 | 0.4476 | 740.0 | 617.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.23 | 336.76 | 9.77 | 200.34 | 0.4601 | 665.0 | 479.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.63 | 336.69 | 9.70 | 200.69 | 0.4511 | 881.0 | 776.5 | |
| 0.00 | 1.74 | 0.00 | 0.98 | -20.92 | 336.74 | 9.75 | 199.75 | 0.4700 | 755.0 | 596.9 | |
| 1.39 | 25.41 | 0.76 | 13.98 | -18.51 | 336.56 | 9.57 | 201.39 | 0.4341 | 969.0 | 752.3 | |
| 0.00 | 3.22 | 0.00 | 1.78 | -19.40 | 336.52 | 9.53 | 200.54 | 0.4467 | 837.0 | 677.4 | |
| 1.57 | -14.00 | 0.86 | -14.00 | -18.71 | 336.45 | 9.45 | 200.98 | 0.4363 | 1049.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -19.17 | 336.47 | 9.48 | 200.64 | 0.4431 | 596.0 | 662.8 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -20.75 | 336.51 | 9.51 | 199.44 | 0.4664 | 562.0 | 529.4 | |
| 0.00 | 1.74 | 0.00 | 0.96 | -18.96 | 335.76 | 8.77 | 199.38 | 0.4363 | 864.0 | 667.5 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -18.65 | 335.04 | 8.05 | 198.13 | 0.4281 | 891.0 | 772.9 | |
| 3.48 | 4.26 | 1.91 | 2.34 | -18.95 | 334.93 | 7.94 | 197.67 | 0.4319 | 943.4 | 926.6 | |
| 0.00 | 2.96 | 0.00 | 1.62 | -18.78 | 334.67 | 7.67 | 197.25 | 0.4282 | 906.0 | 777.2 | |
| 1.57 | 10.96 | 0.86 | 6.04 | -19.40 | 334.66 | 7.67 | 196.80 | 0.4375 | 727.9 | 598.2 | |
| 0.26 | -23.00 | 0.14 | -23.00 | -19.50 | 334.54 | 7.55 | 196.47 | 0.4384 | 912.0 | 999999 | |
| 1.57 | -23.00 | 0.86 | -23.00 | -19.56 | 334.35 | 7.36 | 196.04 | 0.4386 | 582.3 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -19.13 | 334.02 | 7.02 | 195.62 | 0.4306 | 622.0 | 556.5 | |
| 1.48 | 1.74 | 0.83 | 0.98 | -22.32 | 334.04 | 7.04 | 193.76 | 0.4786 | -723.4 | -654.3 | |
| 0.00 | 2.87 | 0.00 | 1.62 | -22.52 | 333.92 | 6.92 | 193.43 | 0.4812 | -681.0 | -552.6 | |
| 0.00 | 2.35 | 0.00 | 1.32 | -21.75 | 333.81 | 6.82 | 193.65 | 0.4692 | -772.0 | -595.3 | |
| 0.00 | 1.83 | 0.00 | 1.03 | -22.29 | 333.77 | 6.78 | 193.29 | 0.4771 | -822.0 | -664.6 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -22.12 | 333.60 | 6.61 | 193.06 | 0.4740 | -749.0 | -672.8 | |
| 4.70 | 5.66 | 2.65 | 3.18 | -22.35 | 333.49 | 6.49 | 192.71 | 0.4771 | -807.9 | -743.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.31 | 333.14 | 6.14 | 193.09 | 0.4451 | -755.0 | -606.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -22.38 | 333.13 | 6.14 | 192.02 | 0.4764 | -648.0 | -513.3 | |
| 0.78 | 301.51 | 0.44 | 168.69 | -22.41 | 332.90 | 5.91 | 191.58 | 0.4761 | -692.8 | -380.2 | |
| 2.35 | -35.00 | 1.31 | -35.00 | -21.20 | 332.76 | 5.76 | 191.86 | 0.4574 | -906.8 | 999999 | |
| 11.40 | -35.00 | 6.31 | -35.00 | -20.70 | 332.71 | 5.71 | 192.00 | 0.4496 | -1046.3 | 999999 | |
| 51.17 | -35.00 | 28.65 | -35.00 | -21.97 | 332.37 | 5.37 | 190.74 | 0.4679 | -1203.7 | 999999 | |
| 0.00 | 3.39 | 0.00 | 1.89 | -21.32 | 331.32 | 4.32 | 188.91 | 0.4552 | -258.0 | -329.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -23.72 | 330.61 | 3.61 | 186.79 | 0.4903 | -647.0 | -519.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
