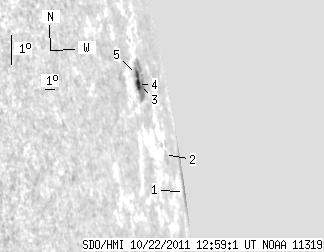

SDO HMI 2011-10-22 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.70 | 40.36 | 40.56 | 284.73 | 9.09 | 53.04 | 86.59 | 278.79 | 0.9957 | -353.5 | -295.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.65 | 14.70 | 26.34 | 209.04 | 8.02 | 55.14 | 88.69 | 277.87 | 0.9995 | -617.4 | -331.9 | |
| 0.00 | 0.52 | 0.00 | 2.01 | 9.67 | 49.75 | 83.31 | 279.09 | 0.9921 | -153.0 | -230.5 | |
| 1.48 | 25.14 | 4.25 | 73.68 | 12.02 | 47.37 | 80.92 | 281.31 | 0.9857 | -242.1 | -185.3 | |
| 2.18 | -3.00 | 6.03 | -3.00 | 12.05 | 47.02 | 80.57 | 281.32 | 0.9847 | 292.6 | 999999 | |
| 1.39 | -3.00 | 3.94 | -3.00 | 12.34 | 47.22 | 80.77 | 281.63 | 0.9852 | 250.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
