SDO HMI 2011-10-22 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.34 | 0.00 | 4.20 | -15.31 | 2.20 | 36.30 | 239.60 | 0.6643 | -388.0 | -393.1 | |
|
previous
or next observation for the same group /

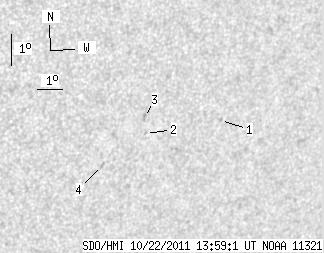

back to the solar disc SDO HMI 2011-10-22 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.72 | -14.97 | 5.13 | 39.24 | 241.90 | 0.6950 | 489.0 | 413.5 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -15.21 | 2.24 | 36.35 | 239.79 | 0.6641 | -662.0 | -549.4 | |
| 0.00 | 2.17 | 0.00 | 1.43 | -14.70 | 2.10 | 36.21 | 240.40 | 0.6595 | -694.0 | -629.3 | |
| 0.00 | 2.17 | 0.00 | 1.42 | -16.15 | 0.79 | 34.89 | 237.53 | 0.6536 | -685.0 | -493.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
