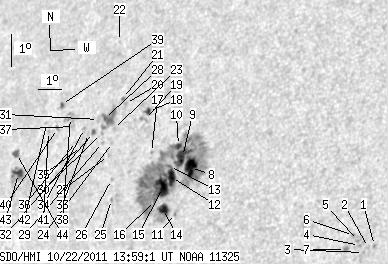

SDO HMI 2011-10-22 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.72 | 375.76 | 59.06 | 273.52 | 15.50 | 279.21 | -46.69 | 73.67 | 0.7321 | -289.3 | -63.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.81 | 13.68 | 288.76 | -37.13 | 74.38 | 0.6113 | -828.0 | -720.5 | |
| 0.00 | 1.48 | 0.00 | 0.93 | 13.61 | 288.54 | -37.35 | 74.55 | 0.6140 | -698.0 | -558.4 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 13.44 | 288.38 | -37.52 | 74.85 | 0.6159 | -784.0 | -632.8 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 13.65 | 288.19 | -37.71 | 74.58 | 0.6189 | -751.0 | -645.3 | |
| 0.00 | 1.91 | 0.00 | 1.21 | 13.79 | 288.12 | -37.78 | 74.36 | 0.6201 | -728.0 | -612.5 | |
| 0.00 | 1.65 | 0.00 | 1.04 | 13.93 | 287.90 | -38.00 | 74.19 | 0.6233 | -586.0 | -616.0 | |
| 0.00 | 3.04 | 0.00 | 1.93 | 13.50 | 287.67 | -38.23 | 74.94 | 0.6254 | -795.0 | -624.9 | |
| 13.40 | 258.80 | 9.46 | 185.20 | 15.58 | 280.77 | -45.13 | 73.31 | 0.7150 | -1057.6 | -164.3 | |
| 15.14 | -8.00 | 10.78 | -8.00 | 15.89 | 280.32 | -45.57 | 72.97 | 0.7207 | -697.7 | 999999 | |
| 2.96 | -8.00 | 2.12 | -8.00 | 16.20 | 280.05 | -45.85 | 72.58 | 0.7244 | -479.0 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.91 | 14.16 | 280.49 | -45.41 | 75.33 | 0.7161 | -582.0 | -431.4 | |
| 8.09 | -8.00 | 5.78 | -8.00 | 15.22 | 280.02 | -45.87 | 73.93 | 0.7231 | -840.7 | 999999 | |
| 0.26 | -8.00 | 0.19 | -8.00 | 15.55 | 279.84 | -46.05 | 73.52 | 0.7257 | -293.7 | 999999 | |
| 7.39 | 19.14 | 5.28 | 13.67 | 14.24 | 279.94 | -45.96 | 75.30 | 0.7227 | -807.6 | -418.2 | |
| 15.83 | -8.00 | 11.37 | -8.00 | 14.90 | 279.71 | -46.18 | 74.43 | 0.7262 | -677.5 | 999999 | |
| 0.26 | -8.00 | 0.19 | -8.00 | 14.49 | 279.51 | -46.38 | 75.02 | 0.7279 | -498.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.95 | 15.92 | 278.92 | -46.98 | 73.18 | 0.7368 | -399.0 | -295.5 | |
| 2.87 | 3.91 | 2.12 | 2.90 | 17.14 | 278.38 | -47.51 | 71.64 | 0.7448 | -485.0 | -267.2 | |
| 0.00 | 3.39 | 0.00 | 2.51 | 16.89 | 278.28 | -47.61 | 71.99 | 0.7455 | -507.0 | -417.3 | |
| 0.00 | 1.83 | 0.00 | 1.38 | 17.31 | 277.25 | -48.65 | 71.62 | 0.7575 | 697.0 | 598.0 | |
| 1.13 | 1.30 | 0.86 | 0.99 | 17.45 | 277.05 | -48.84 | 71.47 | 0.7598 | 700.8 | 705.0 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 19.16 | 276.25 | -49.65 | 69.41 | 0.7713 | 567.0 | 483.4 | |
| 0.00 | 0.96 | 0.00 | 0.73 | 16.52 | 276.95 | -48.95 | 72.71 | 0.7595 | -356.0 | -261.0 | |
| 0.00 | 1.48 | 0.00 | 1.12 | 16.10 | 277.05 | -48.85 | 73.25 | 0.7579 | 380.0 | 438.8 | |
| 0.00 | 0.96 | 0.00 | 0.71 | 14.39 | 277.53 | -48.37 | 75.44 | 0.7503 | 612.0 | 510.0 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 14.99 | 277.35 | -48.54 | 74.67 | 0.7530 | 699.0 | 484.0 | |
| 0.00 | 0.87 | 0.00 | 0.66 | 15.70 | 276.99 | -48.91 | 73.79 | 0.7579 | 528.0 | 486.7 | |
| 0.35 | 18.44 | 0.27 | 14.08 | 16.79 | 276.42 | -49.47 | 72.44 | 0.7655 | 721.8 | 377.9 | |
| 0.00 | 1.22 | 0.00 | 0.93 | 16.07 | 276.58 | -49.32 | 73.36 | 0.7629 | 576.0 | 520.1 | |
| 0.00 | 1.39 | 0.00 | 1.07 | 16.33 | 276.44 | -49.46 | 73.04 | 0.7647 | 725.0 | 631.7 | |
| 0.00 | 1.91 | 0.00 | 1.48 | 16.74 | 276.15 | -49.74 | 72.55 | 0.7684 | 485.0 | 487.2 | |
| 2.09 | 2.70 | 1.61 | 2.08 | 16.34 | 276.05 | -49.84 | 73.09 | 0.7689 | 666.6 | 604.3 | |
| 0.00 | 1.30 | 0.00 | 1.01 | 16.29 | 275.83 | -50.07 | 73.18 | 0.7712 | 568.0 | 509.9 | |
| 0.00 | 1.39 | 0.00 | 1.08 | 16.43 | 275.58 | -50.31 | 73.04 | 0.7740 | 736.0 | 599.7 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 15.88 | 275.63 | -50.27 | 73.74 | 0.7728 | 496.0 | 425.3 | |
| 0.00 | 0.96 | 0.00 | 0.75 | 16.01 | 275.34 | -50.56 | 73.61 | 0.7760 | 520.0 | 442.5 | |
| 0.00 | 1.39 | 0.00 | 1.10 | 16.45 | 275.03 | -50.86 | 73.09 | 0.7798 | 381.0 | 448.9 | |
| 0.00 | 6.61 | 0.00 | 5.24 | 16.71 | 274.79 | -51.11 | 72.80 | 0.7827 | 616.0 | 546.7 | |
| 1.30 | 2.09 | 1.05 | 1.67 | 17.07 | 274.20 | -51.70 | 72.43 | 0.7892 | 527.8 | 577.8 | |
| 0.00 | 2.09 | 0.00 | 1.67 | 16.34 | 274.28 | -51.62 | 73.34 | 0.7875 | 637.0 | 524.7 | |
| 0.00 | 1.65 | 0.00 | 1.33 | 16.21 | 273.87 | -52.03 | 73.55 | 0.7916 | 605.0 | 489.6 | |
| 0.00 | 1.30 | 0.00 | 1.06 | 16.45 | 273.68 | -52.22 | 73.28 | 0.7938 | 318.0 | 279.5 | |
| 5.74 | 16.35 | 4.73 | 13.47 | 14.85 | 272.83 | -53.07 | 75.37 | 0.8008 | 682.8 | 379.3 | |
| 3.91 | 4.18 | 3.25 | 3.47 | 15.44 | 272.51 | -53.39 | 74.67 | 0.8045 | 456.6 | 419.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
