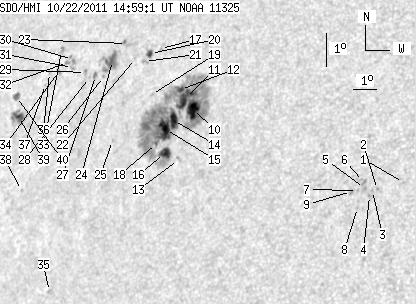

SDO HMI 2011-10-22 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.68 | 384.63 | 57.79 | 276.48 | 15.45 | 279.40 | -45.95 | 73.62 | 0.7237 | -309.2 | -99.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.43 | 13.91 | 289.66 | -35.68 | 73.61 | 0.5924 | -758.0 | -657.2 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 13.64 | 288.72 | -36.63 | 74.30 | 0.6045 | -817.0 | -764.9 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 13.60 | 288.54 | -36.81 | 74.42 | 0.6068 | -773.0 | -647.0 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 13.45 | 288.45 | -36.90 | 74.69 | 0.6076 | -731.0 | -691.0 | |
| 0.00 | 2.00 | 0.00 | 1.25 | 13.65 | 288.22 | -37.13 | 74.43 | 0.6111 | -832.0 | -682.4 | |
| 0.00 | 3.04 | 0.00 | 1.90 | 13.86 | 288.14 | -37.20 | 74.11 | 0.6126 | -693.0 | -624.0 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 13.57 | 287.96 | -37.38 | 74.61 | 0.6144 | -671.0 | -566.8 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 13.06 | 288.06 | -37.29 | 75.42 | 0.6121 | -559.0 | -446.0 | |
| 0.00 | 2.70 | 0.00 | 1.69 | 13.53 | 287.74 | -37.61 | 74.74 | 0.6173 | -790.0 | -627.8 | |
| 12.87 | 290.77 | 9.01 | 206.10 | 15.61 | 280.74 | -44.61 | 73.16 | 0.7090 | -1100.3 | -203.8 | |
| 15.66 | -10.00 | 11.04 | -10.00 | 15.92 | 280.34 | -45.01 | 72.81 | 0.7142 | -729.3 | 999999 | |
| 2.52 | -10.00 | 1.79 | -10.00 | 16.18 | 280.05 | -45.30 | 72.51 | 0.7181 | -482.7 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.58 | 14.07 | 280.53 | -44.82 | 75.36 | 0.7090 | -616.0 | -521.5 | |
| 8.61 | -10.00 | 6.10 | -10.00 | 15.23 | 280.01 | -45.34 | 73.83 | 0.7169 | -846.5 | 999999 | |
| 9.31 | -10.00 | 6.62 | -10.00 | 14.94 | 279.73 | -45.61 | 74.29 | 0.7196 | -784.9 | 999999 | |
| 8.61 | -10.00 | 6.09 | -10.00 | 14.21 | 279.88 | -45.46 | 75.26 | 0.7168 | -810.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 17.36 | 278.78 | -46.57 | 71.16 | 0.7347 | 317.0 | 244.8 | |
| 1.22 | -10.00 | 0.87 | -10.00 | 14.49 | 279.45 | -45.89 | 74.95 | 0.7222 | -469.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 15.95 | 278.82 | -46.53 | 73.06 | 0.7318 | -398.0 | -344.0 | |
| 2.70 | 4.35 | 1.97 | 3.19 | 17.18 | 278.38 | -46.97 | 71.48 | 0.7388 | -516.0 | -368.2 | |
| 0.00 | 2.70 | 0.00 | 1.98 | 16.92 | 278.19 | -47.16 | 71.87 | 0.7405 | -412.0 | -402.7 | |
| 0.00 | 1.13 | 0.00 | 0.84 | 16.98 | 277.75 | -47.59 | 71.87 | 0.7454 | 262.0 | 288.5 | |
| 0.00 | 4.26 | 0.00 | 3.19 | 17.40 | 277.18 | -48.16 | 71.41 | 0.7524 | 589.0 | 625.8 | |
| 8.61 | 22.27 | 6.50 | 16.83 | 16.85 | 276.72 | -48.63 | 72.22 | 0.7566 | 318.7 | 380.1 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 14.45 | 277.47 | -47.87 | 75.29 | 0.7449 | 596.0 | 544.9 | |
| 0.00 | 1.04 | 0.00 | 0.79 | 16.34 | 276.46 | -48.88 | 72.93 | 0.7585 | 740.0 | 654.8 | |
| 0.00 | 2.61 | 0.00 | 1.99 | 16.35 | 276.08 | -49.27 | 72.99 | 0.7627 | 746.0 | 616.4 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 16.27 | 275.82 | -49.53 | 73.13 | 0.7654 | 615.0 | 546.9 | |
| 0.00 | 2.35 | 0.00 | 1.81 | 16.40 | 275.58 | -49.77 | 72.99 | 0.7682 | 757.0 | 567.9 | |
| 0.00 | 2.52 | 0.00 | 1.97 | 16.75 | 274.82 | -50.53 | 72.66 | 0.7767 | 628.0 | 584.8 | |
| 0.00 | 2.09 | 0.00 | 1.63 | 16.51 | 274.91 | -50.44 | 72.95 | 0.7754 | 698.0 | 579.9 | |
| 0.00 | 1.91 | 0.00 | 1.50 | 16.64 | 274.61 | -50.73 | 72.83 | 0.7787 | 648.0 | 554.7 | |
| 0.00 | 2.87 | 0.00 | 2.28 | 16.98 | 274.19 | -51.16 | 72.46 | 0.7835 | 686.0 | 542.4 | |
| 0.00 | 2.44 | 0.00 | 1.92 | 16.34 | 274.28 | -51.07 | 73.26 | 0.7818 | 728.0 | 536.8 | |
| 0.00 | 1.57 | 0.00 | 1.19 | 9.76 | 275.70 | -49.65 | 81.68 | 0.7614 | 462.0 | 320.2 | |
| 0.00 | 1.30 | 0.00 | 1.04 | 16.28 | 273.85 | -51.50 | 73.39 | 0.7862 | 490.0 | 446.1 | |
| 0.00 | 0.78 | 0.00 | 0.62 | 15.91 | 273.78 | -51.56 | 73.87 | 0.7864 | 531.0 | 476.0 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 12.67 | 273.64 | -51.71 | 78.02 | 0.7851 | 571.0 | 478.5 | |
| 6.18 | 13.31 | 5.02 | 10.84 | 14.86 | 272.79 | -52.56 | 75.31 | 0.7956 | 670.3 | 423.6 | |
| 3.39 | 4.26 | 2.78 | 3.49 | 15.45 | 272.48 | -52.87 | 74.61 | 0.7993 | 454.0 | 406.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
