SDO HMI 2011-10-22 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.99 | 399.98 | 62.83 | 281.38 | 15.55 | 279.57 | -44.68 | 73.24 | 0.7088 | -257.5 | -116.8 | |
|
previous
or next observation for the same group /

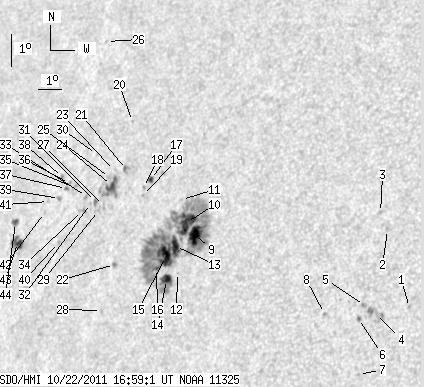

back to the solar disc SDO HMI 2011-10-22 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.63 | 13.93 | 289.66 | -34.59 | 73.23 | 0.5776 | -740.0 | -677.2 | |
| 0.00 | 1.48 | 0.00 | 0.91 | 16.24 | 288.38 | -35.86 | 69.83 | 0.6015 | -603.0 | -495.9 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 16.74 | 288.00 | -36.24 | 69.16 | 0.6080 | -652.0 | -537.9 | |
| 0.00 | 13.13 | 0.00 | 8.07 | 13.66 | 288.42 | -35.82 | 74.06 | 0.5937 | -647.0 | -684.0 | |
| 0.00 | 2.35 | 0.00 | 1.45 | 13.90 | 287.96 | -36.28 | 73.78 | 0.6005 | -709.0 | -618.3 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 13.50 | 287.80 | -36.44 | 74.49 | 0.6017 | -734.0 | -613.1 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 11.83 | 288.08 | -36.16 | 77.21 | 0.5945 | -773.0 | -629.8 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 13.58 | 286.48 | -37.77 | 74.69 | 0.6195 | -549.0 | -495.5 | |
| 13.48 | 274.19 | 9.27 | 190.89 | 15.65 | 280.71 | -43.53 | 72.89 | 0.6963 | -1144.6 | -201.2 | |
| 20.52 | -9.00 | 14.23 | -9.00 | 15.99 | 280.28 | -43.97 | 72.50 | 0.7021 | -744.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 16.67 | 279.86 | -44.38 | 71.64 | 0.7083 | -377.0 | -315.4 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 14.46 | 280.29 | -43.95 | 74.66 | 0.6993 | -708.0 | -572.6 | |
| 10.35 | -9.00 | 7.19 | -9.00 | 15.24 | 280.00 | -44.24 | 73.62 | 0.7040 | -866.7 | 999999 | |
| 7.65 | 20.78 | 5.32 | 14.45 | 14.22 | 279.88 | -44.37 | 75.07 | 0.7038 | -851.6 | -392.4 | |
| 10.52 | -9.00 | 7.35 | -9.00 | 14.91 | 279.66 | -44.59 | 74.14 | 0.7075 | -793.2 | 999999 | |
| 1.30 | -9.00 | 0.91 | -9.00 | 14.52 | 279.36 | -44.88 | 74.73 | 0.7104 | -455.4 | 999999 | |
| 2.26 | 3.74 | 1.62 | 2.69 | 17.18 | 278.33 | -45.91 | 71.26 | 0.7270 | -587.6 | -396.9 | |
| 0.00 | 1.39 | 0.00 | 1.00 | 16.92 | 278.10 | -46.15 | 71.66 | 0.7291 | -397.0 | -306.6 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 16.68 | 278.13 | -46.11 | 71.99 | 0.7283 | -407.0 | -311.3 | |
| 0.00 | 1.04 | 0.00 | 0.77 | 18.88 | 276.92 | -47.33 | 69.29 | 0.7461 | 638.0 | 516.5 | |
| 0.00 | 3.91 | 0.00 | 2.87 | 17.41 | 277.16 | -47.08 | 71.19 | 0.7406 | 605.0 | 692.4 | |
| 0.00 | 1.83 | 0.00 | 1.32 | 14.53 | 277.50 | -46.74 | 75.03 | 0.7321 | 819.0 | 691.2 | |
| 0.00 | 0.43 | 0.00 | 0.32 | 17.35 | 276.63 | -47.62 | 71.38 | 0.7463 | 646.0 | 605.4 | |
| 7.91 | 20.61 | 5.86 | 15.25 | 16.89 | 276.64 | -47.60 | 71.99 | 0.7454 | 395.8 | 313.9 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 17.12 | 276.47 | -47.77 | 71.71 | 0.7477 | 483.0 | 536.2 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 21.23 | 274.69 | -49.55 | 66.75 | 0.7744 | 455.0 | 410.6 | |
| 0.00 | 2.26 | 0.00 | 1.67 | 16.26 | 276.48 | -47.77 | 72.85 | 0.7462 | 659.0 | 574.8 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 13.11 | 277.29 | -46.96 | 76.98 | 0.7329 | 631.0 | 539.8 | |
| 0.00 | 0.61 | 0.00 | 0.45 | 16.10 | 276.30 | -47.95 | 73.10 | 0.7479 | 590.0 | 531.7 | |
| 0.00 | 0.43 | 0.00 | 0.33 | 17.77 | 275.63 | -48.62 | 71.01 | 0.7579 | 560.0 | 487.4 | |
| 0.61 | 3.39 | 0.45 | 2.53 | 16.36 | 276.07 | -48.17 | 72.80 | 0.7508 | 745.4 | 586.3 | |
| 0.00 | 0.96 | 0.00 | 0.72 | 16.28 | 275.86 | -48.38 | 72.93 | 0.7530 | 660.0 | 551.5 | |
| 0.00 | 2.52 | 0.00 | 1.90 | 16.48 | 275.61 | -48.64 | 72.71 | 0.7561 | 633.0 | 554.8 | |
| 0.00 | 2.87 | 0.00 | 2.16 | 16.05 | 275.56 | -48.68 | 73.29 | 0.7559 | 632.0 | 542.8 | |
| 0.00 | 2.43 | 0.00 | 1.86 | 16.71 | 274.96 | -49.29 | 72.51 | 0.7635 | 631.0 | 604.6 | |
| 0.00 | 1.48 | 0.00 | 1.14 | 16.82 | 274.68 | -49.57 | 72.42 | 0.7666 | 455.0 | 404.9 | |
| 1.13 | 1.91 | 0.87 | 1.47 | 16.66 | 274.59 | -49.65 | 72.65 | 0.7673 | 557.3 | 499.2 | |
| 0.00 | 1.91 | 0.00 | 1.48 | 16.97 | 274.28 | -49.96 | 72.28 | 0.7710 | 661.0 | 577.5 | |
| 0.00 | 2.43 | 0.00 | 1.88 | 16.33 | 274.37 | -49.88 | 73.10 | 0.7692 | 732.0 | 534.5 | |
| 0.00 | 1.30 | 0.00 | 1.00 | 15.01 | 274.76 | -49.49 | 74.76 | 0.7634 | 608.0 | 453.5 | |
| 0.00 | 1.22 | 0.00 | 0.95 | 16.21 | 273.87 | -50.37 | 73.33 | 0.7743 | 632.0 | 491.0 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 15.86 | 273.80 | -50.45 | 73.78 | 0.7747 | 538.0 | 453.9 | |
| 8.61 | 11.83 | 6.84 | 9.40 | 14.88 | 272.80 | -51.44 | 75.17 | 0.7841 | 639.3 | 507.7 | |
| 3.65 | 4.96 | 2.92 | 3.97 | 15.47 | 272.50 | -51.75 | 74.46 | 0.7878 | 429.4 | 367.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
