SDO HMI 2011-10-22 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.01 | 453.79 | 61.77 | 255.06 | -21.22 | 333.42 | 9.18 | 198.51 | 0.4727 | -268.1 | -180.2 | |
|
previous
or next observation for the same group /

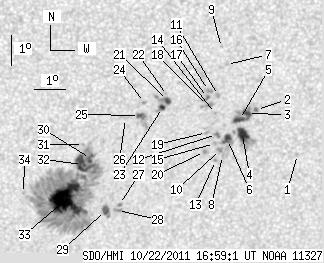

back to the solar disc SDO HMI 2011-10-22 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.90 | -20.71 | 339.63 | 15.39 | 209.70 | 0.5031 | 664.0 | 404.4 | |
| 1.65 | 1.91 | 0.93 | 1.07 | -19.19 | 338.14 | 13.90 | 208.85 | 0.4721 | 657.5 | 758.0 | |
| 3.39 | 17.13 | 1.90 | 9.61 | -19.31 | 337.86 | 13.62 | 208.23 | 0.4717 | 974.6 | 841.1 | |
| 10.09 | 24.09 | 5.69 | 13.61 | -20.00 | 337.76 | 13.51 | 207.33 | 0.4802 | 992.4 | 272.3 | |
| 4.96 | -3.00 | 2.78 | -3.00 | -19.50 | 337.62 | 13.37 | 207.60 | 0.4725 | 1014.3 | 999999 | |
| 4.44 | 11.91 | 2.50 | 6.72 | -20.15 | 337.28 | 13.04 | 206.36 | 0.4790 | 935.5 | 452.2 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -17.69 | 337.05 | 12.81 | 208.54 | 0.4440 | 854.0 | 580.7 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -20.68 | 337.16 | 12.92 | 205.64 | 0.4854 | 2.0 | 1.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -17.14 | 336.86 | 12.61 | 208.80 | 0.4349 | 766.0 | 596.5 | |
| 0.00 | 2.61 | 0.00 | 1.47 | -20.48 | 337.08 | 12.84 | 205.69 | 0.4821 | 670.0 | 585.9 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -18.70 | 336.87 | 12.63 | 207.11 | 0.4563 | 910.0 | 701.0 | |
| 0.00 | 2.78 | 0.00 | 1.56 | -19.98 | 336.91 | 12.66 | 205.88 | 0.4741 | 903.0 | 794.0 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -20.84 | 336.95 | 12.70 | 205.12 | 0.4861 | 681.0 | 532.5 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -19.29 | 336.82 | 12.58 | 206.41 | 0.4640 | 820.0 | 652.0 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -20.28 | 336.87 | 12.62 | 205.52 | 0.4779 | 745.0 | 583.0 | |
| 0.00 | 2.96 | 0.00 | 1.64 | -18.53 | 336.54 | 12.29 | 206.67 | 0.4516 | 1016.0 | 870.6 | |
| 1.30 | 2.96 | 0.72 | 1.64 | -18.76 | 336.52 | 12.28 | 206.41 | 0.4547 | 987.3 | 836.0 | |
| 0.00 | 5.57 | 0.00 | 3.10 | -19.02 | 336.54 | 12.30 | 206.17 | 0.4584 | 1080.0 | 750.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -19.91 | 336.58 | 12.33 | 205.36 | 0.4709 | 591.0 | 516.2 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -20.53 | 336.56 | 12.32 | 204.74 | 0.4795 | 737.0 | 615.0 | |
| 3.22 | 13.83 | 1.78 | 7.65 | -18.83 | 335.24 | 11.00 | 203.92 | 0.4472 | 1005.8 | 853.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.67 | 335.23 | 10.99 | 204.05 | 0.4448 | 607.0 | 631.4 | |
| 2.43 | -21.00 | 1.35 | -21.00 | -19.06 | 335.09 | 10.85 | 203.42 | 0.4495 | 941.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.91 | -18.88 | 334.51 | 10.26 | 202.44 | 0.4434 | 920.0 | 753.7 | |
| 2.26 | 10.09 | 1.25 | 5.59 | -19.31 | 334.37 | 10.13 | 201.80 | 0.4487 | 830.5 | 479.5 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -19.40 | 333.93 | 9.68 | 200.86 | 0.4475 | 745.0 | 582.1 | |
| 0.00 | 1.74 | 0.00 | 0.99 | -22.25 | 333.92 | 9.68 | 198.64 | 0.4888 | -738.0 | -704.5 | |
| 0.00 | 3.30 | 0.00 | 1.88 | -22.46 | 333.87 | 9.63 | 198.40 | 0.4914 | -823.0 | -624.6 | |
| 4.87 | 7.04 | 2.76 | 4.00 | -22.45 | 333.48 | 9.23 | 197.71 | 0.4895 | -796.1 | -550.9 | |
| 3.22 | 327.07 | 1.79 | 184.02 | -20.70 | 332.88 | 8.64 | 197.81 | 0.4612 | -943.5 | -401.3 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -20.23 | 332.63 | 8.38 | 197.65 | 0.4531 | -866.0 | -683.4 | |
| 15.48 | -30.00 | 8.64 | -30.00 | -20.90 | 332.63 | 8.39 | 197.20 | 0.4630 | -1074.1 | 999999 | |
| 52.70 | -30.00 | 29.68 | -30.00 | -22.06 | 332.15 | 7.90 | 195.53 | 0.4780 | -1235.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -21.84 | 330.78 | 6.53 | 193.05 | 0.4695 | -711.0 | -504.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
