SDO HMI 2011-10-22 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.93 | 413.42 | 122.56 | 785.91 | 7.69 | 249.05 | -75.19 | 83.47 | 0.9617 | -153.9 | -53.8 | |
|
previous
or next observation for the same group /

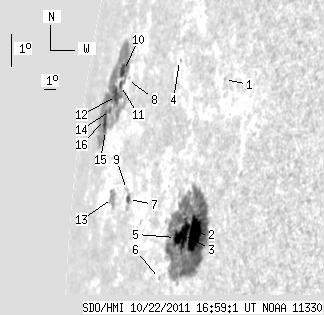

back to the solar disc SDO HMI 2011-10-22 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 1.15 | 10.94 | 255.63 | -68.62 | 80.32 | 0.9291 | -285.0 | -264.5 | |
| 24.52 | 258.89 | 33.80 | 367.40 | 6.23 | 254.94 | -69.30 | 85.35 | 0.9346 | -767.0 | -151.7 | |
| 15.13 | -2.00 | 21.78 | -2.00 | 6.09 | 254.01 | -70.23 | 85.44 | 0.9402 | -321.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 1.13 | 11.14 | 251.29 | -72.95 | 79.97 | 0.9539 | 83.0 | -8.4 | |
| 2.70 | -2.00 | 4.01 | -2.00 | 5.97 | 253.32 | -70.93 | 85.53 | 0.9443 | 185.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 2.07 | 4.63 | 252.16 | -72.09 | 86.85 | 0.9512 | 272.0 | 332.5 | |
| 2.70 | 6.70 | 5.46 | 13.54 | 6.64 | 247.97 | -76.27 | 84.47 | 0.9705 | 345.3 | 372.7 | |
| 0.00 | 0.43 | 0.00 | 1.03 | 10.05 | 245.53 | -78.71 | 80.82 | 0.9791 | 420.0 | 466.4 | |
| 0.00 | 2.09 | 0.00 | 4.34 | 6.91 | 247.58 | -76.67 | 84.17 | 0.9721 | 408.0 | 338.7 | |
| 4.09 | 133.05 | 10.51 | 372.94 | 10.25 | 244.68 | -79.56 | 80.57 | 0.9819 | 410.8 | -5.1 | |
| 2.78 | -10.00 | 7.12 | -10.00 | 9.79 | 244.62 | -79.62 | 81.03 | 0.9822 | 360.5 | 999999 | |
| 6.70 | -10.00 | 17.82 | -10.00 | 9.42 | 244.27 | -79.97 | 81.38 | 0.9834 | 408.8 | 999999 | |
| 0.00 | 9.39 | 0.00 | 22.31 | 6.48 | 245.81 | -78.43 | 84.49 | 0.9789 | 441.0 | 326.1 | |
| 1.22 | -10.00 | 3.45 | -10.00 | 8.94 | 243.63 | -80.62 | 81.83 | 0.9854 | 152.4 | 999999 | |
| 1.22 | -10.00 | 3.61 | -10.00 | 8.30 | 243.27 | -80.97 | 82.45 | 0.9866 | 171.5 | 999999 | |
| 4.87 | -10.00 | 15.00 | -10.00 | 8.59 | 242.78 | -81.46 | 82.13 | 0.9879 | -409.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
