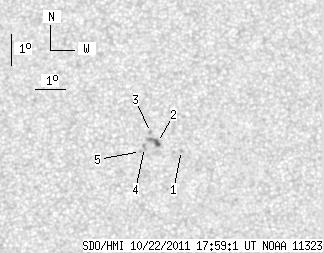

SDO HMI 2011-10-22 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.87 | 12.87 | 1.52 | 6.80 | 24.99 | 329.58 | 5.89 | 344.60 | 0.3517 | -811.3 | -690.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.69 | 24.77 | 330.43 | 6.74 | 342.30 | 0.3522 | -743.0 | -596.0 | |
| 2.87 | 6.70 | 1.52 | 3.54 | 25.03 | 329.65 | 5.96 | 344.45 | 0.3526 | -895.2 | -787.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 25.35 | 329.44 | 5.74 | 345.24 | 0.3567 | -752.0 | -604.9 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 24.88 | 329.22 | 5.52 | 345.42 | 0.3483 | -807.0 | -669.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 24.75 | 329.08 | 5.39 | 345.66 | 0.3457 | -816.0 | -605.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
