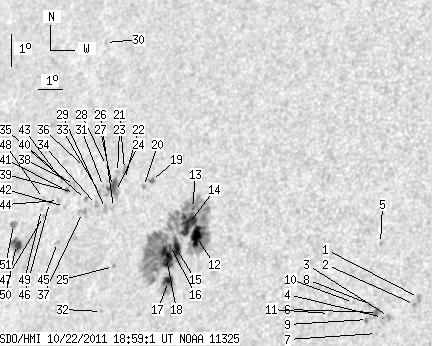

SDO HMI 2011-10-22 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.69 | 400.35 | 56.33 | 277.18 | 15.57 | 279.48 | -43.66 | 73.00 | 0.6968 | -232.8 | -109.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.22 | 0.00 | 1.92 | 14.26 | 289.72 | -33.42 | 72.27 | 0.5626 | -742.0 | -657.8 | |
| 0.00 | 1.57 | 0.00 | 0.94 | 14.04 | 289.61 | -33.53 | 72.69 | 0.5634 | -878.0 | -806.8 | |
| 0.00 | 2.00 | 0.00 | 1.21 | 13.64 | 288.71 | -34.43 | 73.69 | 0.5746 | -883.0 | -749.2 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 13.59 | 288.50 | -34.64 | 73.82 | 0.5775 | -876.0 | -771.2 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 15.82 | 288.01 | -35.13 | 70.25 | 0.5904 | -680.0 | -571.7 | |
| 0.00 | 4.26 | 0.00 | 2.59 | 13.73 | 288.29 | -34.85 | 73.65 | 0.5807 | -868.0 | -766.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 13.10 | 288.35 | -34.79 | 74.71 | 0.5783 | -617.0 | -449.4 | |
| 0.00 | 2.78 | 0.00 | 1.70 | 13.96 | 287.98 | -35.16 | 73.36 | 0.5854 | -673.0 | -595.2 | |
| 0.00 | 3.48 | 0.00 | 2.12 | 13.51 | 287.95 | -35.19 | 74.14 | 0.5848 | -694.0 | -625.0 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 13.99 | 287.34 | -35.80 | 73.51 | 0.5943 | -593.0 | -450.4 | |
| 0.00 | 1.65 | 0.00 | 1.03 | 13.61 | 286.49 | -36.65 | 74.37 | 0.6047 | -560.0 | -457.1 | |
| 13.48 | 274.53 | 9.11 | 187.92 | 15.62 | 280.72 | -42.42 | 72.68 | 0.6828 | -1152.4 | -214.7 | |
| 0.78 | -12.00 | 0.53 | -12.00 | 16.45 | 280.33 | -42.81 | 71.58 | 0.6893 | -513.2 | 999999 | |
| 18.26 | -12.00 | 12.44 | -12.00 | 15.99 | 280.29 | -42.85 | 72.25 | 0.6888 | -784.1 | 999999 | |
| 7.22 | -12.00 | 4.93 | -12.00 | 15.21 | 279.98 | -43.16 | 73.44 | 0.6910 | -985.3 | 999999 | |
| 0.96 | -12.00 | 0.66 | -12.00 | 15.28 | 279.71 | -43.43 | 73.39 | 0.6944 | -495.1 | 999999 | |
| 7.30 | 18.26 | 4.99 | 12.47 | 14.20 | 279.89 | -43.25 | 74.91 | 0.6903 | -866.8 | -500.0 | |
| 11.74 | -12.00 | 8.06 | -12.00 | 14.91 | 279.63 | -43.51 | 73.93 | 0.6947 | -804.4 | 999999 | |
| 1.91 | 2.96 | 1.35 | 2.09 | 17.19 | 278.34 | -44.80 | 71.00 | 0.7143 | -676.5 | -498.2 | |
| 0.00 | 2.26 | 0.00 | 1.60 | 16.99 | 278.05 | -45.09 | 71.35 | 0.7172 | -407.0 | -318.8 | |
| 0.00 | 2.78 | 0.00 | 2.01 | 17.45 | 277.05 | -46.09 | 70.94 | 0.7295 | 867.0 | 764.4 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 17.14 | 277.15 | -45.99 | 71.33 | 0.7278 | 826.0 | 646.9 | |
| 0.00 | 1.48 | 0.00 | 1.07 | 17.33 | 276.77 | -46.37 | 71.15 | 0.7324 | 785.0 | 688.6 | |
| 1.22 | 17.39 | 0.88 | 12.60 | 16.76 | 276.86 | -46.27 | 71.91 | 0.7303 | -73.6 | 137.2 | |
| 0.00 | 1.30 | 0.00 | 0.93 | 14.50 | 277.43 | -45.71 | 74.90 | 0.7201 | 757.0 | 649.5 | |
| 0.00 | 0.96 | 0.00 | 0.69 | 16.27 | 276.93 | -46.21 | 72.56 | 0.7287 | 653.0 | 575.6 | |
| 8.43 | -24.00 | 6.12 | -24.00 | 16.90 | 276.68 | -46.46 | 71.76 | 0.7326 | 321.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 17.51 | 276.21 | -46.93 | 71.02 | 0.7391 | 657.0 | 562.5 | |
| 0.00 | 3.39 | 0.00 | 2.46 | 16.22 | 276.58 | -46.56 | 72.70 | 0.7326 | 691.0 | 616.3 | |
| 0.00 | 1.04 | 0.00 | 0.80 | 21.24 | 274.71 | -48.43 | 66.47 | 0.7629 | 530.0 | 413.1 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 16.87 | 276.28 | -46.86 | 71.87 | 0.7371 | 616.0 | 616.9 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 13.12 | 277.25 | -45.89 | 76.84 | 0.7204 | 654.0 | 547.2 | |
| 0.00 | 2.00 | 0.00 | 1.46 | 16.68 | 276.16 | -46.98 | 72.15 | 0.7381 | 586.0 | 563.5 | |
| 0.00 | 2.87 | 0.00 | 2.10 | 16.31 | 276.14 | -47.00 | 72.65 | 0.7377 | 762.0 | 697.2 | |
| 0.00 | 2.09 | 0.00 | 1.54 | 16.43 | 275.60 | -47.54 | 72.59 | 0.7440 | 784.0 | 630.7 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 17.39 | 275.23 | -47.91 | 71.38 | 0.7496 | 540.0 | 427.6 | |
| 0.00 | 5.57 | 0.00 | 4.10 | 16.03 | 275.59 | -47.55 | 73.13 | 0.7434 | 556.0 | 491.5 | |
| 0.00 | 2.26 | 0.00 | 1.69 | 16.85 | 274.95 | -48.19 | 72.15 | 0.7518 | 568.0 | 526.1 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 16.60 | 275.03 | -48.11 | 72.46 | 0.7505 | 689.0 | 556.2 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 16.83 | 274.72 | -48.42 | 72.21 | 0.7543 | 414.0 | 360.6 | |
| 1.39 | 1.91 | 1.05 | 1.44 | 16.64 | 274.64 | -48.50 | 72.48 | 0.7548 | 588.8 | 492.5 | |
| 0.00 | 1.57 | 0.00 | 1.17 | 16.15 | 274.71 | -48.43 | 73.11 | 0.7534 | 501.0 | 394.8 | |
| 0.00 | 2.26 | 0.00 | 1.71 | 16.95 | 274.29 | -48.85 | 72.12 | 0.7591 | 694.0 | 535.8 | |
| 0.00 | 1.48 | 0.00 | 1.12 | 16.31 | 274.37 | -48.77 | 72.95 | 0.7573 | 624.0 | 534.9 | |
| 0.00 | 1.83 | 0.00 | 1.37 | 15.05 | 274.73 | -48.41 | 74.56 | 0.7516 | 679.0 | 543.3 | |
| 0.00 | 1.91 | 0.00 | 1.46 | 16.23 | 273.97 | -49.17 | 73.13 | 0.7615 | 664.0 | 473.6 | |
| 0.00 | 1.39 | 0.00 | 1.06 | 15.79 | 273.83 | -49.31 | 73.72 | 0.7624 | 512.0 | 482.8 | |
| 0.00 | 1.30 | 0.00 | 1.00 | 16.33 | 273.65 | -49.49 | 73.05 | 0.7651 | 294.0 | 214.3 | |
| 0.00 | 0.52 | 0.00 | 0.40 | 15.99 | 273.67 | -49.47 | 73.48 | 0.7644 | 450.0 | 377.0 | |
| 8.00 | 11.83 | 6.21 | 9.18 | 14.86 | 272.83 | -50.31 | 75.06 | 0.7720 | 685.0 | 532.2 | |
| 0.00 | 4.43 | 0.00 | 3.47 | 15.45 | 272.49 | -50.65 | 74.34 | 0.7763 | 580.0 | 467.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
