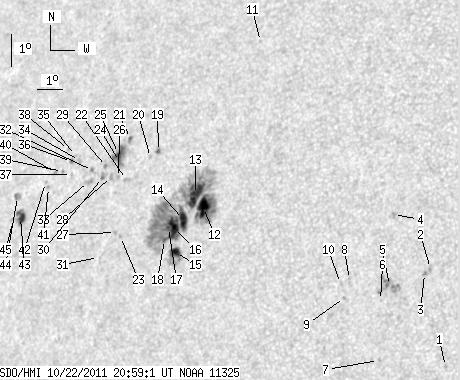

SDO HMI 2011-10-22 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.49 | 402.64 | 59.96 | 273.23 | 15.50 | 279.64 | -42.39 | 72.81 | 0.6813 | -313.3 | -129.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.86 | 11.34 | 290.71 | -31.32 | 76.90 | 0.5254 | -93.0 | -127.6 | |
| 0.00 | 2.17 | 0.00 | 1.28 | 14.25 | 289.76 | -32.28 | 71.85 | 0.5468 | -797.0 | -645.3 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 14.09 | 289.56 | -32.47 | 72.22 | 0.5490 | -911.0 | -763.7 | |
| 0.00 | 2.09 | 0.00 | 1.26 | 15.82 | 288.12 | -33.92 | 69.78 | 0.5743 | -700.0 | -562.3 | |
| 0.00 | 17.91 | 0.00 | 10.73 | 13.67 | 288.35 | -33.69 | 73.39 | 0.5646 | -473.0 | -694.8 | |
| 0.00 | 0.52 | 0.00 | 0.31 | 13.20 | 288.09 | -33.95 | 74.28 | 0.5669 | -520.0 | -394.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 11.40 | 288.28 | -33.75 | 77.40 | 0.5603 | -674.0 | -557.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 13.78 | 286.84 | -35.20 | 73.68 | 0.5855 | -515.0 | -481.0 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 13.23 | 286.74 | -35.29 | 74.63 | 0.5855 | -431.0 | -401.9 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 13.64 | 286.52 | -35.51 | 74.00 | 0.5895 | -622.0 | -479.9 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 20.80 | 281.60 | -40.44 | 64.60 | 0.6736 | -333.0 | -343.8 | |
| 14.00 | 267.33 | 9.31 | 179.99 | 15.62 | 280.70 | -41.33 | 72.42 | 0.6695 | -1178.4 | -213.6 | |
| 22.09 | -12.00 | 14.80 | -12.00 | 15.99 | 280.28 | -41.76 | 71.98 | 0.6756 | -802.8 | 999999 | |
| 10.09 | -12.00 | 6.78 | -12.00 | 15.21 | 279.97 | -42.06 | 73.20 | 0.6776 | -957.5 | 999999 | |
| 6.52 | 19.74 | 4.38 | 13.25 | 14.20 | 279.88 | -42.16 | 74.70 | 0.6769 | -914.9 | -486.7 | |
| 10.44 | -12.00 | 7.04 | -12.00 | 14.92 | 279.63 | -42.41 | 73.70 | 0.6813 | -849.8 | 999999 | |
| 0.35 | -12.00 | 0.24 | -12.00 | 14.94 | 279.41 | -42.62 | 73.72 | 0.6840 | -525.0 | 999999 | |
| 0.78 | -12.00 | 0.53 | -12.00 | 14.56 | 279.33 | -42.70 | 74.27 | 0.6843 | -502.1 | 999999 | |
| 1.57 | 1.91 | 1.08 | 1.32 | 17.20 | 278.37 | -43.66 | 70.72 | 0.7011 | -687.7 | -630.2 | |
| 0.00 | 1.48 | 0.00 | 1.03 | 16.99 | 278.08 | -43.95 | 71.08 | 0.7040 | -363.0 | -308.2 | |
| 1.22 | 2.78 | 0.86 | 1.97 | 17.51 | 277.05 | -44.99 | 70.60 | 0.7171 | 796.4 | 674.3 | |
| 0.00 | 3.13 | 0.00 | 2.20 | 16.27 | 277.25 | -44.79 | 72.28 | 0.7123 | -449.0 | -266.3 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 14.54 | 277.46 | -44.58 | 74.66 | 0.7068 | 806.0 | 676.5 | |
| 1.74 | 22.35 | 1.23 | 15.88 | 16.79 | 276.78 | -45.25 | 71.65 | 0.7187 | -82.5 | 291.0 | |
| 8.00 | -24.00 | 5.69 | -24.00 | 17.03 | 276.66 | -45.37 | 71.35 | 0.7205 | 415.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 1.05 | 16.31 | 276.88 | -45.15 | 72.30 | 0.7166 | 755.0 | 603.1 | |
| 0.00 | 1.39 | 0.00 | 0.98 | 14.65 | 277.21 | -44.82 | 74.55 | 0.7099 | 624.0 | 535.2 | |
| 0.00 | 2.87 | 0.00 | 2.04 | 16.32 | 276.57 | -45.47 | 72.35 | 0.7203 | 687.0 | 646.2 | |
| 0.00 | 2.43 | 0.00 | 1.74 | 16.60 | 276.26 | -45.78 | 72.02 | 0.7243 | 689.0 | 670.5 | |
| 1.30 | 3.91 | 0.93 | 2.80 | 16.26 | 276.18 | -45.85 | 72.50 | 0.7246 | 682.7 | 679.9 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 13.85 | 276.67 | -45.36 | 75.75 | 0.7151 | 272.0 | 315.0 | |
| 0.00 | 2.70 | 0.00 | 1.95 | 16.44 | 275.68 | -46.36 | 72.35 | 0.7307 | 726.0 | 626.3 | |
| 0.00 | 4.09 | 0.00 | 2.96 | 16.10 | 275.60 | -46.43 | 72.83 | 0.7309 | 595.0 | 586.1 | |
| 0.00 | 2.78 | 0.00 | 2.04 | 16.71 | 275.00 | -47.03 | 72.13 | 0.7387 | 688.0 | 610.8 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 16.84 | 274.77 | -47.26 | 71.98 | 0.7415 | 589.0 | 493.2 | |
| 1.65 | 2.09 | 1.22 | 1.54 | 16.65 | 274.65 | -47.38 | 72.26 | 0.7426 | 575.7 | 589.6 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 16.26 | 274.78 | -47.26 | 72.76 | 0.7405 | 593.0 | 442.5 | |
| 0.00 | 0.70 | 0.00 | 0.52 | 17.00 | 274.40 | -47.64 | 71.84 | 0.7460 | 533.0 | 377.2 | |
| 0.00 | 1.22 | 0.00 | 0.90 | 16.32 | 274.34 | -47.69 | 72.76 | 0.7455 | 700.0 | 560.3 | |
| 0.00 | 2.00 | 0.00 | 1.49 | 16.27 | 274.03 | -48.00 | 72.88 | 0.7488 | 776.0 | 534.3 | |
| 0.00 | 1.30 | 0.00 | 0.97 | 15.80 | 273.86 | -48.18 | 73.53 | 0.7500 | 635.0 | 563.8 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 15.94 | 273.67 | -48.36 | 73.37 | 0.7523 | 394.0 | 386.4 | |
| 7.74 | 13.22 | 5.87 | 10.03 | 14.82 | 272.85 | -49.19 | 74.98 | 0.7599 | 716.8 | 438.3 | |
| 0.00 | 4.26 | 0.00 | 3.26 | 15.43 | 272.51 | -49.53 | 74.21 | 0.7643 | 594.0 | 449.8 | |
| 0.00 | 1.65 | 0.00 | 1.26 | 14.73 | 272.54 | -49.49 | 75.13 | 0.7631 | -81.0 | -32.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
