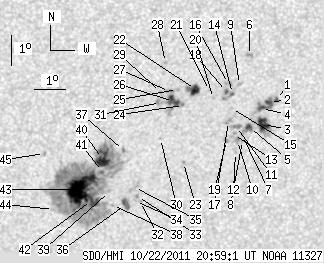

SDO HMI 2011-10-22 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.42 | 465.88 | 57.92 | 263.65 | -21.18 | 333.34 | 11.30 | 202.39 | 0.4835 | -160.4 | -196.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 18.26 | 0.74 | 10.36 | -19.18 | 338.16 | 16.12 | 212.56 | 0.4894 | 717.5 | 748.9 | |
| 2.17 | -1.00 | 1.23 | -1.00 | -19.27 | 337.94 | 15.90 | 212.10 | 0.4888 | 995.7 | 999999 | |
| 10.61 | 20.26 | 6.05 | 11.56 | -19.99 | 337.81 | 15.78 | 211.09 | 0.4969 | 926.0 | 396.4 | |
| 3.04 | -1.00 | 1.73 | -1.00 | -19.46 | 337.69 | 15.66 | 211.49 | 0.4893 | 969.4 | 999999 | |
| 3.48 | 6.26 | 1.98 | 3.56 | -20.08 | 337.36 | 15.33 | 210.27 | 0.4946 | 901.2 | 667.4 | |
| 0.00 | 2.87 | 0.00 | 1.60 | -17.72 | 337.14 | 15.11 | 212.62 | 0.4624 | 840.0 | 734.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.34 | 337.16 | 15.12 | 209.66 | 0.4964 | 568.0 | 505.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.51 | 337.17 | 15.14 | 209.51 | 0.4986 | 304.0 | 318.4 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -18.66 | 336.90 | 14.86 | 211.09 | 0.4726 | 785.0 | 597.6 | |
| 0.00 | 3.04 | 0.00 | 1.74 | -20.50 | 337.01 | 14.97 | 209.25 | 0.4973 | 561.0 | 554.3 | |
| 0.00 | 4.70 | 0.00 | 2.67 | -20.04 | 336.93 | 14.89 | 209.61 | 0.4907 | 876.0 | 714.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -20.90 | 336.98 | 14.95 | 208.79 | 0.5023 | 508.0 | 409.0 | |
| 0.00 | 2.70 | 0.00 | 1.53 | -20.30 | 336.86 | 14.82 | 209.21 | 0.4936 | 691.0 | 572.9 | |
| 1.04 | 6.87 | 0.59 | 3.86 | -18.95 | 336.70 | 14.66 | 210.42 | 0.4747 | 760.9 | 722.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -19.44 | 336.71 | 14.67 | 209.90 | 0.4812 | 674.0 | 462.5 | |
| 0.00 | 3.13 | 0.00 | 1.75 | -18.62 | 336.54 | 14.50 | 210.52 | 0.4692 | 969.0 | 893.2 | |
| 0.00 | 3.48 | 0.00 | 1.97 | -19.86 | 336.65 | 14.62 | 209.34 | 0.4864 | 736.0 | 703.6 | |
| 1.39 | -14.00 | 0.78 | -14.00 | -18.88 | 336.49 | 14.46 | 210.16 | 0.4722 | 1057.2 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.04 | -20.49 | 336.65 | 14.61 | 208.67 | 0.4946 | 763.0 | 646.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -19.10 | 336.09 | 14.06 | 209.22 | 0.4721 | 893.0 | 656.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -18.83 | 335.94 | 13.90 | 209.25 | 0.4674 | 785.0 | 590.7 | |
| 6.35 | 10.09 | 3.54 | 5.63 | -18.79 | 335.48 | 13.45 | 208.49 | 0.4634 | 1037.1 | 943.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -21.19 | 335.30 | 13.26 | 205.74 | 0.4945 | -905.0 | -725.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -19.30 | 335.13 | 13.10 | 207.33 | 0.4679 | 604.0 | 598.3 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -18.77 | 334.90 | 12.86 | 207.46 | 0.4590 | 904.0 | 741.7 | |
| 7.48 | 14.78 | 4.18 | 8.26 | -19.16 | 334.80 | 12.76 | 206.87 | 0.4636 | 941.1 | 351.6 | |
| 0.00 | 3.13 | 0.00 | 1.74 | -18.83 | 334.64 | 12.61 | 206.93 | 0.4580 | 1024.0 | 795.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -17.89 | 334.44 | 12.41 | 207.58 | 0.4436 | 812.0 | 667.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -18.86 | 334.35 | 12.32 | 206.38 | 0.4564 | 821.0 | 656.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -20.38 | 334.47 | 12.44 | 205.10 | 0.4780 | 501.0 | 325.0 | |
| 0.00 | 4.00 | 0.00 | 2.23 | -19.19 | 334.38 | 12.34 | 206.09 | 0.4610 | 701.0 | 690.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -22.47 | 334.00 | 11.96 | 202.43 | 0.5040 | -568.0 | -472.1 | |
| 0.00 | 1.57 | 0.00 | 0.89 | -22.30 | 333.88 | 11.85 | 202.38 | 0.5009 | -888.0 | -734.4 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -22.47 | 333.83 | 11.80 | 202.16 | 0.5030 | -642.0 | -597.0 | |
| 0.00 | 5.22 | 0.00 | 2.97 | -21.99 | 333.76 | 11.72 | 202.42 | 0.4960 | -526.0 | -577.9 | |
| 5.65 | 6.87 | 3.23 | 3.93 | -22.56 | 333.51 | 11.47 | 201.54 | 0.5025 | -707.7 | -562.9 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -20.75 | 333.30 | 11.26 | 202.67 | 0.4759 | -836.0 | -670.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -22.59 | 333.08 | 11.05 | 200.79 | 0.5005 | -541.0 | -364.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -22.11 | 332.95 | 10.91 | 200.92 | 0.4931 | -135.0 | -94.6 | |
| 15.91 | 324.64 | 8.95 | 183.84 | -21.00 | 332.63 | 10.60 | 201.25 | 0.4757 | -1140.1 | -434.6 | |
| 0.78 | -40.00 | 0.44 | -40.00 | -21.44 | 332.67 | 10.63 | 200.96 | 0.4820 | -719.4 | 999999 | |
| 1.13 | -40.00 | 0.64 | -40.00 | -22.41 | 332.38 | 10.34 | 199.71 | 0.4943 | -825.9 | 999999 | |
| 42.09 | -40.00 | 23.84 | -40.00 | -22.03 | 331.96 | 9.92 | 199.24 | 0.4867 | -1304.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -22.69 | 331.15 | 9.12 | 197.35 | 0.4924 | -81.0 | -135.1 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -20.81 | 330.74 | 8.71 | 197.87 | 0.4631 | 823.0 | 642.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
