SDO HMI 2011-10-23 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.53 | 0.00 | 5.63 | 24.91 | 330.34 | 10.51 | 333.73 | 0.3806 | -528.0 | -461.8 | |
|
previous
or next observation for the same group /

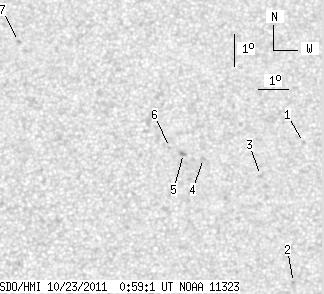

back to the solar disc SDO HMI 2011-10-23 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.75 | 25.22 | 333.71 | 13.88 | 327.72 | 0.4081 | -518.0 | -425.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 20.84 | 332.92 | 13.10 | 321.96 | 0.3451 | -927.0 | -769.0 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 24.21 | 332.15 | 12.32 | 329.19 | 0.3816 | -764.0 | -576.0 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 24.77 | 330.29 | 10.46 | 333.80 | 0.3752 | -681.0 | -576.0 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 24.94 | 329.64 | 9.81 | 335.42 | 0.3731 | -891.0 | -782.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 25.14 | 329.19 | 9.36 | 336.64 | 0.3729 | -643.0 | -470.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 28.60 | 324.31 | 4.48 | 350.17 | 0.4037 | 728.0 | 649.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
