SDO HMI 2011-10-23 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.57 | 0.00 | 5.09 | 23.58 | 330.94 | 11.66 | 329.45 | 0.3690 | -795.9 | -658.8 | |
|
previous
or next observation for the same group /

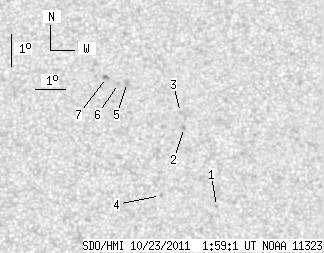

back to the solar disc SDO HMI 2011-10-23 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.69 | 20.83 | 332.90 | 13.62 | 320.88 | 0.3504 | -846.0 | -611.9 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 23.31 | 332.08 | 12.80 | 326.87 | 0.3739 | -774.0 | -661.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 23.78 | 331.99 | 12.71 | 327.78 | 0.3794 | -724.0 | -510.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 21.20 | 331.10 | 11.82 | 325.35 | 0.3374 | -696.0 | -599.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 24.76 | 330.31 | 11.03 | 332.59 | 0.3792 | -777.0 | -614.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 24.73 | 330.01 | 10.73 | 333.19 | 0.3766 | -753.0 | -611.5 | |
| 0.00 | 2.61 | 0.00 | 1.39 | 24.93 | 329.63 | 10.35 | 334.26 | 0.3766 | -1001.0 | -789.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
