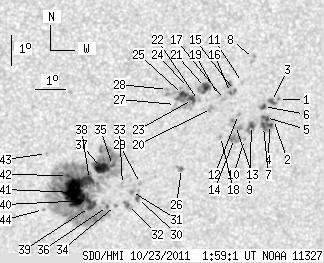

SDO HMI 2011-10-23 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.94 | 457.31 | 55.44 | 261.54 | -21.29 | 333.20 | 13.92 | 206.77 | 0.5014 | -222.6 | -182.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.65 | -19.19 | 338.19 | 18.91 | 216.79 | 0.5132 | 812.0 | 723.8 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -19.84 | 338.10 | 18.82 | 215.87 | 0.5201 | 121.0 | 131.2 | |
| 3.05 | 3.74 | 1.75 | 2.15 | -19.25 | 337.96 | 18.69 | 216.39 | 0.5119 | 939.8 | 723.9 | |
| 2.61 | 14.18 | 1.51 | 8.21 | -20.00 | 337.99 | 18.71 | 215.51 | 0.5210 | 723.8 | 620.1 | |
| 3.22 | -4.00 | 1.86 | -4.00 | -19.77 | 337.83 | 18.55 | 215.56 | 0.5168 | 888.1 | 999999 | |
| 2.52 | 3.65 | 1.45 | 2.10 | -19.40 | 337.72 | 18.44 | 215.84 | 0.5115 | 943.8 | 813.5 | |
| 2.35 | -4.00 | 1.36 | -4.00 | -20.06 | 337.80 | 18.52 | 215.16 | 0.5200 | 813.7 | 999999 | |
| 0.00 | 3.57 | 0.00 | 2.02 | -17.82 | 337.21 | 17.93 | 217.07 | 0.4882 | 802.0 | 656.3 | |
| 2.78 | 7.66 | 1.61 | 4.42 | -20.02 | 337.39 | 18.11 | 214.63 | 0.5160 | 908.0 | 622.0 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -20.48 | 337.21 | 17.93 | 213.84 | 0.5200 | 448.0 | 333.1 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -18.60 | 336.93 | 17.65 | 215.66 | 0.4949 | 731.0 | 619.2 | |
| 0.00 | 1.65 | 0.00 | 0.95 | -19.64 | 336.91 | 17.63 | 214.37 | 0.5074 | 721.0 | 661.1 | |
| 0.00 | 8.09 | 0.00 | 4.66 | -20.00 | 336.85 | 17.57 | 213.86 | 0.5113 | 338.0 | 699.3 | |
| 0.00 | 7.83 | 0.00 | 4.52 | -20.43 | 336.87 | 17.59 | 213.39 | 0.5167 | 721.0 | 629.9 | |
| 0.35 | 8.87 | 0.20 | 5.05 | -18.85 | 336.69 | 17.41 | 214.98 | 0.4959 | 782.0 | 777.6 | |
| 1.22 | -15.00 | 0.69 | -15.00 | -18.91 | 336.57 | 17.29 | 214.72 | 0.4956 | 977.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -19.14 | 336.39 | 17.11 | 214.18 | 0.4968 | 688.0 | 706.0 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -20.35 | 336.39 | 17.11 | 212.77 | 0.5118 | 686.0 | 631.7 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -19.00 | 336.18 | 16.90 | 214.01 | 0.4933 | 826.0 | 779.1 | |
| 0.00 | 3.74 | 0.00 | 2.13 | -19.42 | 335.99 | 16.71 | 213.23 | 0.4970 | 988.0 | 733.3 | |
| 6.26 | 11.14 | 3.55 | 6.30 | -18.72 | 335.72 | 16.44 | 213.63 | 0.4861 | 1011.0 | 909.8 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -19.14 | 335.53 | 16.26 | 212.83 | 0.4898 | 597.0 | 588.0 | |
| 3.22 | 27.41 | 1.82 | 15.51 | -19.11 | 335.33 | 16.05 | 212.55 | 0.4876 | 892.5 | 564.1 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -18.71 | 335.16 | 15.88 | 212.75 | 0.4812 | 599.0 | 548.8 | |
| 4.61 | -23.00 | 2.61 | -23.00 | -18.93 | 334.99 | 15.71 | 212.20 | 0.4826 | 1010.2 | 999999 | |
| 1.57 | 3.13 | 0.90 | 1.81 | -21.38 | 335.21 | 15.93 | 209.86 | 0.5155 | -777.2 | -839.8 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -19.26 | 334.79 | 15.51 | 211.50 | 0.4851 | 55.0 | 105.1 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -18.76 | 334.48 | 15.20 | 211.57 | 0.4763 | 864.0 | 622.5 | |
| 0.00 | 1.74 | 0.00 | 1.00 | -21.85 | 333.90 | 14.62 | 207.34 | 0.5121 | -764.0 | -645.3 | |
| 2.00 | 4.18 | 1.16 | 2.41 | -22.35 | 333.85 | 14.57 | 206.79 | 0.5184 | -678.4 | -505.7 | |
| 0.00 | 2.35 | 0.00 | 1.35 | -22.11 | 333.63 | 14.35 | 206.66 | 0.5137 | -964.0 | -782.6 | |
| 1.74 | 5.74 | 1.01 | 3.32 | -22.58 | 333.54 | 14.26 | 206.09 | 0.5194 | -691.5 | -588.5 | |
| 0.00 | 1.74 | 0.00 | 1.00 | -21.87 | 333.30 | 14.02 | 206.37 | 0.5083 | -661.0 | -532.2 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -22.57 | 333.14 | 13.86 | 205.46 | 0.5166 | -357.0 | -208.1 | |
| 1.22 | 318.72 | 0.69 | 182.26 | -21.23 | 332.91 | 13.63 | 206.34 | 0.4971 | -640.6 | -425.4 | |
| 0.61 | -35.00 | 0.35 | -35.00 | -22.60 | 332.88 | 13.60 | 205.02 | 0.5153 | -539.7 | 999999 | |
| 12.27 | -35.00 | 6.99 | -35.00 | -21.28 | 332.55 | 13.27 | 205.69 | 0.4955 | -1132.1 | 999999 | |
| 0.96 | -35.00 | 0.55 | -35.00 | -21.68 | 332.19 | 12.91 | 204.73 | 0.4985 | -1039.0 | 999999 | |
| 1.83 | -35.00 | 1.05 | -35.00 | -22.62 | 332.28 | 13.00 | 204.04 | 0.5119 | -654.4 | 999999 | |
| 2.09 | -35.00 | 1.20 | -35.00 | -22.38 | 332.23 | 12.95 | 204.15 | 0.5083 | -740.3 | 999999 | |
| 39.24 | -35.00 | 22.44 | -35.00 | -22.10 | 331.74 | 12.46 | 203.59 | 0.5015 | -1260.1 | 999999 | |
| 1.22 | -35.00 | 0.69 | -35.00 | -21.53 | 331.46 | 12.18 | 203.61 | 0.4919 | -1232.1 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -20.78 | 330.71 | 11.43 | 202.96 | 0.4770 | 433.0 | 380.9 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -22.66 | 330.76 | 11.48 | 201.49 | 0.5035 | -618.0 | -548.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
