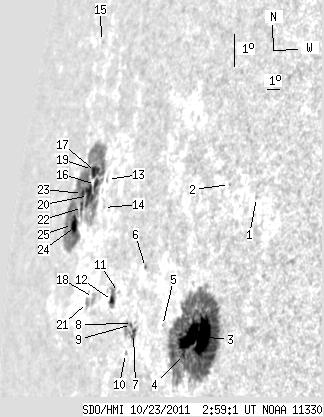

SDO HMI 2011-10-23 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.96 | 563.01 | 134.59 | 785.65 | 7.72 | 249.30 | -69.43 | 83.77 | 0.9310 | -184.8 | -78.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.33 | 10.62 | 257.40 | -61.33 | 80.76 | 0.8757 | -516.0 | -409.7 | |
| 0.00 | 1.13 | 0.00 | 1.22 | 10.86 | 255.53 | -63.20 | 80.48 | 0.8908 | -326.0 | -252.4 | |
| 54.30 | 330.75 | 60.66 | 371.72 | 6.21 | 254.68 | -64.05 | 85.66 | 0.8983 | -767.6 | -222.2 | |
| 1.04 | -3.00 | 1.20 | -3.00 | 5.60 | 253.90 | -64.83 | 86.29 | 0.9044 | -371.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.75 | 6.33 | 252.18 | -66.55 | 85.39 | 0.9165 | -202.0 | -144.6 | |
| 0.00 | 1.31 | 0.00 | 1.72 | 7.92 | 250.35 | -68.38 | 83.57 | 0.9282 | 20.0 | 83.3 | |
| 3.57 | 14.27 | 4.79 | 19.45 | 5.90 | 249.98 | -68.75 | 85.72 | 0.9313 | -398.3 | 122.4 | |
| 0.00 | 0.26 | 0.00 | 0.35 | 6.19 | 249.82 | -68.92 | 85.40 | 0.9322 | -234.0 | -233.3 | |
| 1.04 | -7.00 | 1.42 | -7.00 | 6.16 | 249.74 | -68.99 | 85.44 | 0.9327 | -210.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.68 | 5.26 | 249.47 | -69.26 | 86.38 | 0.9347 | 7.0 | -33.1 | |
| 0.00 | 0.61 | 0.00 | 0.88 | 7.00 | 248.33 | -70.40 | 84.45 | 0.9409 | 1.0 | -32.3 | |
| 3.05 | 9.14 | 4.51 | 13.51 | 6.72 | 247.88 | -70.85 | 84.73 | 0.9436 | 467.3 | 496.8 | |
| 0.00 | 1.39 | 0.00 | 2.27 | 10.20 | 245.78 | -72.95 | 80.95 | 0.9541 | 461.0 | 408.5 | |
| 0.00 | 1.13 | 0.00 | 1.84 | 9.35 | 245.84 | -72.89 | 81.84 | 0.9540 | 482.0 | 443.5 | |
| 0.00 | 0.70 | 0.00 | 1.41 | 14.08 | 241.93 | -76.80 | 76.78 | 0.9711 | 131.0 | 165.8 | |
| 3.92 | 190.74 | 6.80 | 353.61 | 9.94 | 244.63 | -74.10 | 81.17 | 0.9599 | 647.4 | 20.8 | |
| 4.79 | -16.00 | 8.43 | -16.00 | 10.32 | 244.39 | -74.34 | 80.77 | 0.9610 | 470.9 | 999999 | |
| 0.00 | 4.61 | 0.00 | 7.49 | 6.65 | 246.05 | -72.68 | 84.69 | 0.9537 | 568.0 | 455.0 | |
| 0.96 | -16.00 | 1.73 | -16.00 | 10.35 | 244.03 | -74.70 | 80.72 | 0.9627 | -127.1 | 999999 | |
| 12.79 | -16.00 | 23.02 | -16.00 | 9.56 | 244.07 | -74.66 | 81.54 | 0.9627 | 440.2 | 999999 | |
| 0.00 | 3.83 | 0.00 | 6.42 | 6.45 | 245.50 | -73.23 | 84.86 | 0.9566 | 344.0 | 239.0 | |
| 1.83 | -16.00 | 3.40 | -16.00 | 9.16 | 243.61 | -75.12 | 81.94 | 0.9649 | 178.3 | 999999 | |
| 1.31 | -16.00 | 2.46 | -16.00 | 9.56 | 243.36 | -75.38 | 81.51 | 0.9659 | -210.3 | 999999 | |
| 5.05 | -16.00 | 9.69 | -16.00 | 8.54 | 243.13 | -75.60 | 82.55 | 0.9672 | 317.3 | 999999 | |
| 3.31 | -16.00 | 6.48 | -16.00 | 8.56 | 242.74 | -75.99 | 82.50 | 0.9689 | -333.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
