SDO HMI 2011-10-23 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.11 | 576.17 | 64.97 | 297.59 | 12.29 | 303.97 | -14.21 | 60.74 | 0.2727 | -35.1 | 96.5 | |
|
previous
or next observation for the same group /

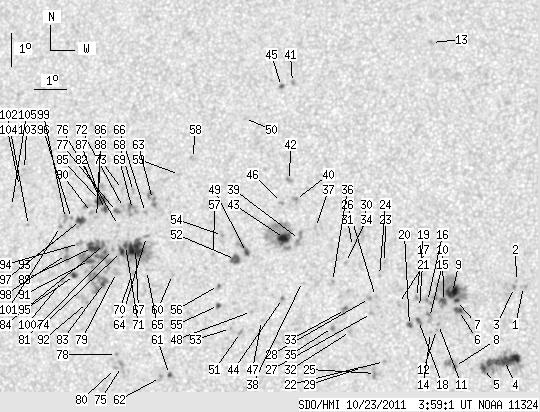

back to the solar disc SDO HMI 2011-10-23 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.18 | 11.92 | 312.50 | -5.68 | 39.76 | 0.1522 | -873.0 | -793.3 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 12.07 | 312.28 | -5.90 | 40.18 | 0.1566 | -832.0 | -694.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.89 | 312.22 | -5.96 | 41.22 | 0.1549 | -1176.0 | -1027.5 | |
| 23.06 | 58.13 | 11.52 | 29.05 | 9.70 | 311.96 | -6.22 | 53.87 | 0.1329 | -1165.7 | -622.1 | |
| 3.92 | -4.00 | 1.96 | -4.00 | 9.45 | 311.33 | -6.85 | 57.91 | 0.1396 | -988.7 | 999999 | |
| 3.74 | 5.48 | 1.88 | 2.75 | 11.18 | 310.52 | -7.66 | 51.50 | 0.1678 | -1094.9 | -797.0 | |
| 1.39 | 61.61 | 0.70 | 31.01 | 11.48 | 310.45 | -7.73 | 50.35 | 0.1720 | -1162.7 | -551.0 | |
| 1.22 | 8.88 | 0.61 | 4.45 | 9.50 | 310.44 | -7.74 | 60.59 | 0.1532 | -995.3 | -830.7 | |
| 8.01 | -7.00 | 4.03 | -7.00 | 11.72 | 310.32 | -7.86 | 49.74 | 0.1762 | -1304.6 | 999999 | |
| 3.31 | -7.00 | 1.66 | -7.00 | 11.44 | 310.06 | -8.13 | 51.89 | 0.1769 | -1197.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.75 | 309.92 | -8.26 | 55.58 | 0.1719 | -1015.0 | -799.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 10.60 | 309.86 | -8.32 | 56.50 | 0.1713 | -890.0 | -683.4 | |
| 0.00 | 2.52 | 0.00 | 1.30 | 19.29 | 309.36 | -8.83 | 30.74 | 0.2846 | -835.0 | -588.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 10.51 | 309.68 | -8.50 | 57.51 | 0.1731 | -880.0 | -661.2 | |
| 0.00 | 4.35 | 0.00 | 2.19 | 10.96 | 309.64 | -8.54 | 55.47 | 0.1779 | -850.0 | -955.1 | |
| 0.00 | 3.65 | 0.00 | 1.84 | 11.44 | 309.56 | -8.62 | 53.50 | 0.1836 | -908.0 | -791.3 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.26 | 309.32 | -8.86 | 55.05 | 0.1851 | -820.0 | -585.4 | |
| 1.22 | 3.22 | 0.61 | 1.62 | 10.87 | 309.30 | -8.88 | 56.90 | 0.1818 | -951.2 | -938.4 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 11.55 | 309.22 | -8.96 | 54.03 | 0.1894 | -1068.0 | -885.2 | |
| 2.44 | 2.87 | 1.23 | 1.45 | 10.71 | 309.03 | -9.15 | 58.38 | 0.1843 | -987.1 | -902.4 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 11.37 | 308.67 | -9.51 | 56.39 | 0.1954 | -881.0 | -713.4 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 9.62 | 308.30 | -9.89 | 65.41 | 0.1870 | -1093.0 | -911.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.59 | 308.19 | -9.99 | 52.69 | 0.2138 | -1078.0 | -759.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.20 | 308.05 | -10.13 | 54.58 | 0.2119 | -813.0 | -618.6 | |
| 0.00 | 6.96 | 0.00 | 3.51 | 9.26 | 308.03 | -10.15 | 67.73 | 0.1888 | -1109.0 | -818.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 11.56 | 307.95 | -10.23 | 57.39 | 0.2075 | -839.0 | -687.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 11.05 | 307.85 | -10.33 | 59.80 | 0.2046 | -838.0 | -720.3 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 11.50 | 307.77 | -10.41 | 58.09 | 0.2096 | -991.0 | -827.9 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 9.43 | 307.63 | -10.56 | 67.64 | 0.1963 | -897.0 | -709.7 | |
| 0.00 | 5.48 | 0.00 | 2.79 | 13.48 | 307.44 | -10.74 | 51.41 | 0.2329 | -968.0 | -672.6 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.06 | 307.18 | -11.00 | 53.55 | 0.2322 | -817.0 | -642.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 10.50 | 307.22 | -10.96 | 63.53 | 0.2098 | -763.0 | -637.6 | |
| 0.00 | 4.44 | 0.00 | 2.25 | 11.16 | 307.04 | -11.14 | 61.13 | 0.2175 | -923.0 | -640.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 12.57 | 306.98 | -11.20 | 55.77 | 0.2303 | -860.0 | -653.4 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 10.61 | 306.66 | -11.52 | 64.14 | 0.2192 | -690.0 | -628.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.99 | 306.60 | -11.58 | 58.76 | 0.2307 | -1059.0 | -887.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 13.61 | 305.99 | -12.19 | 54.34 | 0.2537 | -784.0 | -562.1 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 11.97 | 305.67 | -12.51 | 60.67 | 0.2442 | -336.0 | -465.0 | |
| 0.00 | 7.05 | 0.00 | 3.61 | 13.24 | 305.51 | -12.67 | 56.57 | 0.2570 | -975.0 | -845.7 | |
| 0.00 | 3.39 | 0.00 | 1.75 | 14.44 | 305.32 | -12.86 | 53.11 | 0.2708 | -934.0 | -749.4 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 17.99 | 304.98 | -13.20 | 44.28 | 0.3125 | -979.0 | -813.9 | |
| 0.00 | 2.70 | 0.00 | 1.39 | 15.01 | 305.09 | -13.09 | 51.87 | 0.2793 | -915.0 | -718.2 | |
| 9.40 | 51.26 | 4.83 | 26.34 | 13.26 | 305.04 | -13.14 | 57.41 | 0.2639 | -1147.6 | -317.7 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 11.45 | 305.07 | -13.11 | 63.63 | 0.2493 | 912.0 | 843.1 | |
| 0.78 | 1.65 | 0.41 | 0.86 | 17.86 | 304.64 | -13.54 | 45.29 | 0.3150 | -945.1 | -733.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 14.34 | 304.88 | -13.30 | 54.29 | 0.2758 | -920.0 | -708.0 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 10.78 | 304.44 | -13.74 | 67.05 | 0.2545 | -651.0 | -493.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.04 | 304.12 | -14.06 | 66.54 | 0.2612 | 1015.0 | 718.6 | |
| 2.18 | 8.09 | 1.12 | 4.17 | 12.81 | 303.87 | -14.32 | 60.90 | 0.2772 | 951.5 | 952.5 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 16.86 | 303.52 | -14.66 | 49.89 | 0.3180 | -795.0 | -549.9 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 10.41 | 303.80 | -14.38 | 69.24 | 0.2624 | 1007.0 | 773.9 | |
| 6.96 | 7.05 | 3.59 | 3.64 | 12.59 | 303.53 | -14.65 | 62.12 | 0.2805 | 958.0 | 1106.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 10.52 | 303.49 | -14.70 | 69.22 | 0.2680 | 819.0 | 616.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 13.30 | 303.08 | -15.11 | 60.57 | 0.2925 | 957.0 | 742.1 | |
| 1.91 | 2.61 | 0.99 | 1.35 | 11.20 | 303.07 | -15.11 | 67.36 | 0.2783 | -948.1 | -859.8 | |
| 1.04 | 1.83 | 0.54 | 0.94 | 11.80 | 303.04 | -15.14 | 65.41 | 0.2825 | -588.3 | -528.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 12.73 | 302.83 | -15.36 | 62.73 | 0.2919 | -676.0 | -554.8 | |
| 0.00 | 2.35 | 0.00 | 1.23 | 15.61 | 301.95 | -16.23 | 55.77 | 0.3271 | -669.0 | -570.8 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 15.11 | 301.57 | -16.61 | 57.65 | 0.3282 | 838.0 | 581.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 12.09 | 301.56 | -16.62 | 66.30 | 0.3068 | -725.0 | -504.8 | |
| 1.48 | 2.96 | 0.77 | 1.53 | 9.10 | 301.64 | -16.55 | 75.89 | 0.2913 | 978.9 | 853.6 | |
| 0.00 | 2.61 | 0.00 | 1.35 | 9.00 | 301.36 | -16.82 | 76.40 | 0.2954 | 865.0 | 773.8 | |
| 0.00 | 9.83 | 0.00 | 5.16 | 14.33 | 300.76 | -17.42 | 60.85 | 0.3336 | 960.0 | 878.9 | |
| 0.00 | 2.52 | 0.00 | 1.32 | 13.21 | 300.66 | -17.53 | 64.07 | 0.3274 | 935.0 | 681.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 12.19 | 300.73 | -17.45 | 66.93 | 0.3201 | 658.0 | 432.3 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 13.93 | 300.57 | -17.61 | 62.17 | 0.3336 | 988.0 | 781.0 | |
| 17.06 | 70.58 | 8.95 | 37.00 | 12.84 | 300.33 | -17.85 | 65.49 | 0.3300 | 1220.4 | 659.9 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 14.56 | 300.13 | -18.05 | 61.04 | 0.3443 | 740.0 | 585.1 | |
| 0.00 | 7.83 | 0.00 | 4.12 | 14.01 | 300.14 | -18.04 | 62.47 | 0.3403 | 617.0 | 886.9 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 12.12 | 300.28 | -17.90 | 67.61 | 0.3264 | 968.0 | 729.5 | |
| 1.83 | -67.00 | 0.96 | -67.00 | 12.92 | 300.00 | -18.18 | 65.61 | 0.3354 | 850.9 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 14.07 | 299.85 | -18.34 | 62.68 | 0.3450 | 769.0 | 695.7 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 14.61 | 299.77 | -18.42 | 61.35 | 0.3499 | 687.0 | 557.9 | |
| 2.61 | -67.00 | 1.37 | -67.00 | 12.74 | 299.89 | -18.30 | 66.25 | 0.3360 | 1046.4 | 999999 | |
| 0.00 | 5.22 | 0.00 | 2.73 | 9.29 | 300.11 | -18.08 | 76.26 | 0.3166 | 887.0 | 776.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.52 | 299.73 | -18.45 | 64.28 | 0.3431 | 926.0 | 730.2 | |
| 0.96 | 2.96 | 0.51 | 1.56 | 13.94 | 299.63 | -18.55 | 63.26 | 0.3473 | 973.4 | 848.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.65 | 299.93 | -18.25 | 75.28 | 0.3207 | 979.0 | 765.6 | |
| 0.00 | 4.26 | 0.00 | 2.24 | 12.10 | 299.77 | -18.41 | 68.15 | 0.3342 | 323.0 | 394.0 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 9.23 | 299.92 | -18.26 | 76.57 | 0.3194 | 841.0 | 600.6 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 12.79 | 299.59 | -18.59 | 66.41 | 0.3407 | 1028.0 | 855.2 | |
| 2.09 | 15.58 | 1.11 | 8.26 | 13.99 | 299.27 | -18.91 | 63.53 | 0.3529 | 1028.0 | 669.3 | |
| 3.74 | 84.67 | 1.97 | 44.67 | 11.79 | 299.41 | -18.77 | 69.37 | 0.3381 | 1099.4 | 855.5 | |
| 0.52 | -83.00 | 0.28 | -83.00 | 12.93 | 299.32 | -18.86 | 66.29 | 0.3456 | 803.3 | 999999 | |
| 5.57 | -82.00 | 2.95 | -82.00 | 14.26 | 299.08 | -19.10 | 63.04 | 0.3574 | 954.5 | 999999 | |
| 0.00 | 5.40 | 0.00 | 2.86 | 14.65 | 299.01 | -19.17 | 62.12 | 0.3610 | -65.0 | 36.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 14.46 | 299.00 | -19.18 | 62.60 | 0.3600 | 520.0 | 463.7 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 13.74 | 299.00 | -19.19 | 64.47 | 0.3553 | 932.0 | 783.7 | |
| 7.40 | -83.00 | 3.91 | -83.00 | 12.83 | 298.94 | -19.24 | 66.93 | 0.3508 | 1009.3 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.43 | 13.88 | 298.82 | -19.36 | 64.28 | 0.3588 | 807.0 | 691.5 | |
| 4.87 | -83.00 | 2.58 | -83.00 | 12.44 | 298.88 | -19.31 | 68.06 | 0.3496 | 953.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.18 | 298.90 | -19.28 | 71.53 | 0.3430 | 816.0 | 698.3 | |
| 4.70 | 7.40 | 2.50 | 3.93 | 13.63 | 298.48 | -19.70 | 65.27 | 0.3622 | 877.1 | 665.7 | |
| 0.00 | 3.39 | 0.00 | 1.80 | 12.94 | 298.51 | -19.67 | 67.05 | 0.3578 | 848.0 | 673.2 | |
| 2.70 | 3.65 | 1.43 | 1.93 | 11.97 | 298.42 | -19.76 | 69.71 | 0.3541 | 831.7 | 678.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 13.68 | 298.19 | -20.00 | 65.43 | 0.3669 | 666.0 | 493.7 | |
| 0.00 | 2.35 | 0.00 | 1.25 | 13.38 | 298.18 | -20.00 | 66.21 | 0.3653 | 603.0 | 595.2 | |
| 0.00 | 7.31 | 0.00 | 3.88 | 12.60 | 298.12 | -20.07 | 68.31 | 0.3619 | 747.0 | 669.4 | |
| 0.00 | 4.35 | 0.00 | 2.32 | 13.68 | 297.99 | -20.19 | 65.63 | 0.3698 | 811.0 | 598.3 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 11.81 | 298.05 | -20.13 | 70.45 | 0.3591 | 641.0 | 541.1 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 13.43 | 297.85 | -20.33 | 66.39 | 0.3705 | 731.0 | 620.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.43 | 296.80 | -21.38 | 67.31 | 0.3861 | 455.0 | 440.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 15.11 | 296.50 | -21.69 | 63.55 | 0.4002 | 649.0 | 588.7 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 14.59 | 296.38 | -21.80 | 64.86 | 0.3986 | 772.0 | 637.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 13.98 | 296.18 | -22.00 | 66.48 | 0.3981 | 566.0 | 434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
