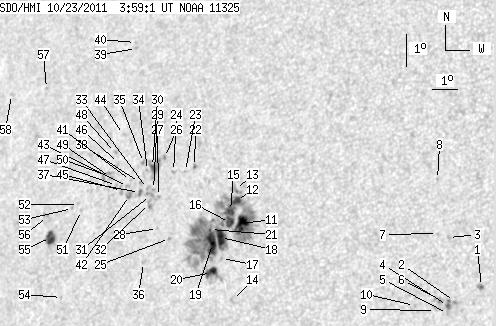

SDO HMI 2011-10-23 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.67 | 371.17 | 49.35 | 239.38 | 15.63 | 279.24 | -38.95 | 71.71 | 0.6390 | -243.6 | -133.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.22 | 2.70 | 0.69 | 1.53 | 14.19 | 289.72 | -28.46 | 70.23 | 0.4929 | -908.6 | -812.1 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 13.70 | 288.84 | -29.34 | 71.62 | 0.5037 | -744.0 | -726.8 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 15.62 | 288.34 | -29.84 | 68.21 | 0.5182 | -806.0 | -651.2 | |
| 1.65 | 3.92 | 0.95 | 2.25 | 13.57 | 288.61 | -29.57 | 71.97 | 0.5065 | -960.8 | -740.0 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 13.33 | 288.64 | -29.54 | 72.42 | 0.5053 | -738.0 | -631.4 | |
| 0.00 | 4.35 | 0.00 | 2.51 | 13.73 | 288.27 | -29.91 | 71.80 | 0.5120 | -809.0 | -744.1 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 15.72 | 287.93 | -30.25 | 68.23 | 0.5243 | -536.0 | -424.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 17.36 | 287.64 | -30.54 | 65.43 | 0.5354 | -484.0 | -417.1 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 13.40 | 288.21 | -29.97 | 72.47 | 0.5117 | -703.0 | -557.9 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 13.52 | 287.45 | -30.74 | 72.56 | 0.5230 | -666.0 | -570.3 | |
| 9.49 | 240.10 | 5.99 | 153.12 | 15.66 | 280.60 | -37.58 | 71.29 | 0.6223 | -1187.7 | -290.4 | |
| 5.22 | -11.00 | 3.32 | -11.00 | 16.35 | 280.25 | -37.93 | 70.32 | 0.6287 | -803.6 | 999999 | |
| 0.00 | 6.18 | 0.00 | 3.94 | 16.68 | 280.14 | -38.05 | 69.85 | 0.6312 | -405.0 | -245.8 | |
| 0.00 | 2.52 | 0.00 | 1.58 | 13.33 | 280.72 | -37.47 | 74.98 | 0.6151 | -174.0 | -242.3 | |
| 7.48 | -11.00 | 4.76 | -11.00 | 16.03 | 280.09 | -38.09 | 70.87 | 0.6299 | -799.9 | 999999 | |
| 6.70 | -11.00 | 4.26 | -11.00 | 15.67 | 280.13 | -38.05 | 71.42 | 0.6284 | -881.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.83 | 14.57 | 280.05 | -38.13 | 73.18 | 0.6267 | -752.0 | -620.8 | |
| 10.62 | -11.00 | 6.76 | -11.00 | 15.20 | 279.88 | -38.31 | 72.24 | 0.6304 | -1035.5 | 999999 | |
| 13.23 | -11.00 | 8.45 | -11.00 | 15.00 | 279.60 | -38.58 | 72.62 | 0.6335 | -859.4 | 999999 | |
| 7.14 | 15.49 | 4.54 | 9.85 | 14.12 | 279.74 | -38.44 | 73.95 | 0.6296 | -858.3 | -578.7 | |
| 0.87 | -11.00 | 0.56 | -11.00 | 15.41 | 279.43 | -38.75 | 72.02 | 0.6367 | -446.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 17.28 | 278.34 | -39.84 | 69.51 | 0.6554 | -686.0 | -526.7 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 17.11 | 278.01 | -40.17 | 69.86 | 0.6589 | -298.0 | -235.2 | |
| 0.00 | 1.74 | 0.00 | 1.15 | 17.08 | 277.53 | -40.65 | 70.05 | 0.6648 | -401.0 | -326.1 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 15.05 | 277.87 | -40.32 | 72.99 | 0.6557 | -257.0 | -153.5 | |
| 0.00 | 1.65 | 0.00 | 1.10 | 17.48 | 277.05 | -41.14 | 69.60 | 0.6718 | 887.0 | 745.6 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 16.29 | 277.11 | -41.07 | 71.33 | 0.6679 | -619.0 | -425.8 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 15.32 | 277.31 | -40.87 | 72.72 | 0.6632 | 341.0 | 409.9 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 16.49 | 276.86 | -41.33 | 71.11 | 0.6716 | -253.0 | -165.0 | |
| 2.52 | 14.71 | 1.69 | 9.84 | 17.18 | 276.63 | -41.55 | 70.16 | 0.6761 | 387.3 | 203.2 | |
| 0.00 | 3.92 | 0.00 | 2.61 | 16.30 | 276.78 | -41.40 | 71.41 | 0.6720 | 668.0 | 528.5 | |
| 0.00 | 2.87 | 0.00 | 1.91 | 16.06 | 276.80 | -41.38 | 71.76 | 0.6712 | 695.0 | 722.8 | |
| 0.00 | 1.57 | 0.00 | 1.05 | 16.51 | 276.60 | -41.58 | 71.15 | 0.6747 | 837.0 | 747.3 | |
| 0.00 | 0.96 | 0.00 | 0.64 | 17.05 | 276.46 | -41.73 | 70.40 | 0.6778 | 482.0 | 521.8 | |
| 0.00 | 1.74 | 0.00 | 1.17 | 17.28 | 276.22 | -41.96 | 70.13 | 0.6812 | 772.0 | 705.8 | |
| 0.00 | 1.65 | 0.00 | 1.09 | 14.27 | 276.98 | -41.20 | 74.37 | 0.6652 | 556.0 | 373.4 | |
| 1.83 | 2.70 | 1.23 | 1.81 | 16.37 | 276.30 | -41.88 | 71.44 | 0.6780 | 750.3 | 761.5 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 16.67 | 276.22 | -41.96 | 71.02 | 0.6797 | 798.0 | 721.5 | |
| 0.00 | 1.22 | 0.00 | 0.85 | 20.73 | 274.82 | -43.36 | 65.68 | 0.7070 | 769.0 | 620.4 | |
| 0.00 | 0.87 | 0.00 | 0.61 | 20.91 | 274.71 | -43.47 | 65.47 | 0.7088 | 480.0 | 419.9 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 16.70 | 275.83 | -42.35 | 71.06 | 0.6845 | 659.0 | 527.7 | |
| 0.00 | 4.18 | 0.00 | 2.82 | 16.25 | 275.91 | -42.27 | 71.70 | 0.6825 | 704.0 | 648.1 | |
| 0.00 | 1.83 | 0.00 | 1.24 | 16.52 | 275.76 | -42.42 | 71.35 | 0.6849 | 712.0 | 653.9 | |
| 0.00 | 1.39 | 0.00 | 0.96 | 18.08 | 275.14 | -43.05 | 69.29 | 0.6961 | 623.0 | 547.9 | |
| 0.00 | 3.31 | 0.00 | 2.25 | 16.38 | 275.54 | -42.64 | 71.60 | 0.6873 | 687.0 | 551.4 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 17.19 | 275.19 | -43.00 | 70.54 | 0.6933 | 557.0 | 438.5 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 16.52 | 275.29 | -42.89 | 71.46 | 0.6906 | 706.0 | 619.2 | |
| 0.00 | 1.22 | 0.00 | 0.84 | 17.51 | 274.96 | -43.22 | 70.13 | 0.6967 | 673.0 | 494.2 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 16.74 | 274.97 | -43.21 | 71.22 | 0.6949 | 787.0 | 718.7 | |
| 0.00 | 5.48 | 0.00 | 3.78 | 16.79 | 274.78 | -43.40 | 71.19 | 0.6972 | 593.0 | 545.3 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 15.67 | 274.02 | -44.16 | 72.95 | 0.7040 | 550.0 | 462.5 | |
| 0.00 | 0.87 | 0.00 | 0.61 | 15.85 | 273.84 | -44.34 | 72.74 | 0.7064 | 408.0 | 375.1 | |
| 0.00 | 0.96 | 0.00 | 0.67 | 15.71 | 273.62 | -44.57 | 72.98 | 0.7088 | 387.0 | 304.4 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 13.01 | 273.82 | -44.36 | 76.75 | 0.7022 | 452.0 | 431.3 | |
| 8.70 | 12.88 | 6.15 | 9.10 | 14.78 | 272.91 | -45.28 | 74.41 | 0.7156 | 753.6 | 400.9 | |
| 0.00 | 3.92 | 0.00 | 2.79 | 15.40 | 272.60 | -45.58 | 73.60 | 0.7201 | 587.0 | 319.3 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 19.26 | 271.29 | -46.89 | 68.65 | 0.7423 | 543.0 | 438.3 | |
| 0.00 | 1.13 | 0.00 | 0.86 | 18.97 | 269.75 | -48.43 | 69.37 | 0.7582 | 521.0 | 435.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
