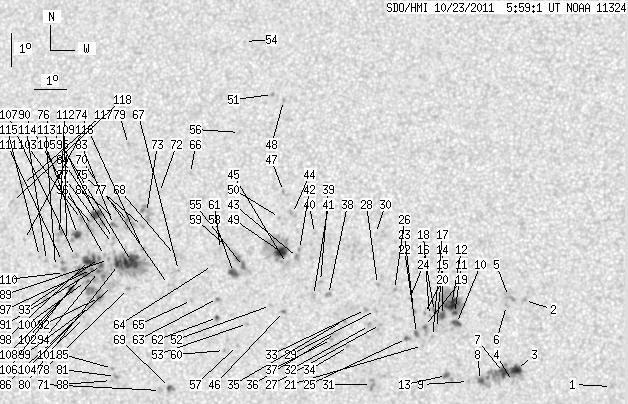

SDO HMI 2011-10-23 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.02 | 553.15 | 64.18 | 284.63 | 12.32 | 303.79 | -13.30 | 58.43 | 0.2601 | 44.0 | 132.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 0.91 | 9.32 | 315.27 | -1.81 | 23.70 | 0.0781 | -816.0 | -548.3 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 11.89 | 312.60 | -4.49 | 33.43 | 0.1396 | -968.0 | -847.3 | |
| 6.88 | 49.00 | 3.43 | 24.44 | 9.82 | 312.39 | -4.70 | 45.23 | 0.1142 | -1161.8 | -745.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 9.46 | 312.27 | -4.81 | 48.28 | 0.1114 | -220.0 | -163.2 | |
| 0.00 | 6.35 | 0.00 | 3.18 | 12.00 | 312.11 | -4.98 | 35.71 | 0.1461 | -996.0 | -789.0 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 11.73 | 312.05 | -5.03 | 37.16 | 0.1429 | -874.0 | -721.0 | |
| 6.27 | -3.00 | 3.13 | -3.00 | 9.72 | 312.00 | -5.09 | 48.10 | 0.1181 | -1149.9 | 999999 | |
| 2.35 | -3.00 | 1.17 | -3.00 | 9.48 | 311.30 | -5.79 | 53.22 | 0.1247 | -1075.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.45 | 310.94 | -6.15 | 55.07 | 0.1295 | -880.0 | -647.1 | |
| 4.35 | 4.70 | 2.18 | 2.36 | 11.18 | 310.54 | -6.55 | 47.11 | 0.1535 | -1081.9 | -920.0 | |
| 1.74 | 53.69 | 0.87 | 26.96 | 11.48 | 310.47 | -6.62 | 45.97 | 0.1578 | -1133.8 | -520.6 | |
| 10.97 | -11.00 | 5.50 | -11.00 | 11.75 | 310.37 | -6.72 | 45.16 | 0.1623 | -1247.7 | 999999 | |
| 2.35 | 5.48 | 1.18 | 2.74 | 9.62 | 310.26 | -6.82 | 56.71 | 0.1408 | -1019.6 | -854.7 | |
| 3.92 | -11.00 | 1.97 | -11.00 | 11.41 | 310.10 | -6.99 | 47.79 | 0.1617 | -1199.0 | 999999 | |
| 0.00 | 3.05 | 0.00 | 1.53 | 11.02 | 309.93 | -7.16 | 50.35 | 0.1596 | -613.0 | -762.0 | |
| 1.74 | -11.00 | 0.87 | -11.00 | 11.53 | 309.85 | -7.23 | 48.22 | 0.1662 | -896.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.78 | 309.81 | -7.28 | 52.00 | 0.1586 | -1069.0 | -840.7 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.41 | 309.70 | -7.38 | 49.35 | 0.1668 | -968.0 | -849.1 | |
| 0.35 | 3.83 | 0.17 | 1.92 | 11.08 | 309.56 | -7.53 | 51.46 | 0.1652 | -1235.2 | -988.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.47 | 309.55 | -7.54 | 49.66 | 0.1695 | -896.0 | -718.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 10.51 | 309.51 | -7.58 | 54.48 | 0.1600 | -795.0 | -511.1 | |
| 1.74 | 2.61 | 0.87 | 1.31 | 10.86 | 309.32 | -7.77 | 53.34 | 0.1662 | -1004.7 | -948.0 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.55 | 309.21 | -7.88 | 50.49 | 0.1749 | -820.0 | -783.0 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 11.91 | 309.07 | -8.01 | 49.38 | 0.1805 | -693.0 | -486.7 | |
| 1.65 | 2.87 | 0.83 | 1.44 | 10.71 | 309.02 | -8.07 | 55.12 | 0.1689 | -908.0 | -854.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 12.18 | 308.60 | -8.48 | 49.84 | 0.1896 | 652.0 | 501.0 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 11.12 | 308.21 | -8.88 | 55.67 | 0.1843 | -1013.0 | -749.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.32 | 308.07 | -9.01 | 50.92 | 0.1981 | -846.0 | -737.6 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 11.54 | 308.04 | -9.05 | 54.29 | 0.1906 | -929.0 | -702.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.85 | 307.96 | -9.13 | 45.61 | 0.2166 | -584.0 | -541.9 | |
| 0.00 | 4.96 | 0.00 | 2.49 | 9.32 | 307.98 | -9.11 | 65.18 | 0.1729 | -1024.0 | -918.4 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 11.08 | 307.87 | -9.22 | 56.78 | 0.1888 | -805.0 | -652.6 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 11.56 | 307.73 | -9.36 | 55.06 | 0.1952 | -902.0 | -798.0 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 10.45 | 307.24 | -9.84 | 61.31 | 0.1926 | -660.0 | -574.6 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.22 | 307.06 | -10.02 | 58.28 | 0.2017 | -957.0 | -735.8 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 10.83 | 306.83 | -10.26 | 60.54 | 0.2018 | -653.0 | -565.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 10.65 | 306.71 | -10.38 | 61.61 | 0.2021 | -762.0 | -614.1 | |
| 0.00 | 3.05 | 0.00 | 1.54 | 12.00 | 306.57 | -10.52 | 56.30 | 0.2156 | -969.0 | -802.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.38 | 306.31 | -10.78 | 55.44 | 0.2229 | -827.0 | -665.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.82 | 306.05 | -11.03 | 50.94 | 0.2404 | -826.0 | -609.6 | |
| 0.00 | 2.70 | 0.00 | 1.37 | 11.96 | 306.11 | -10.98 | 57.53 | 0.2219 | -925.0 | -690.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 13.33 | 305.61 | -11.48 | 53.65 | 0.2415 | -987.0 | -807.6 | |
| 0.00 | 3.57 | 0.00 | 1.82 | 13.09 | 305.56 | -11.53 | 54.60 | 0.2399 | -1085.0 | -887.4 | |
| 0.00 | 4.00 | 0.00 | 2.05 | 14.41 | 305.33 | -11.75 | 50.74 | 0.2560 | -877.0 | -706.0 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 12.90 | 305.22 | -11.87 | 55.99 | 0.2429 | -894.0 | -744.8 | |
| 0.96 | 1.65 | 0.49 | 0.84 | 11.46 | 305.19 | -11.89 | 61.37 | 0.2312 | 795.4 | 700.6 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 15.07 | 305.01 | -12.07 | 49.47 | 0.2670 | -764.0 | -579.4 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 17.84 | 304.84 | -12.25 | 42.55 | 0.3001 | -974.0 | -666.4 | |
| 8.88 | 46.56 | 4.54 | 23.82 | 13.23 | 305.05 | -12.04 | 55.23 | 0.2483 | -1162.5 | -307.5 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 14.29 | 304.93 | -12.16 | 52.05 | 0.2600 | -894.0 | -734.5 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 18.02 | 304.47 | -12.62 | 42.94 | 0.3063 | -886.0 | -668.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 11.63 | 304.78 | -12.31 | 61.50 | 0.2386 | 812.0 | 506.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 11.08 | 304.09 | -13.00 | 64.77 | 0.2451 | 1037.0 | 706.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 19.62 | 303.44 | -13.65 | 41.55 | 0.3366 | 872.0 | 701.1 | |
| 2.44 | 11.23 | 1.25 | 5.76 | 12.79 | 303.88 | -13.21 | 59.04 | 0.2610 | 1019.4 | 847.4 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 16.84 | 303.50 | -13.59 | 47.87 | 0.3046 | -827.0 | -534.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 10.41 | 303.81 | -13.28 | 67.72 | 0.2453 | 945.0 | 684.1 | |
| 5.66 | 8.70 | 2.90 | 4.47 | 12.60 | 303.58 | -13.51 | 60.21 | 0.2639 | 972.6 | 638.3 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 13.32 | 303.38 | -13.71 | 58.19 | 0.2726 | 821.0 | 606.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 10.26 | 303.41 | -13.68 | 68.87 | 0.2506 | 849.0 | 639.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 13.28 | 303.13 | -13.96 | 58.74 | 0.2759 | 784.0 | 686.9 | |
| 1.57 | 2.09 | 0.80 | 1.07 | 11.24 | 303.14 | -13.94 | 65.62 | 0.2607 | -924.4 | -859.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 11.81 | 303.12 | -13.97 | 63.66 | 0.2649 | -648.0 | -461.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 12.80 | 302.90 | -14.18 | 60.68 | 0.2753 | -640.0 | -438.3 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 11.73 | 302.30 | -14.79 | 65.10 | 0.2767 | -897.0 | -652.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 15.56 | 302.02 | -15.07 | 53.98 | 0.3110 | -894.0 | -632.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 12.62 | 301.84 | -15.25 | 62.85 | 0.2897 | -729.0 | -491.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 13.07 | 301.72 | -15.37 | 61.64 | 0.2948 | 954.0 | 713.1 | |
| 2.35 | 4.53 | 1.21 | 2.33 | 9.11 | 301.74 | -15.35 | 74.86 | 0.2719 | 973.5 | 817.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 12.19 | 301.55 | -15.54 | 64.61 | 0.2912 | -638.0 | -456.8 | |
| 0.00 | 3.13 | 0.00 | 1.61 | 9.01 | 301.46 | -15.63 | 75.43 | 0.2761 | 964.0 | 631.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 14.96 | 301.07 | -16.02 | 57.14 | 0.3187 | 927.0 | 738.6 | |
| 0.00 | 11.84 | 0.00 | 6.18 | 14.34 | 300.70 | -16.39 | 59.38 | 0.3190 | 820.0 | 817.0 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 13.26 | 300.65 | -16.44 | 62.55 | 0.3117 | 877.0 | 656.9 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 13.92 | 300.60 | -16.48 | 60.71 | 0.3172 | 984.0 | 805.3 | |
| 16.80 | 60.22 | 8.76 | 31.40 | 12.86 | 300.33 | -16.76 | 64.14 | 0.3138 | 1223.4 | 676.5 | |
| 0.00 | 9.66 | 0.00 | 5.06 | 14.03 | 300.18 | -16.91 | 60.97 | 0.3241 | 662.0 | 835.2 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 12.04 | 300.29 | -16.80 | 66.62 | 0.3094 | 981.0 | 832.4 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 16.39 | 299.95 | -17.14 | 55.10 | 0.3462 | 846.0 | 678.6 | |
| 7.31 | -76.00 | 3.82 | -76.00 | 12.76 | 299.92 | -17.17 | 64.92 | 0.3193 | 1108.2 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.22 | 9.40 | 300.03 | -17.06 | 75.21 | 0.3007 | 1029.0 | 861.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 14.11 | 299.72 | -17.37 | 61.35 | 0.3313 | 563.0 | 491.3 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 13.96 | 299.67 | -17.42 | 61.83 | 0.3310 | 1042.0 | 945.3 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 13.53 | 299.70 | -17.39 | 62.96 | 0.3276 | 772.0 | 669.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 9.63 | 299.92 | -17.17 | 74.52 | 0.3033 | 1059.0 | 801.3 | |
| 0.00 | 8.88 | 0.00 | 4.64 | 12.12 | 299.77 | -17.32 | 66.96 | 0.3177 | 460.0 | 422.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 13.38 | 299.68 | -17.41 | 63.41 | 0.3269 | 921.0 | 721.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 9.27 | 299.91 | -17.18 | 75.70 | 0.3022 | 843.0 | 761.9 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 12.90 | 299.59 | -17.50 | 64.90 | 0.3251 | 1033.0 | 904.4 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 13.01 | 299.45 | -17.64 | 64.72 | 0.3279 | 755.0 | 583.3 | |
| 1.74 | 84.68 | 0.91 | 44.40 | 12.71 | 299.38 | -17.71 | 65.67 | 0.3271 | 1177.4 | 838.5 | |
| 2.70 | -91.00 | 1.41 | -91.00 | 11.75 | 299.38 | -17.71 | 68.46 | 0.3216 | 1028.7 | 999999 | |
| 1.31 | -91.00 | 0.68 | -91.00 | 12.92 | 299.30 | -17.79 | 65.16 | 0.3296 | 835.6 | 999999 | |
| 1.57 | -91.00 | 0.82 | -91.00 | 12.53 | 299.29 | -17.79 | 66.28 | 0.3273 | 1156.2 | 999999 | |
| 7.57 | 18.19 | 3.99 | 9.58 | 14.24 | 299.10 | -17.99 | 61.76 | 0.3413 | 895.4 | 779.1 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 13.91 | 299.03 | -18.06 | 62.74 | 0.3400 | 804.0 | 643.0 | |
| 1.22 | -91.00 | 0.64 | -91.00 | 12.58 | 299.07 | -18.02 | 66.37 | 0.3311 | 1067.5 | 999999 | |
| 9.40 | -91.00 | 4.94 | -91.00 | 12.85 | 298.98 | -18.11 | 65.70 | 0.3339 | 954.0 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 11.47 | 299.08 | -18.01 | 69.57 | 0.3248 | 905.0 | 718.0 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 12.22 | 298.90 | -18.19 | 67.58 | 0.3315 | 767.0 | 800.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.14 | 298.94 | -18.15 | 70.68 | 0.3253 | 803.0 | 646.3 | |
| 3.57 | -91.00 | 1.87 | -91.00 | 12.42 | 298.82 | -18.27 | 67.07 | 0.3339 | 954.5 | 999999 | |
| 0.00 | 3.05 | 0.00 | 1.61 | 14.08 | 298.63 | -18.46 | 62.76 | 0.3470 | 678.0 | 417.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.19 | 298.78 | -18.31 | 70.66 | 0.3281 | 568.0 | 541.9 | |
| 3.48 | 8.18 | 1.84 | 4.32 | 13.62 | 298.53 | -18.55 | 64.07 | 0.3454 | 889.2 | 659.4 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 12.24 | 298.61 | -18.48 | 67.80 | 0.3360 | 704.0 | 585.0 | |
| 0.00 | 3.13 | 0.00 | 1.65 | 12.96 | 298.52 | -18.57 | 65.89 | 0.3415 | 747.0 | 645.6 | |
| 2.18 | 3.39 | 1.14 | 1.78 | 11.96 | 298.43 | -18.65 | 68.74 | 0.3372 | 858.7 | 852.3 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 13.43 | 298.19 | -18.90 | 64.95 | 0.3492 | 752.0 | 599.9 | |
| 0.00 | 5.40 | 0.00 | 2.84 | 12.47 | 298.20 | -18.88 | 67.55 | 0.3434 | 681.0 | 658.0 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 12.80 | 298.11 | -18.97 | 66.74 | 0.3466 | 895.0 | 771.7 | |
| 0.00 | 5.57 | 0.00 | 2.95 | 13.61 | 297.95 | -19.14 | 64.74 | 0.3539 | 672.0 | 636.3 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 12.64 | 297.90 | -19.19 | 67.37 | 0.3490 | 542.0 | 427.0 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.81 | 297.59 | -19.49 | 67.20 | 0.3545 | 648.0 | 517.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 12.92 | 297.36 | -19.73 | 67.11 | 0.3587 | 582.0 | 462.9 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 13.42 | 296.83 | -20.26 | 66.32 | 0.3694 | 852.0 | 603.0 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 15.08 | 296.60 | -20.48 | 62.44 | 0.3828 | 784.0 | 643.7 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.55 | 296.33 | -20.76 | 63.97 | 0.3835 | 725.0 | 546.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
