SDO HMI 2011-10-23 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.64 | 0.00 | 7.47 | 17.37 | 323.05 | 5.97 | 334.86 | 0.2407 | 513.6 | 517.0 | |
|
previous
or next observation for the same group /

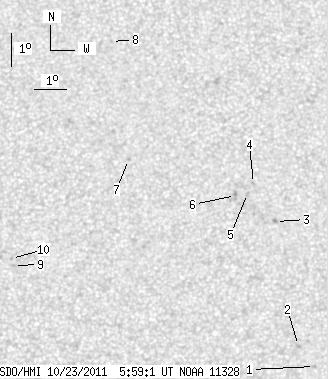

back to the solar disc SDO HMI 2011-10-23 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.75 | 13.31 | 326.07 | 8.98 | 312.95 | 0.2086 | 907.0 | 715.6 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 13.95 | 325.60 | 8.51 | 316.70 | 0.2104 | 903.0 | 776.9 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 17.72 | 325.03 | 7.95 | 328.75 | 0.2549 | 931.0 | 723.5 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 18.90 | 324.39 | 7.30 | 333.08 | 0.2667 | 778.0 | 664.6 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 18.59 | 324.18 | 7.10 | 333.17 | 0.2606 | 792.0 | 641.4 | |
| 0.00 | 2.44 | 0.00 | 1.25 | 18.53 | 323.80 | 6.71 | 334.32 | 0.2569 | 992.0 | 782.8 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.67 | 320.44 | 3.36 | 347.52 | 0.2564 | 852.0 | 680.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 23.34 | 319.98 | 2.89 | 351.52 | 0.3155 | 737.0 | 661.6 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 16.43 | 316.81 | -0.28 | 1.39 | 0.1950 | -862.0 | -602.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 16.64 | 316.74 | -0.34 | 1.67 | 0.1987 | -894.0 | -695.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
