SDO HMI 2011-10-23 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.54 | 365.13 | 50.20 | 230.59 | 15.53 | 279.17 | -37.37 | 71.36 | 0.6187 | -309.7 | -104.6 | |
|
previous
or next observation for the same group /

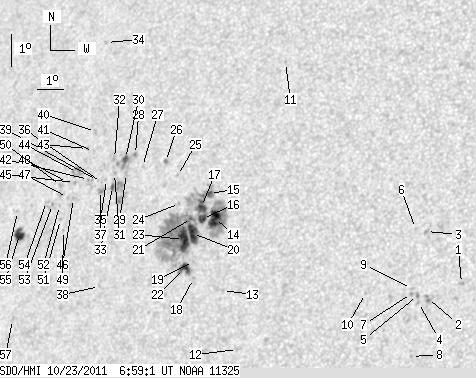

back to the solar disc SDO HMI 2011-10-23 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.07 | 14.12 | 289.79 | -26.75 | 69.41 | 0.4682 | -962.0 | -748.9 | |
| 0.00 | 2.70 | 0.00 | 1.52 | 13.63 | 288.68 | -27.86 | 71.02 | 0.4822 | -906.0 | -853.2 | |
| 0.00 | 2.09 | 0.00 | 1.19 | 15.64 | 288.36 | -28.18 | 67.21 | 0.4952 | -880.0 | -707.9 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 13.49 | 288.38 | -28.16 | 71.44 | 0.4860 | -795.0 | -645.2 | |
| 0.00 | 2.35 | 0.00 | 1.33 | 13.70 | 288.32 | -28.22 | 71.05 | 0.4877 | -941.0 | -699.1 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 15.72 | 287.97 | -28.58 | 67.30 | 0.5011 | -596.0 | -468.8 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 13.75 | 288.11 | -28.43 | 71.05 | 0.4910 | -780.0 | -655.0 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 11.86 | 288.34 | -28.20 | 74.76 | 0.4813 | -679.0 | -521.4 | |
| 0.00 | 1.74 | 0.00 | 0.99 | 13.90 | 288.09 | -28.45 | 70.76 | 0.4919 | -643.0 | -483.6 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 13.68 | 286.49 | -30.05 | 71.92 | 0.5138 | -685.0 | -509.2 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 20.56 | 282.19 | -34.35 | 62.15 | 0.5998 | -518.0 | -433.0 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 11.78 | 282.13 | -34.41 | 76.81 | 0.5704 | -671.0 | -468.0 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 13.52 | 281.30 | -35.25 | 74.05 | 0.5858 | -706.0 | -470.2 | |
| 12.01 | 254.54 | 7.43 | 159.05 | 15.67 | 280.59 | -35.95 | 70.70 | 0.6012 | -1190.4 | -281.6 | |
| 2.78 | -14.00 | 1.73 | -14.00 | 16.42 | 280.24 | -36.30 | 69.62 | 0.6081 | -815.7 | 999999 | |
| 5.57 | -14.00 | 3.46 | -14.00 | 15.65 | 280.13 | -36.41 | 70.90 | 0.6071 | -924.7 | 999999 | |
| 8.53 | -14.00 | 5.32 | -14.00 | 16.01 | 280.02 | -36.52 | 70.36 | 0.6097 | -786.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 13.83 | 280.14 | -36.40 | 73.87 | 0.6021 | -781.0 | -611.9 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 14.34 | 280.05 | -36.49 | 73.06 | 0.6046 | -667.0 | -622.6 | |
| 13.75 | -14.00 | 8.57 | -14.00 | 15.18 | 279.84 | -36.70 | 71.76 | 0.6095 | -976.2 | 999999 | |
| 1.48 | -14.00 | 0.93 | -14.00 | 15.63 | 279.71 | -36.83 | 71.08 | 0.6125 | -643.8 | 999999 | |
| 6.53 | -14.00 | 4.06 | -14.00 | 14.11 | 279.74 | -36.80 | 73.52 | 0.6081 | -899.4 | 999999 | |
| 16.19 | -14.00 | 10.12 | -14.00 | 14.98 | 279.53 | -37.01 | 72.17 | 0.6130 | -840.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 16.06 | 279.15 | -37.39 | 70.58 | 0.6210 | -217.0 | -206.1 | |
| 0.00 | 1.22 | 0.00 | 0.77 | 16.90 | 278.88 | -37.66 | 69.35 | 0.6270 | -619.0 | -481.5 | |
| 0.00 | 2.35 | 0.00 | 1.50 | 17.30 | 278.31 | -38.23 | 68.93 | 0.6355 | -665.0 | -517.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 17.09 | 277.44 | -39.11 | 69.53 | 0.6458 | -313.0 | -271.7 | |
| 0.00 | 1.57 | 0.00 | 1.02 | 17.44 | 277.06 | -39.48 | 69.13 | 0.6515 | 757.0 | 638.5 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 16.85 | 276.85 | -39.69 | 70.09 | 0.6524 | -481.0 | -292.4 | |
| 2.78 | 11.31 | 1.82 | 7.40 | 17.30 | 276.69 | -39.85 | 69.46 | 0.6556 | 406.4 | 88.4 | |
| 0.00 | 1.48 | 0.00 | 0.97 | 16.82 | 276.37 | -40.17 | 70.27 | 0.6583 | 725.0 | 580.9 | |
| 0.00 | 2.52 | 0.00 | 1.66 | 17.27 | 276.25 | -40.29 | 69.63 | 0.6610 | 748.0 | 688.6 | |
| 2.00 | 19.41 | 1.31 | 12.67 | 16.42 | 276.39 | -40.15 | 70.86 | 0.6570 | 811.9 | 562.7 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 20.79 | 274.86 | -41.69 | 65.02 | 0.6883 | 685.0 | 589.6 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 16.62 | 276.09 | -40.45 | 70.65 | 0.6612 | 335.0 | 423.2 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 16.52 | 275.91 | -40.63 | 70.86 | 0.6632 | 730.0 | 605.4 | |
| 0.00 | 3.74 | 0.00 | 2.47 | 16.27 | 275.93 | -40.61 | 71.21 | 0.6623 | 678.0 | 625.5 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 13.39 | 276.54 | -40.00 | 75.43 | 0.6484 | 578.0 | 512.9 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 16.57 | 275.73 | -40.81 | 70.83 | 0.6655 | 681.0 | 605.0 | |
| 0.00 | 1.65 | 0.00 | 1.11 | 18.05 | 275.25 | -41.29 | 68.81 | 0.6753 | 698.0 | 608.2 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 17.44 | 275.34 | -41.20 | 69.67 | 0.6726 | 380.0 | 298.5 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 16.58 | 275.36 | -41.18 | 70.92 | 0.6701 | 698.0 | 638.6 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 17.51 | 275.06 | -41.48 | 69.64 | 0.6761 | 673.0 | 555.8 | |
| 0.00 | 9.14 | 0.00 | 6.13 | 16.76 | 274.85 | -41.69 | 70.79 | 0.6767 | 765.0 | 626.0 | |
| 0.00 | 1.74 | 0.00 | 1.17 | 16.45 | 274.81 | -41.73 | 71.25 | 0.6765 | 703.0 | 550.3 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 15.97 | 274.89 | -41.65 | 71.94 | 0.6744 | 676.0 | 590.9 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 15.98 | 274.64 | -41.90 | 71.98 | 0.6775 | 665.0 | 578.0 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 16.44 | 274.52 | -42.02 | 71.35 | 0.6800 | 536.0 | 454.3 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 14.98 | 274.72 | -41.82 | 73.42 | 0.6744 | 579.0 | 493.5 | |
| 0.00 | 2.52 | 0.00 | 1.71 | 16.33 | 274.25 | -42.29 | 71.57 | 0.6829 | 717.0 | 450.0 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 15.30 | 274.52 | -42.02 | 73.00 | 0.6775 | 546.0 | 476.8 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 15.72 | 274.37 | -42.17 | 72.42 | 0.6802 | 666.0 | 509.7 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 15.74 | 274.07 | -42.47 | 72.47 | 0.6839 | 715.0 | 619.5 | |
| 0.00 | 1.57 | 0.00 | 1.06 | 15.81 | 273.80 | -42.74 | 72.42 | 0.6873 | 479.0 | 467.6 | |
| 7.92 | 9.92 | 5.45 | 6.82 | 14.75 | 272.92 | -43.62 | 74.13 | 0.6959 | 742.1 | 609.1 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 15.44 | 272.66 | -43.88 | 73.21 | 0.7003 | 495.0 | 480.4 | |
| 0.00 | 1.83 | 0.00 | 1.24 | 12.19 | 273.21 | -43.33 | 77.77 | 0.6886 | 723.0 | 564.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
