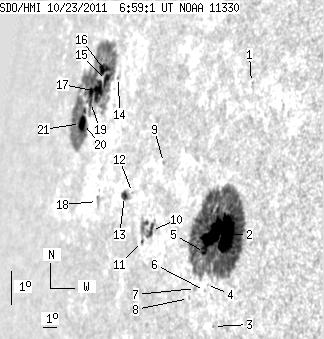

SDO HMI 2011-10-23 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.64 | 601.58 | 129.12 | 761.78 | 7.71 | 249.47 | -67.07 | 83.89 | 0.9158 | -180.3 | -85.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.61 | 10.84 | 255.51 | -61.03 | 80.49 | 0.8732 | -291.0 | -284.7 | |
| 58.91 | 351.92 | 61.00 | 366.64 | 6.21 | 254.82 | -61.72 | 85.78 | 0.8798 | -802.4 | -204.6 | |
| 0.00 | 1.04 | 0.00 | 1.09 | 3.44 | 254.81 | -61.73 | 88.91 | 0.8813 | 330.0 | 303.9 | |
| 0.00 | 0.61 | 0.00 | 0.64 | 4.65 | 254.19 | -62.35 | 87.50 | 0.8856 | -252.0 | -259.6 | |
| 1.74 | -2.00 | 1.86 | -2.00 | 5.59 | 253.90 | -62.64 | 86.42 | 0.8876 | -345.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.74 | 4.47 | 254.09 | -62.45 | 87.70 | 0.8865 | -189.0 | -172.4 | |
| 0.00 | 1.83 | 0.00 | 1.98 | 4.48 | 253.50 | -63.04 | 87.65 | 0.8913 | 247.0 | 148.2 | |
| 0.00 | 0.44 | 0.00 | 0.48 | 4.14 | 253.08 | -63.46 | 87.99 | 0.8947 | 361.0 | 285.4 | |
| 0.00 | 1.39 | 0.00 | 1.67 | 8.01 | 250.41 | -66.13 | 83.56 | 0.9130 | -98.0 | -111.1 | |
| 4.18 | 18.27 | 5.11 | 22.73 | 5.94 | 250.09 | -66.45 | 85.81 | 0.9160 | -395.4 | 181.5 | |
| 0.70 | -10.00 | 0.87 | -10.00 | 5.55 | 249.41 | -67.13 | 86.19 | 0.9208 | 207.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.14 | 6.93 | 248.32 | -68.22 | 84.63 | 0.9275 | -266.0 | -139.7 | |
| 4.35 | 6.35 | 5.86 | 8.53 | 6.76 | 247.70 | -68.84 | 84.78 | 0.9315 | 566.6 | 443.7 | |
| 0.00 | 1.65 | 0.00 | 2.42 | 10.19 | 245.77 | -70.77 | 81.03 | 0.9423 | 479.0 | 447.5 | |
| 4.96 | 212.16 | 7.66 | 347.51 | 10.01 | 244.71 | -71.83 | 81.18 | 0.9483 | 686.3 | 4.6 | |
| 6.09 | -15.00 | 9.55 | -15.00 | 10.31 | 244.34 | -72.20 | 80.85 | 0.9502 | 481.7 | 999999 | |
| 12.79 | -15.00 | 20.48 | -15.00 | 9.62 | 244.02 | -72.52 | 81.57 | 0.9521 | 452.3 | 999999 | |
| 0.00 | 3.74 | 0.00 | 5.60 | 6.41 | 245.41 | -71.13 | 85.02 | 0.9453 | 351.0 | 264.5 | |
| 1.48 | -15.00 | 2.43 | -15.00 | 9.24 | 243.50 | -73.04 | 81.94 | 0.9549 | 252.8 | 999999 | |
| 5.92 | -15.00 | 9.97 | -15.00 | 8.57 | 243.11 | -73.43 | 82.63 | 0.9570 | 388.6 | 999999 | |
| 2.52 | -15.00 | 4.33 | -15.00 | 8.54 | 242.79 | -73.75 | 82.64 | 0.9586 | -289.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
