SDO HMI 2011-10-23 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.96 | 0.00 | 5.95 | 24.14 | 330.75 | 15.30 | 324.10 | 0.4098 | -593.7 | -500.0 | |
|
previous
or next observation for the same group /

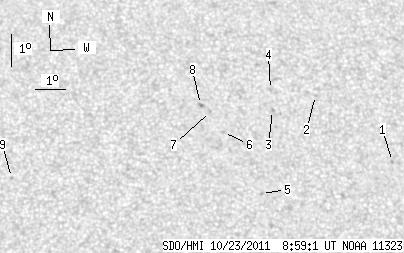

back to the solar disc SDO HMI 2011-10-23 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.63 | 22.98 | 335.90 | 20.45 | 313.96 | 0.4488 | -754.0 | -624.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 25.13 | 333.57 | 18.12 | 320.74 | 0.4469 | -631.0 | -438.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 24.69 | 332.02 | 16.58 | 322.42 | 0.4268 | -810.0 | -674.7 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 25.36 | 332.05 | 16.60 | 323.41 | 0.4349 | -677.0 | -481.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 22.10 | 331.32 | 15.88 | 319.19 | 0.3895 | -739.0 | -556.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 24.04 | 330.27 | 14.82 | 324.31 | 0.4022 | -742.0 | -620.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 24.71 | 329.91 | 14.46 | 325.99 | 0.4074 | -770.0 | -619.3 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 24.94 | 329.60 | 14.15 | 326.88 | 0.4075 | -975.0 | -792.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 22.75 | 323.13 | 7.68 | 337.78 | 0.3275 | 755.0 | 585.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
