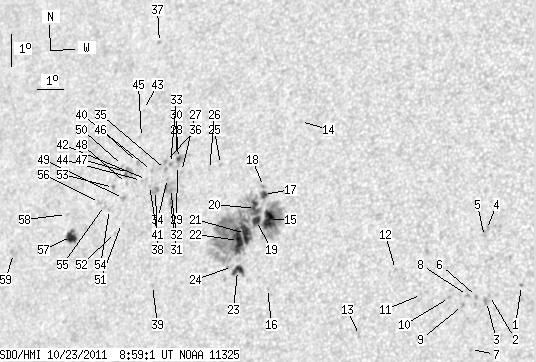

SDO HMI 2011-10-23 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.18 | 365.28 | 44.30 | 227.27 | 15.57 | 279.29 | -36.15 | 70.87 | 0.6029 | -259.3 | -104.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.72 | 14.10 | 289.87 | -25.57 | 68.74 | 0.4511 | -786.0 | -665.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 13.75 | 288.82 | -26.63 | 70.09 | 0.4649 | -782.0 | -649.2 | |
| 0.00 | 3.65 | 0.00 | 2.04 | 13.57 | 288.74 | -26.71 | 70.52 | 0.4654 | -956.0 | -827.4 | |
| 0.00 | 2.61 | 0.00 | 1.47 | 15.74 | 288.45 | -27.00 | 66.27 | 0.4792 | -622.0 | -611.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 15.52 | 288.41 | -27.04 | 66.72 | 0.4787 | -734.0 | -585.5 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 13.70 | 288.38 | -27.07 | 70.43 | 0.4712 | -950.0 | -800.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 12.10 | 288.36 | -27.09 | 73.77 | 0.4656 | -627.0 | -480.4 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 13.72 | 288.06 | -27.38 | 70.56 | 0.4758 | -740.0 | -629.6 | |
| 0.00 | 1.57 | 0.00 | 0.88 | 13.41 | 287.93 | -27.52 | 71.26 | 0.4765 | -789.0 | -603.1 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 13.64 | 287.45 | -28.00 | 71.05 | 0.4843 | -746.0 | -644.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 13.68 | 286.47 | -28.98 | 71.42 | 0.4987 | -521.0 | -441.1 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 14.40 | 285.44 | -30.00 | 70.53 | 0.5158 | -737.0 | -589.8 | |
| 0.00 | 1.91 | 0.00 | 1.11 | 12.36 | 284.45 | -31.00 | 74.78 | 0.5235 | -418.0 | -402.3 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 18.72 | 281.13 | -34.32 | 65.05 | 0.5911 | -666.0 | -559.1 | |
| 14.88 | 251.36 | 9.08 | 154.95 | 15.69 | 280.57 | -34.88 | 70.28 | 0.5871 | -1110.2 | -274.7 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 13.61 | 280.91 | -34.54 | 73.68 | 0.5764 | -726.0 | -556.2 | |
| 3.57 | -15.00 | 2.19 | -15.00 | 16.43 | 280.22 | -35.22 | 69.18 | 0.5941 | -765.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 16.67 | 280.17 | -35.27 | 68.81 | 0.5956 | -725.0 | -599.5 | |
| 5.74 | -15.00 | 3.52 | -15.00 | 15.63 | 280.12 | -35.33 | 70.54 | 0.5928 | -917.1 | 999999 | |
| 6.96 | -15.00 | 4.28 | -15.00 | 15.99 | 280.01 | -35.44 | 69.98 | 0.5955 | -795.3 | 999999 | |
| 10.18 | -15.00 | 6.27 | -15.00 | 15.22 | 279.78 | -35.66 | 71.34 | 0.5961 | -1032.0 | 999999 | |
| 13.14 | -15.00 | 8.11 | -15.00 | 14.99 | 279.56 | -35.89 | 71.78 | 0.5984 | -823.6 | 999999 | |
| 6.44 | 8.87 | 3.96 | 5.45 | 14.09 | 279.69 | -35.76 | 73.23 | 0.5942 | -823.3 | -718.9 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 14.20 | 279.48 | -35.97 | 73.11 | 0.5973 | -347.0 | -441.5 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 17.25 | 278.38 | -37.07 | 68.57 | 0.6207 | -607.0 | -478.5 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 17.08 | 277.99 | -37.46 | 68.98 | 0.6251 | -276.0 | -283.2 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 16.96 | 276.90 | -38.54 | 69.54 | 0.6385 | -259.0 | -204.1 | |
| 1.57 | 5.22 | 1.01 | 3.36 | 17.35 | 276.69 | -38.76 | 69.02 | 0.6423 | 462.9 | 416.4 | |
| 0.00 | 1.48 | 0.00 | 0.95 | 17.13 | 276.70 | -38.75 | 69.34 | 0.6415 | -154.0 | -93.8 | |
| 0.00 | 2.00 | 0.00 | 1.29 | 17.46 | 276.58 | -38.87 | 68.88 | 0.6440 | 505.0 | 624.8 | |
| 0.00 | 3.57 | 0.00 | 2.29 | 16.03 | 276.69 | -38.76 | 71.04 | 0.6386 | 807.0 | 743.1 | |
| 0.00 | 10.27 | 0.00 | 6.61 | 16.42 | 276.59 | -38.85 | 70.46 | 0.6408 | 911.0 | 672.9 | |
| 0.00 | 1.57 | 0.00 | 1.01 | 17.18 | 276.41 | -39.04 | 69.37 | 0.6453 | 541.0 | 326.4 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 16.72 | 276.40 | -39.05 | 70.07 | 0.6441 | 803.0 | 730.8 | |
| 0.00 | 1.65 | 0.00 | 1.07 | 16.98 | 276.25 | -39.19 | 69.71 | 0.6467 | 768.0 | 610.1 | |
| 0.00 | 1.57 | 0.00 | 1.02 | 17.23 | 276.19 | -39.25 | 69.37 | 0.6481 | 844.0 | 653.6 | |
| 0.00 | 1.48 | 0.00 | 0.99 | 20.84 | 274.90 | -40.55 | 64.51 | 0.6754 | 779.0 | 644.7 | |
| 0.00 | 4.70 | 0.00 | 3.05 | 16.33 | 276.01 | -39.44 | 70.78 | 0.6479 | 701.0 | 633.4 | |
| 0.00 | 1.39 | 0.00 | 0.89 | 13.46 | 276.52 | -38.93 | 75.07 | 0.6348 | 500.0 | 402.7 | |
| 0.00 | 1.31 | 0.00 | 0.85 | 16.92 | 275.70 | -39.75 | 69.98 | 0.6533 | 658.0 | 594.5 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 16.46 | 275.74 | -39.71 | 70.66 | 0.6517 | 673.0 | 520.6 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 16.64 | 275.57 | -39.88 | 70.44 | 0.6542 | 450.0 | 368.5 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 18.75 | 274.87 | -40.57 | 67.53 | 0.6688 | 564.0 | 531.9 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 16.60 | 275.38 | -40.07 | 70.56 | 0.6565 | 740.0 | 659.8 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 17.90 | 275.03 | -40.41 | 68.73 | 0.6643 | 189.0 | 253.0 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 17.13 | 275.08 | -40.37 | 69.86 | 0.6617 | 709.0 | 599.4 | |
| 0.00 | 6.44 | 0.00 | 4.26 | 16.81 | 274.79 | -40.66 | 70.42 | 0.6643 | 738.0 | 633.5 | |
| 0.00 | 1.57 | 0.00 | 1.03 | 16.47 | 274.79 | -40.65 | 70.92 | 0.6634 | 679.0 | 535.3 | |
| 0.00 | 2.09 | 0.00 | 1.38 | 16.01 | 274.79 | -40.66 | 71.60 | 0.6624 | 761.0 | 684.0 | |
| 0.00 | 1.48 | 0.00 | 0.98 | 17.01 | 274.49 | -40.96 | 70.21 | 0.6685 | 433.0 | 358.1 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 15.26 | 274.89 | -40.56 | 72.71 | 0.6593 | 614.0 | 607.8 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 14.97 | 274.71 | -40.74 | 73.18 | 0.6610 | 644.0 | 505.0 | |
| 0.00 | 1.48 | 0.00 | 0.98 | 16.32 | 274.30 | -41.15 | 71.28 | 0.6691 | 666.0 | 585.2 | |
| 0.00 | 1.31 | 0.00 | 0.87 | 15.65 | 274.30 | -41.15 | 72.27 | 0.6675 | 559.0 | 499.7 | |
| 0.00 | 2.35 | 0.00 | 1.56 | 15.76 | 274.07 | -41.38 | 72.17 | 0.6707 | 755.0 | 552.7 | |
| 0.00 | 2.96 | 0.00 | 1.98 | 15.84 | 273.84 | -41.61 | 72.11 | 0.6736 | 522.0 | 468.4 | |
| 8.70 | 10.53 | 5.88 | 7.11 | 14.74 | 272.94 | -42.51 | 73.91 | 0.6824 | 729.0 | 607.1 | |
| 0.00 | 0.70 | 0.00 | 0.47 | 15.39 | 272.57 | -42.88 | 73.05 | 0.6882 | 613.0 | 463.5 | |
| 0.00 | 3.48 | 0.00 | 2.44 | 14.08 | 270.62 | -44.82 | 75.27 | 0.7093 | 637.0 | 454.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
