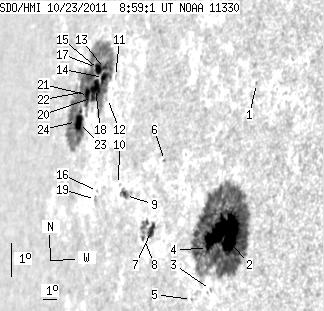

SDO HMI 2011-10-23 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.07 | 607.84 | 123.33 | 732.84 | 7.71 | 249.56 | -65.89 | 83.94 | 0.9075 | -196.8 | -89.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.93 | 10.81 | 255.62 | -59.83 | 80.52 | 0.8630 | -213.0 | -246.8 | |
| 60.73 | 364.47 | 60.73 | 366.27 | 6.22 | 254.80 | -60.65 | 85.80 | 0.8708 | -755.6 | -212.3 | |
| 0.00 | 0.96 | 0.00 | 0.98 | 4.50 | 254.28 | -61.16 | 87.75 | 0.8759 | -366.0 | -350.7 | |
| 1.22 | -2.00 | 1.25 | -2.00 | 5.70 | 253.90 | -61.55 | 86.35 | 0.8786 | -317.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.83 | 4.11 | 253.13 | -62.32 | 88.11 | 0.8857 | 284.0 | 258.9 | |
| 0.00 | 0.61 | 0.00 | 0.70 | 8.07 | 250.42 | -65.03 | 83.54 | 0.9051 | -144.0 | -73.1 | |
| 6.35 | 8.09 | 7.46 | 9.50 | 5.93 | 250.05 | -65.40 | 85.88 | 0.9085 | -342.5 | -281.2 | |
| 0.44 | 8.35 | 0.52 | 10.01 | 5.62 | 249.61 | -65.84 | 86.19 | 0.9118 | 68.6 | 200.6 | |
| 2.26 | 6.53 | 2.90 | 8.38 | 6.80 | 247.85 | -67.60 | 84.81 | 0.9235 | 675.6 | 427.7 | |
| 0.00 | 0.44 | 0.00 | 0.57 | 7.07 | 247.20 | -68.25 | 84.47 | 0.9277 | 298.0 | 305.4 | |
| 0.00 | 0.61 | 0.00 | 0.85 | 10.21 | 245.68 | -69.76 | 81.04 | 0.9364 | 614.0 | 547.4 | |
| 0.00 | 1.04 | 0.00 | 1.48 | 9.51 | 245.30 | -70.14 | 81.78 | 0.9388 | 257.0 | 257.3 | |
| 1.04 | 211.43 | 1.53 | 327.27 | 10.36 | 244.60 | -70.85 | 80.85 | 0.9427 | 654.4 | 14.7 | |
| 4.44 | -13.00 | 6.49 | -13.00 | 10.09 | 244.65 | -70.80 | 81.13 | 0.9425 | 700.7 | 999999 | |
| 3.65 | -13.00 | 5.49 | -13.00 | 10.29 | 244.07 | -71.38 | 80.91 | 0.9457 | 331.3 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.86 | 6.72 | 245.52 | -69.93 | 84.76 | 0.9383 | 308.0 | 298.3 | |
| 1.31 | -13.00 | 1.99 | -13.00 | 10.33 | 243.85 | -71.59 | 80.85 | 0.9469 | -181.6 | 999999 | |
| 9.40 | -13.00 | 14.12 | -13.00 | 9.71 | 244.09 | -71.36 | 81.52 | 0.9457 | 554.0 | 999999 | |
| 0.00 | 2.96 | 0.00 | 4.21 | 6.47 | 245.42 | -70.03 | 85.02 | 0.9389 | 404.0 | 288.2 | |
| 1.04 | -13.00 | 1.58 | -13.00 | 9.43 | 243.94 | -71.50 | 81.81 | 0.9466 | 533.3 | 999999 | |
| 3.05 | -13.00 | 4.72 | -13.00 | 9.45 | 243.54 | -71.91 | 81.77 | 0.9488 | 262.2 | 999999 | |
| 1.04 | -13.00 | 1.64 | -13.00 | 9.54 | 243.19 | -72.26 | 81.66 | 0.9507 | -191.6 | 999999 | |
| 5.66 | -13.00 | 8.98 | -13.00 | 8.59 | 243.07 | -72.38 | 82.65 | 0.9516 | 395.8 | 999999 | |
| 2.44 | -13.00 | 3.93 | -13.00 | 8.60 | 242.76 | -72.69 | 82.63 | 0.9532 | -201.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
