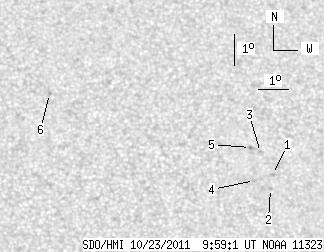

SDO HMI 2011-10-23 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.44 | 0.00 | 4.58 | 24.65 | 328.79 | 13.89 | 327.03 | 0.4040 | -528.0 | -399.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 0.99 | 24.05 | 330.23 | 15.33 | 323.46 | 0.4072 | -750.0 | -563.2 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 23.61 | 330.11 | 15.21 | 322.96 | 0.4007 | -819.0 | -578.6 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 24.76 | 329.91 | 15.01 | 325.11 | 0.4129 | -723.0 | -541.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 23.88 | 329.60 | 14.70 | 324.28 | 0.3991 | -826.0 | -645.7 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 24.92 | 329.59 | 14.69 | 325.91 | 0.4121 | -925.0 | -762.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 26.76 | 322.97 | 8.07 | 341.19 | 0.3904 | 875.0 | 693.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
