SDO HMI 2011-10-23 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.19 | 0.00 | 6.25 | 17.87 | 323.72 | 8.82 | 326.72 | 0.2656 | 873.8 | 744.2 | |
|
previous
or next observation for the same group /

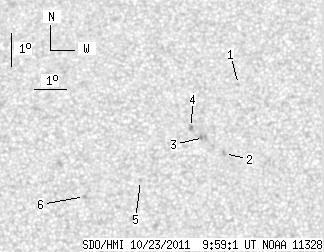

back to the solar disc SDO HMI 2011-10-23 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.27 | 19.78 | 325.54 | 10.64 | 325.51 | 0.3082 | 773.0 | 587.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.67 | 324.96 | 10.06 | 322.51 | 0.2747 | 932.0 | 671.8 | |
| 0.00 | 4.18 | 0.00 | 2.15 | 18.17 | 324.32 | 9.42 | 325.38 | 0.2750 | 677.0 | 778.9 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 18.48 | 323.96 | 9.05 | 327.07 | 0.2758 | 1006.0 | 783.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 16.88 | 322.27 | 7.37 | 328.83 | 0.2382 | 898.0 | 692.3 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 16.41 | 320.50 | 5.60 | 334.32 | 0.2169 | 957.0 | 775.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
