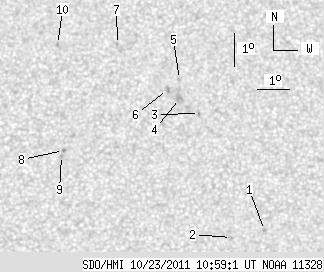

SDO HMI 2011-10-23 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.60 | 0.00 | 9.57 | 17.69 | 323.87 | 9.52 | 323.99 | 0.2718 | 830.8 | 696.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.54 | 14.10 | 326.80 | 12.45 | 306.82 | 0.2624 | 841.0 | 648.5 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 13.91 | 325.76 | 11.40 | 308.54 | 0.2465 | 865.0 | 624.0 | |
| 0.00 | 1.83 | 0.00 | 0.94 | 17.69 | 324.95 | 10.60 | 321.13 | 0.2805 | 865.0 | 697.0 | |
| 0.00 | 5.91 | 0.00 | 3.05 | 18.15 | 324.34 | 9.99 | 323.80 | 0.2804 | 918.0 | 774.4 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 18.74 | 324.38 | 10.02 | 324.96 | 0.2884 | 586.0 | 414.5 | |
| 0.00 | 2.87 | 0.00 | 1.48 | 18.44 | 323.98 | 9.62 | 325.40 | 0.2806 | 844.0 | 739.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 19.84 | 322.46 | 8.10 | 332.37 | 0.2872 | 755.0 | 556.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 16.61 | 320.61 | 6.26 | 332.20 | 0.2250 | 812.0 | 698.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 16.46 | 320.55 | 6.19 | 332.12 | 0.2222 | 870.0 | 749.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 19.86 | 320.54 | 6.19 | 338.19 | 0.2741 | 952.0 | 776.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
