SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.06 | 0.00 | 6.03 | 24.10 | 330.11 | 16.31 | 322.13 | 0.4203 | -506.6 | -409.9 | |
|
previous
or next observation for the same group /

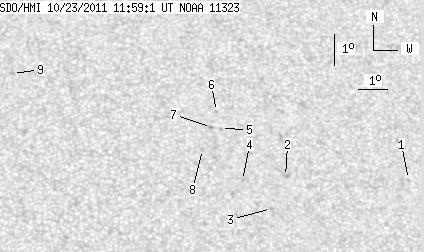

back to the solar disc SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.54 | 23.06 | 336.11 | 22.30 | 311.85 | 0.4707 | -581.0 | -428.0 | |
| 0.00 | 1.74 | 0.00 | 0.95 | 23.28 | 331.89 | 18.08 | 317.79 | 0.4261 | -239.0 | -381.1 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 22.29 | 331.28 | 17.47 | 316.97 | 0.4089 | -726.0 | -540.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 23.19 | 330.41 | 16.61 | 319.92 | 0.4098 | -676.0 | -606.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 24.85 | 329.88 | 16.08 | 323.47 | 0.4240 | -818.0 | -679.6 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 25.39 | 329.82 | 16.01 | 324.40 | 0.4299 | -693.0 | -548.4 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 24.89 | 329.58 | 15.77 | 324.03 | 0.4216 | -974.0 | -775.1 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 24.20 | 329.18 | 15.38 | 323.62 | 0.4096 | -688.0 | -436.2 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 26.73 | 323.02 | 9.21 | 338.76 | 0.3964 | 836.0 | 658.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
