SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.92 | 433.46 | 61.22 | 254.95 | -21.42 | 332.91 | 19.11 | 214.46 | 0.5415 | -362.5 | -153.2 | |
|
previous
or next observation for the same group /

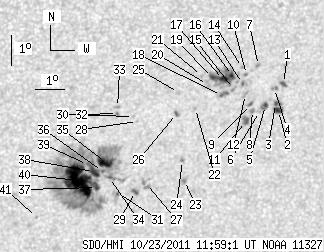

back to the solar disc SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.09 | 2.96 | 1.25 | 1.77 | -19.17 | 338.08 | 24.27 | 223.78 | 0.5634 | 781.1 | 658.9 | |
| 4.87 | 9.39 | 2.94 | 5.66 | -20.05 | 338.05 | 24.24 | 222.61 | 0.5719 | 671.8 | 704.8 | |
| 1.65 | -2.00 | 0.99 | -2.00 | -19.82 | 337.91 | 24.10 | 222.75 | 0.5681 | 891.8 | 999999 | |
| 0.00 | 3.13 | 0.00 | 1.87 | -19.32 | 337.79 | 23.99 | 223.25 | 0.5620 | 978.0 | 787.6 | |
| 1.91 | 4.78 | 1.15 | 2.87 | -19.87 | 337.57 | 23.76 | 222.29 | 0.5654 | 824.9 | 683.9 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -20.06 | 337.39 | 23.58 | 221.84 | 0.5656 | 384.0 | 313.1 | |
| 0.00 | 1.74 | 0.00 | 1.03 | -18.54 | 337.12 | 23.32 | 223.48 | 0.5476 | 703.0 | 674.3 | |
| 0.00 | 2.52 | 0.00 | 1.51 | -20.02 | 337.14 | 23.33 | 221.60 | 0.5628 | 761.0 | 611.1 | |
| 1.39 | 2.44 | 0.83 | 1.45 | -19.82 | 337.07 | 23.27 | 221.77 | 0.5601 | 707.8 | 671.8 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -18.82 | 336.75 | 22.95 | 222.66 | 0.5467 | 854.0 | 751.1 | |
| 3.30 | 5.39 | 1.98 | 3.23 | -20.37 | 336.95 | 23.15 | 220.93 | 0.5647 | 605.2 | 664.2 | |
| 0.00 | 2.61 | 0.00 | 1.55 | -19.48 | 336.81 | 23.01 | 221.89 | 0.5541 | 870.0 | 633.3 | |
| 0.61 | 3.13 | 0.36 | 1.85 | -19.11 | 336.66 | 22.85 | 222.17 | 0.5488 | 649.3 | 610.8 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.59 | 336.58 | 22.78 | 222.76 | 0.5426 | 846.0 | 687.8 | |
| 0.00 | 2.26 | 0.00 | 1.34 | -19.27 | 336.37 | 22.57 | 221.62 | 0.5476 | 686.0 | 657.4 | |
| 1.39 | 38.88 | 0.82 | 22.84 | -18.84 | 336.28 | 22.47 | 222.05 | 0.5422 | 1028.9 | 741.2 | |
| 4.26 | -16.00 | 2.50 | -16.00 | -18.96 | 335.99 | 22.18 | 221.53 | 0.5406 | 1093.6 | 999999 | |
| 1.13 | 5.22 | 0.67 | 3.08 | -19.48 | 335.99 | 22.19 | 220.87 | 0.5462 | 531.3 | 495.7 | |
| 2.26 | -16.00 | 1.32 | -16.00 | -18.88 | 335.60 | 21.79 | 221.15 | 0.5360 | 1023.0 | 999999 | |
| 0.00 | 4.87 | 0.00 | 2.86 | -19.10 | 335.46 | 21.66 | 220.68 | 0.5371 | 197.0 | 288.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -18.80 | 335.22 | 21.41 | 220.76 | 0.5315 | 748.0 | 650.7 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -19.88 | 335.16 | 21.36 | 219.32 | 0.5426 | 754.0 | 652.4 | |
| 0.00 | 3.57 | 0.00 | 2.14 | -22.27 | 335.15 | 21.34 | 216.46 | 0.5688 | -801.0 | -630.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -21.59 | 334.97 | 21.17 | 217.01 | 0.5598 | -864.0 | -736.9 | |
| 0.00 | 2.00 | 0.00 | 1.17 | -19.33 | 334.51 | 20.70 | 219.15 | 0.5305 | 670.0 | 474.1 | |
| 1.48 | 1.83 | 0.87 | 1.07 | -20.02 | 334.54 | 20.73 | 218.32 | 0.5385 | 718.6 | 724.5 | |
| 0.00 | 6.44 | 0.00 | 3.84 | -22.33 | 333.84 | 20.04 | 214.73 | 0.5585 | -499.0 | -576.4 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -20.24 | 333.24 | 19.44 | 216.31 | 0.5294 | -580.0 | -427.7 | |
| 2.52 | 2.78 | 1.50 | 1.66 | -22.58 | 333.51 | 19.70 | 214.00 | 0.5587 | -664.0 | -677.7 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -20.07 | 333.09 | 19.28 | 216.29 | 0.5261 | -616.0 | -457.1 | |
| 0.61 | 6.00 | 0.36 | 3.57 | -22.63 | 332.93 | 19.12 | 213.18 | 0.5547 | -539.6 | -203.7 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -19.96 | 332.54 | 18.73 | 215.65 | 0.5199 | -731.0 | -671.9 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -19.76 | 332.51 | 18.71 | 215.86 | 0.5174 | -961.0 | -674.8 | |
| 1.39 | 308.65 | 0.82 | 181.03 | -22.08 | 332.54 | 18.74 | 213.25 | 0.5451 | -481.2 | -372.4 | |
| 9.74 | -34.00 | 5.71 | -34.00 | -21.57 | 332.34 | 18.53 | 213.52 | 0.5374 | -1010.2 | 999999 | |
| 1.04 | -34.00 | 0.61 | -34.00 | -21.87 | 332.28 | 18.47 | 213.10 | 0.5405 | -443.2 | 999999 | |
| 3.22 | -34.00 | 1.90 | -34.00 | -22.41 | 332.15 | 18.34 | 212.35 | 0.5458 | -577.5 | 999999 | |
| 7.31 | -34.00 | 4.29 | -34.00 | -21.86 | 331.97 | 18.17 | 212.69 | 0.5379 | -892.7 | 999999 | |
| 1.13 | -34.00 | 0.66 | -34.00 | -21.62 | 331.74 | 17.93 | 212.61 | 0.5332 | -970.4 | 999999 | |
| 50.62 | -34.00 | 29.69 | -34.00 | -22.15 | 331.50 | 17.70 | 211.71 | 0.5377 | -1132.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -23.36 | 330.24 | 16.43 | 208.67 | 0.5434 | 427.0 | 326.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
