SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.87 | 0.00 | 8.66 | 17.33 | 323.45 | 9.65 | 322.64 | 0.2693 | 832.6 | 717.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

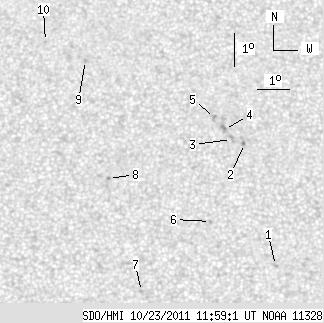

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.02 | 13.93 | 325.74 | 11.94 | 307.39 | 0.2538 | 874.0 | 647.0 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 17.64 | 324.98 | 11.17 | 319.60 | 0.2861 | 813.0 | 765.0 | |
| 0.00 | 3.04 | 0.00 | 1.57 | 17.77 | 324.57 | 10.76 | 320.92 | 0.2834 | 504.0 | 664.5 | |
| 0.00 | 2.70 | 0.00 | 1.39 | 18.08 | 324.36 | 10.56 | 322.15 | 0.2852 | 978.0 | 866.1 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 18.45 | 324.07 | 10.26 | 323.74 | 0.2870 | 934.0 | 737.9 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 15.29 | 323.77 | 9.96 | 316.57 | 0.2439 | 808.0 | 636.1 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 13.21 | 321.54 | 7.73 | 316.88 | 0.1925 | 894.0 | 723.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.64 | 320.63 | 6.82 | 330.19 | 0.2300 | 794.0 | 676.1 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 20.26 | 320.04 | 6.23 | 338.61 | 0.2806 | 892.0 | 683.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 20.86 | 318.78 | 4.98 | 343.29 | 0.2831 | 835.0 | 670.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
