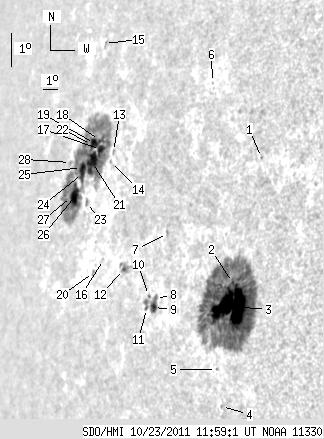

SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.26 | 651.68 | 124.43 | 739.28 | 7.78 | 249.56 | -64.24 | 83.93 | 0.8953 | -154.0 | -72.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.81 | 10.80 | 255.54 | -58.26 | 80.51 | 0.8491 | -292.0 | -268.8 | |
| 0.70 | 383.97 | 0.66 | 366.92 | 6.98 | 254.83 | -58.97 | 85.00 | 0.8559 | -424.0 | -209.9 | |
| 62.88 | -2.00 | 59.81 | -2.00 | 6.26 | 254.91 | -58.89 | 85.84 | 0.8554 | -715.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.92 | 3.25 | 254.74 | -59.06 | 89.34 | 0.8585 | 275.0 | 268.7 | |
| 0.00 | 0.70 | 0.00 | 0.67 | 4.33 | 254.33 | -59.48 | 88.06 | 0.8615 | -447.0 | -449.0 | |
| 0.00 | 0.96 | 0.00 | 1.00 | 12.78 | 251.79 | -62.02 | 78.27 | 0.8815 | -389.0 | -363.1 | |
| 0.00 | 1.74 | 0.00 | 1.89 | 8.10 | 250.47 | -63.34 | 83.55 | 0.8923 | -222.0 | -160.4 | |
| 0.26 | 14.35 | 0.29 | 15.95 | 6.12 | 250.15 | -63.66 | 85.75 | 0.8954 | -418.0 | -12.7 | |
| 5.39 | -8.00 | 5.96 | -8.00 | 5.85 | 250.07 | -63.73 | 86.06 | 0.8961 | -364.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.27 | 6.17 | 249.65 | -64.15 | 85.67 | 0.8991 | -63.0 | -49.9 | |
| 0.43 | -8.00 | 0.49 | -8.00 | 5.78 | 249.60 | -64.20 | 86.11 | 0.8997 | 204.6 | 999999 | |
| 1.04 | 6.44 | 1.26 | 7.73 | 6.79 | 247.70 | -66.11 | 84.88 | 0.9133 | 651.9 | 432.5 | |
| 0.00 | 1.48 | 0.00 | 1.92 | 10.19 | 245.70 | -68.11 | 81.11 | 0.9260 | 566.0 | 511.6 | |
| 0.00 | 0.78 | 0.00 | 1.02 | 9.85 | 245.60 | -68.20 | 81.47 | 0.9267 | 567.0 | 518.6 | |
| 0.00 | 0.87 | 0.00 | 1.26 | 13.27 | 243.19 | -70.61 | 77.75 | 0.9410 | -60.0 | -81.4 | |
| 0.00 | 0.78 | 0.00 | 1.01 | 6.96 | 246.10 | -67.71 | 84.62 | 0.9242 | 336.0 | 342.4 | |
| 4.17 | 229.95 | 5.67 | 327.53 | 10.16 | 244.62 | -69.19 | 81.11 | 0.9329 | 735.5 | 55.8 | |
| 1.04 | -17.00 | 1.43 | -17.00 | 10.42 | 244.41 | -69.40 | 80.83 | 0.9341 | 565.0 | 999999 | |
| 3.91 | -17.00 | 5.46 | -17.00 | 10.29 | 244.03 | -69.78 | 80.95 | 0.9365 | 376.2 | 999999 | |
| 0.00 | 2.44 | 0.00 | 3.22 | 6.51 | 245.42 | -68.39 | 85.07 | 0.9288 | 399.0 | 306.0 | |
| 13.22 | -17.00 | 18.41 | -17.00 | 9.73 | 244.12 | -69.68 | 81.56 | 0.9360 | 547.6 | 999999 | |
| 1.04 | -17.00 | 1.47 | -17.00 | 10.24 | 243.78 | -70.02 | 81.00 | 0.9379 | -152.6 | 999999 | |
| 0.00 | 2.61 | 0.00 | 3.63 | 8.52 | 244.12 | -69.68 | 82.85 | 0.9362 | 427.0 | 349.1 | |
| 6.00 | -17.00 | 8.62 | -17.00 | 9.33 | 243.41 | -70.40 | 81.95 | 0.9403 | 316.7 | 999999 | |
| 1.83 | -17.00 | 2.65 | -17.00 | 9.50 | 243.24 | -70.57 | 81.77 | 0.9413 | -162.6 | 999999 | |
| 6.44 | -17.00 | 9.41 | -17.00 | 8.64 | 243.08 | -70.73 | 82.68 | 0.9424 | 404.6 | 999999 | |
| 1.91 | -17.00 | 2.84 | -17.00 | 8.58 | 242.73 | -71.08 | 82.72 | 0.9444 | -184.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 2.53 | 9.56 | 242.16 | -71.64 | 81.66 | 0.9474 | -394.0 | -348.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
