groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11325 71.32 352.31 43.32 213.84 15.55 279.13 -34.12 70.13 0.5760 -228.6 -126.5


previous   or   next   observation for the same group / back to the solar disc

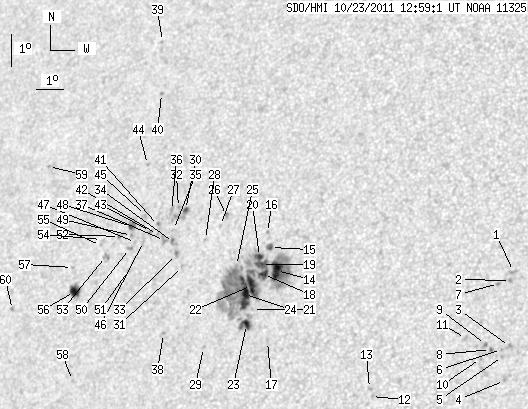

SDO HMI 2011-10-23 12:59:01 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 2.78 0.00 1.54 16.07 288.88 -24.38 63.69 0.4444 -813.0 -663.8
2 0.00 1.39 0.00 0.77 15.79 288.81 -24.45 64.33 0.4437 -952.0 -825.4
3 0.00 2.61 0.00 1.43 13.80 289.01 -24.24 68.50 0.4304 -799.0 -678.2
4 0.00 0.70 0.00 0.38 12.77 288.96 -24.30 70.85 0.4267 -761.0 -661.6
5 0.00 1.30 0.00 0.72 13.49 288.81 -24.44 69.32 0.4319 -821.0 -754.3
6 0.00 0.96 0.00 0.53 13.70 288.76 -24.50 68.90 0.4337 -905.0 -755.0
7 0.00 1.65 0.00 0.91 15.68 288.41 -24.84 64.85 0.4487 -876.0 -701.7
8 0.00 1.39 0.00 0.77 13.68 288.39 -24.87 69.17 0.4391 -862.0 -784.2
9 0.00 1.48 0.00 0.82 13.83 288.20 -25.06 68.97 0.4425 -759.0 -613.4
10 0.00 1.39 0.00 0.77 13.40 288.08 -25.18 69.98 0.4423 -834.0 -664.5
11 0.00 2.43 0.00 1.35 13.98 287.50 -25.76 69.07 0.4533 -711.0 -523.8
12 0.00 1.04 0.00 0.59 12.11 284.48 -28.77 74.44 0.4906 -650.0 -487.8
13 0.00 1.91 0.00 1.09 12.34 284.39 -28.87 74.00 0.4927 -755.0 -607.1
14 11.57 225.13 6.89 135.31 15.74 280.54 -32.72 69.29 0.5583 -1067.1 -297.5
15 1.30 3.48 0.78 2.09 16.43 280.19 -33.07 68.26 0.5656 -793.5 -673.2
16 0.00 1.30 0.00 0.78 16.88 279.99 -33.27 67.59 0.5700 -559.0 -456.5
17 0.00 1.30 0.00 0.77 13.59 280.57 -32.68 73.07 0.5508 -671.0 -551.6
18 5.74 -14.00 3.44 -14.00 15.60 280.09 -33.17 69.73 0.5639 -904.8 999999
19 6.61 -14.00 3.97 -14.00 15.90 279.96 -33.30 69.27 0.5668 -816.7 999999
20 3.13 -14.00 1.88 -14.00 16.14 279.84 -33.42 68.91 0.5692 -641.3 999999
21 0.00 0.78 0.00 0.47 14.53 279.87 -33.39 71.68 0.5633 -141.0 -105.0
22 9.39 -14.00 5.64 -14.00 15.25 279.71 -33.55 70.49 0.5679 -981.9 999999
23 4.35 12.43 2.60 7.45 14.06 279.73 -33.53 72.54 0.5639 -903.1 -610.7
24 17.22 -14.00 10.36 -14.00 14.96 279.50 -33.76 71.06 0.5698 -800.7 999999
25 0.00 1.04 0.00 0.63 15.82 279.04 -34.22 69.78 0.5788 65.0 54.6
26 0.00 2.70 0.00 1.65 17.32 278.35 -34.91 67.58 0.5932 -645.0 -442.6
27 0.00 1.13 0.00 0.69 17.00 278.19 -35.07 68.16 0.5941 -532.0 -414.5
28 0.00 0.96 0.00 0.59 16.55 277.71 -35.54 69.09 0.5988 434.0 398.5
29 0.00 1.30 0.00 0.79 13.29 278.25 -35.00 74.33 0.5820 -581.0 -469.9
30 2.09 11.13 1.31 6.98 17.42 276.75 -36.51 68.07 0.6142 495.6 80.7
31 0.00 1.48 0.00 0.92 15.69 277.01 -36.25 70.75 0.6052 518.0 509.2
32 0.00 1.30 0.00 0.82 17.47 276.46 -36.79 68.11 0.6180 699.0 667.4
33 0.00 2.61 0.00 1.63 16.04 276.71 -36.55 70.29 0.6102 895.0 744.0
34 0.00 4.43 0.00 2.78 16.40 276.51 -36.75 69.79 0.6139 521.0 682.5
35 0.00 0.78 0.00 0.49 16.79 276.42 -36.83 69.19 0.6162 753.0 649.9
36 0.00 3.22 0.00 2.03 17.36 276.21 -37.04 68.37 0.6208 767.0 629.9
37 0.00 4.43 0.00 2.79 16.44 276.15 -37.11 69.85 0.6186 737.0 613.7
38 0.00 1.22 0.00 0.76 13.64 276.68 -36.58 74.20 0.6041 667.0 598.6
39 0.00 1.04 0.00 0.69 22.52 274.38 -38.87 61.40 0.6626 637.0 570.5
40 0.00 1.22 0.00 0.79 20.91 274.86 -38.40 63.53 0.6505 740.0 625.3
41 0.00 2.61 0.00 1.65 16.88 275.82 -37.44 69.27 0.6243 741.0 702.1
42 0.00 1.22 0.00 0.77 16.61 275.84 -37.42 69.69 0.6232 731.0 625.6
43 0.00 2.00 0.00 1.27 16.68 275.55 -37.71 69.67 0.6271 701.0 625.8
44 0.00 0.78 0.00 0.50 18.71 274.92 -38.34 66.79 0.6416 701.0 552.4
45 0.00 1.04 0.00 0.67 17.15 275.24 -38.02 69.05 0.6325 758.0 697.5
46 0.00 3.30 0.00 2.10 16.36 275.34 -37.91 70.24 0.6288 649.0 550.9
47 0.00 0.87 0.00 0.55 16.32 275.04 -38.22 70.41 0.6325 541.0 533.8
48 2.96 6.17 1.90 3.96 16.79 274.77 -38.49 69.76 0.6374 677.8 646.8
49 0.00 0.96 0.00 0.61 16.52 274.83 -38.43 70.16 0.6357 615.0 570.3
50 0.00 2.09 0.00 1.33 16.12 274.84 -38.41 70.77 0.6345 826.0 671.3
51 0.00 1.04 0.00 0.66 15.46 274.95 -38.30 71.77 0.6313 744.0 628.6
52 0.00 1.74 0.00 1.12 16.46 274.37 -38.89 70.40 0.6415 553.0 412.0
53 0.00 3.30 0.00 2.14 15.83 273.95 -39.30 71.49 0.6450 642.0 510.6
54 0.00 0.70 0.00 0.45 16.33 273.67 -39.58 70.80 0.6498 306.0 357.9
55 0.00 0.96 0.00 0.62 16.15 273.68 -39.58 71.08 0.6493 386.0 335.3
56 6.96 13.39 4.55 8.75 14.71 272.96 -40.30 73.46 0.6549 748.1 539.7
57 0.00 1.22 0.00 0.80 15.42 272.71 -40.54 72.44 0.6596 535.0 407.0
58 0.00 1.13 0.00 0.73 12.04 273.41 -39.84 77.45 0.6442 686.0 483.6
59 0.00 0.96 0.00 0.65 18.42 270.90 -42.35 68.56 0.6891 611.0 527.5
60 0.00 1.39 0.00 0.94 14.02 270.56 -42.70 74.99 0.6835 732.0 607.6


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
