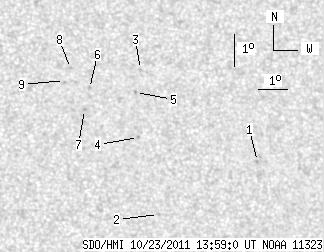

SDO HMI 2011-10-23 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.14 | 0.00 | 5.05 | 23.89 | 331.74 | 19.03 | 317.51 | 0.4441 | -659.4 | -570.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.73 | 22.21 | 335.77 | 23.06 | 309.52 | 0.4721 | -811.0 | -590.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 20.68 | 332.13 | 19.42 | 311.11 | 0.4147 | -607.0 | -490.0 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 25.23 | 332.19 | 19.49 | 318.99 | 0.4618 | -593.0 | -451.4 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 23.09 | 331.79 | 19.08 | 316.02 | 0.4349 | -738.0 | -651.1 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 24.50 | 331.90 | 19.19 | 318.24 | 0.4510 | -745.0 | -636.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 24.67 | 330.34 | 17.63 | 320.77 | 0.4370 | -589.0 | -558.6 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 24.02 | 330.07 | 17.36 | 320.11 | 0.4269 | -722.0 | -579.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 25.32 | 329.78 | 17.07 | 322.64 | 0.4391 | -570.0 | -534.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 24.95 | 329.52 | 16.81 | 322.46 | 0.4322 | -560.0 | -733.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
