SDO HMI 2011-10-23 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.98 | 429.58 | 60.49 | 254.48 | -21.45 | 332.90 | 20.20 | 215.88 | 0.5509 | -406.2 | -182.5 | |
|
previous
or next observation for the same group /

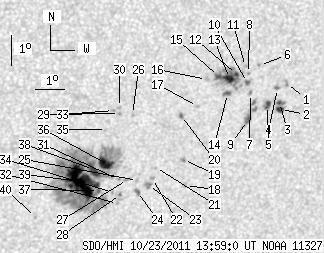

back to the solar disc SDO HMI 2011-10-23 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 1.47 | -19.18 | 338.13 | 25.42 | 225.06 | 0.5751 | 703.0 | 598.0 | |
| 3.74 | 11.04 | 2.27 | 6.71 | -20.03 | 338.07 | 25.36 | 223.89 | 0.5826 | 689.0 | 614.1 | |
| 1.91 | -2.00 | 1.16 | -2.00 | -19.80 | 337.99 | 25.28 | 224.11 | 0.5796 | 883.1 | 999999 | |
| 1.39 | 2.61 | 0.84 | 1.57 | -19.33 | 337.84 | 25.13 | 224.54 | 0.5736 | 811.2 | 717.9 | |
| 3.39 | 4.96 | 2.05 | 3.00 | -19.88 | 337.58 | 24.88 | 223.55 | 0.5763 | 775.8 | 632.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.55 | 337.09 | 24.38 | 224.72 | 0.5584 | 778.0 | 685.4 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -19.46 | 336.92 | 24.21 | 223.34 | 0.5657 | 858.0 | 703.1 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -18.80 | 336.75 | 24.04 | 224.00 | 0.5574 | 738.0 | 697.3 | |
| 3.30 | 14.78 | 2.00 | 8.92 | -20.35 | 336.96 | 24.26 | 222.26 | 0.5750 | 603.8 | 561.4 | |
| 2.52 | 3.04 | 1.51 | 1.82 | -19.09 | 336.76 | 24.05 | 223.62 | 0.5604 | 745.4 | 538.7 | |
| 0.00 | 1.65 | 0.00 | 0.98 | -18.57 | 336.61 | 23.90 | 224.14 | 0.5537 | 732.0 | 547.6 | |
| 1.30 | 40.52 | 0.77 | 24.02 | -18.82 | 336.34 | 23.63 | 223.49 | 0.5534 | 1085.3 | 729.6 | |
| 5.83 | -12.00 | 3.46 | -12.00 | -18.94 | 336.12 | 23.41 | 223.07 | 0.5525 | 1090.7 | 999999 | |
| 1.22 | 3.48 | 0.72 | 2.07 | -19.43 | 336.12 | 23.41 | 222.44 | 0.5575 | 603.9 | 460.0 | |
| 2.61 | -12.00 | 1.54 | -12.00 | -18.86 | 335.73 | 23.02 | 222.70 | 0.5478 | 1020.8 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.28 | -18.94 | 335.33 | 22.62 | 222.11 | 0.5447 | 692.0 | 622.8 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -19.82 | 335.15 | 22.44 | 220.76 | 0.5522 | 762.0 | 617.6 | |
| 0.00 | 1.65 | 0.00 | 1.00 | -22.45 | 335.15 | 22.45 | 217.63 | 0.5802 | -688.0 | -578.9 | |
| 0.00 | 2.70 | 0.00 | 1.62 | -21.57 | 334.94 | 22.23 | 218.38 | 0.5689 | -773.0 | -692.9 | |
| 2.09 | 2.52 | 1.24 | 1.49 | -20.10 | 334.64 | 21.93 | 219.78 | 0.5504 | 667.4 | 494.8 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -21.80 | 334.01 | 21.30 | 216.95 | 0.5632 | -477.0 | -434.2 | |
| 0.00 | 2.17 | 0.00 | 1.30 | -22.17 | 333.96 | 21.25 | 216.47 | 0.5669 | -618.0 | -474.5 | |
| 0.00 | 4.00 | 0.00 | 2.40 | -22.40 | 333.86 | 21.15 | 216.09 | 0.5686 | -704.0 | -590.5 | |
| 0.00 | 2.96 | 0.00 | 1.78 | -22.59 | 333.51 | 20.80 | 215.43 | 0.5678 | -737.0 | -615.9 | |
| 0.00 | 1.74 | 0.00 | 1.04 | -22.22 | 333.45 | 20.74 | 215.77 | 0.5631 | -738.0 | -486.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.01 | 332.96 | 20.25 | 217.71 | 0.5339 | -672.0 | -610.2 | |
| 0.00 | 2.87 | 0.00 | 1.71 | -22.17 | 333.10 | 20.39 | 215.37 | 0.5597 | -450.0 | -381.5 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -22.67 | 332.94 | 20.23 | 214.60 | 0.5640 | -599.0 | -516.6 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -19.96 | 332.51 | 19.81 | 217.16 | 0.5294 | -725.0 | -663.6 | |
| 0.00 | 1.56 | 0.00 | 0.91 | -19.76 | 332.49 | 19.78 | 217.37 | 0.5269 | -759.0 | -640.9 | |
| 0.00 | 1.48 | 0.00 | 0.88 | -22.16 | 332.79 | 20.08 | 214.97 | 0.5570 | -700.0 | -504.4 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -22.97 | 332.88 | 20.17 | 214.20 | 0.5670 | 328.0 | 239.5 | |
| 0.00 | 1.65 | 0.00 | 0.96 | -19.85 | 332.30 | 19.59 | 216.99 | 0.5262 | -842.0 | -658.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -22.59 | 332.65 | 19.94 | 214.31 | 0.5608 | -555.0 | -411.1 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.47 | 332.14 | 19.44 | 216.03 | 0.5320 | -490.0 | -431.4 | |
| 11.30 | 304.12 | 6.67 | 179.54 | -21.61 | 332.26 | 19.56 | 214.89 | 0.5462 | -1009.2 | -380.5 | |
| 2.00 | -36.00 | 1.19 | -36.00 | -22.51 | 332.16 | 19.45 | 213.75 | 0.5558 | -322.6 | 999999 | |
| 9.82 | -36.00 | 5.80 | -36.00 | -21.80 | 331.88 | 19.17 | 214.16 | 0.5452 | -922.0 | 999999 | |
| 49.56 | -36.00 | 29.27 | -36.00 | -22.19 | 331.49 | 18.79 | 213.20 | 0.5467 | -1106.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.36 | 330.12 | 17.42 | 210.08 | 0.5504 | 423.0 | 363.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
