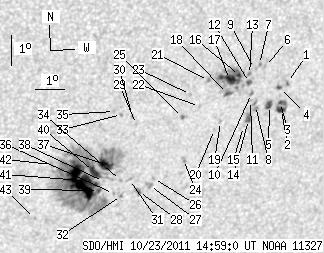

SDO HMI 2011-10-23 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.98 | 405.41 | 61.93 | 241.06 | -21.37 | 332.95 | 20.79 | 216.76 | 0.5552 | -290.0 | -180.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.95 | -19.14 | 338.14 | 25.98 | 225.72 | 0.5803 | 830.0 | 721.8 | |
| 4.52 | 10.78 | 2.76 | 6.58 | -20.02 | 338.08 | 25.92 | 224.52 | 0.5880 | 637.5 | 665.1 | |
| 1.39 | -2.00 | 0.85 | -2.00 | -19.79 | 338.00 | 25.85 | 224.74 | 0.5850 | 849.2 | 999999 | |
| 1.13 | 2.17 | 0.69 | 1.32 | -19.29 | 337.88 | 25.72 | 225.24 | 0.5791 | 756.3 | 763.7 | |
| 3.74 | 4.78 | 2.27 | 2.91 | -19.87 | 337.63 | 25.47 | 224.22 | 0.5821 | 777.6 | 657.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -18.58 | 337.28 | 25.12 | 225.51 | 0.5662 | 598.0 | 527.5 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -18.51 | 337.06 | 24.90 | 225.36 | 0.5632 | 704.0 | 622.8 | |
| 0.00 | 4.61 | 0.00 | 2.79 | -19.85 | 337.14 | 24.98 | 223.70 | 0.5770 | 545.0 | 611.0 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -18.63 | 336.90 | 24.74 | 225.03 | 0.5629 | 200.0 | 332.6 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -19.45 | 336.93 | 24.77 | 223.99 | 0.5711 | 854.0 | 689.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -19.68 | 336.93 | 24.77 | 223.70 | 0.5734 | 620.0 | 496.8 | |
| 2.00 | 3.56 | 1.20 | 2.14 | -19.08 | 336.80 | 24.64 | 224.31 | 0.5662 | 759.6 | 536.4 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -18.82 | 336.76 | 24.60 | 224.61 | 0.5632 | 862.0 | 666.3 | |
| 3.74 | 5.30 | 2.27 | 3.22 | -20.31 | 336.97 | 24.81 | 222.94 | 0.5799 | 619.2 | 610.7 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -20.53 | 336.83 | 24.67 | 222.51 | 0.5808 | 523.0 | 378.7 | |
| 1.74 | 48.85 | 1.04 | 29.13 | -18.84 | 336.42 | 24.26 | 224.19 | 0.5600 | 1043.2 | 609.8 | |
| 11.47 | -16.00 | 6.84 | -16.00 | -18.96 | 336.09 | 23.93 | 223.66 | 0.5578 | 1054.1 | 999999 | |
| 2.35 | -16.00 | 1.40 | -16.00 | -19.42 | 336.09 | 23.93 | 223.07 | 0.5624 | 488.2 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -20.33 | 335.99 | 23.84 | 221.80 | 0.5708 | 694.0 | 490.6 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -20.59 | 335.83 | 23.67 | 221.28 | 0.5718 | 555.0 | 449.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.96 | 335.37 | 23.21 | 222.80 | 0.5507 | 722.0 | 636.5 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -19.81 | 335.18 | 23.03 | 221.49 | 0.5576 | 599.0 | 447.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -19.40 | 334.81 | 22.65 | 221.56 | 0.5498 | 778.0 | 575.2 | |
| 0.00 | 2.26 | 0.00 | 1.36 | -21.55 | 334.91 | 22.75 | 219.03 | 0.5734 | -614.0 | -615.2 | |
| 0.35 | 1.91 | 0.21 | 1.14 | -20.15 | 334.65 | 22.49 | 220.41 | 0.5561 | 702.8 | 624.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -22.15 | 333.97 | 21.81 | 217.18 | 0.5715 | -660.0 | -474.5 | |
| 0.00 | 3.82 | 0.00 | 2.31 | -22.38 | 333.86 | 21.71 | 216.80 | 0.5732 | -671.0 | -624.4 | |
| 1.65 | 3.30 | 1.00 | 1.99 | -22.57 | 333.51 | 21.36 | 216.15 | 0.5723 | -687.5 | -559.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -20.33 | 333.10 | 20.94 | 218.24 | 0.5437 | -644.0 | -485.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.06 | 332.93 | 20.77 | 218.34 | 0.5392 | -770.0 | -596.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -22.16 | 333.14 | 20.98 | 216.14 | 0.5644 | -389.0 | -327.0 | |
| 0.00 | 1.56 | 0.00 | 0.94 | -22.69 | 332.94 | 20.79 | 215.30 | 0.5688 | -668.0 | -465.1 | |
| 0.00 | 1.39 | 0.00 | 0.81 | -19.98 | 332.54 | 20.39 | 217.92 | 0.5348 | -832.0 | -645.9 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -22.18 | 332.83 | 20.67 | 215.72 | 0.5621 | -648.0 | -569.2 | |
| 0.00 | 1.48 | 0.00 | 0.86 | -19.87 | 332.29 | 20.13 | 217.71 | 0.5313 | -815.0 | -624.9 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -22.61 | 332.65 | 20.50 | 215.02 | 0.5655 | -441.0 | -327.2 | |
| 11.13 | 282.52 | 6.59 | 167.36 | -21.62 | 332.23 | 20.07 | 215.56 | 0.5507 | -1016.4 | -393.2 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -22.19 | 332.25 | 20.09 | 214.95 | 0.5574 | -335.0 | -215.7 | |
| 2.00 | -37.00 | 1.19 | -37.00 | -22.49 | 332.12 | 19.96 | 214.45 | 0.5598 | -435.5 | 999999 | |
| 9.48 | -37.00 | 5.61 | -37.00 | -21.85 | 331.85 | 19.69 | 214.81 | 0.5501 | -911.8 | 999999 | |
| 47.29 | -37.00 | 28.01 | -37.00 | -22.13 | 331.48 | 19.33 | 214.00 | 0.5504 | -1138.4 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.58 | -21.57 | 330.39 | 18.23 | 213.10 | 0.5348 | -257.0 | -276.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -23.37 | 330.06 | 17.90 | 210.74 | 0.5541 | 279.0 | 219.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
