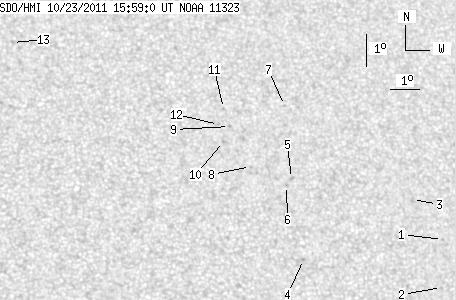

SDO HMI 2011-10-23 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.81 | 0.00 | 7.68 | 23.50 | 331.24 | 19.64 | 316.27 | 0.4503 | -630.5 | -485.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.59 | 21.02 | 336.67 | 25.06 | 305.34 | 0.4868 | -633.0 | -509.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 19.54 | 336.38 | 24.77 | 302.89 | 0.4723 | -731.0 | -580.8 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 22.29 | 335.85 | 24.24 | 308.41 | 0.4868 | -679.0 | -590.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 20.56 | 331.79 | 20.18 | 309.88 | 0.4228 | -910.0 | -690.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 23.09 | 331.75 | 20.15 | 314.57 | 0.4466 | -838.0 | -670.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 22.87 | 331.55 | 19.94 | 314.47 | 0.4422 | -756.0 | -614.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 25.39 | 331.89 | 20.29 | 318.18 | 0.4717 | -675.0 | -499.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 23.50 | 330.40 | 18.80 | 317.13 | 0.4362 | -702.0 | -650.6 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 24.78 | 329.87 | 18.27 | 320.00 | 0.4446 | -696.0 | -681.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 24.31 | 329.60 | 17.99 | 319.66 | 0.4366 | -785.0 | -608.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 25.36 | 329.75 | 18.15 | 321.08 | 0.4499 | -690.0 | -522.1 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 24.85 | 329.50 | 17.90 | 320.66 | 0.4417 | -707.0 | -612.8 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 27.62 | 322.78 | 11.17 | 335.85 | 0.4214 | 606.0 | 536.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
