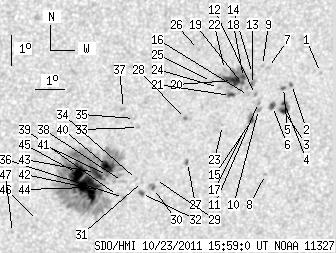

SDO HMI 2011-10-23 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.27 | 410.79 | 59.34 | 245.08 | -21.46 | 332.81 | 21.20 | 217.18 | 0.5597 | -313.1 | -200.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.75 | -18.81 | 339.15 | 27.55 | 227.77 | 0.5934 | 458.0 | 404.1 | |
| 1.30 | 1.39 | 0.80 | 0.85 | -19.16 | 338.19 | 26.58 | 226.32 | 0.5866 | 715.4 | 632.0 | |
| 2.69 | 8.61 | 1.66 | 5.28 | -20.04 | 338.10 | 26.49 | 225.09 | 0.5938 | 627.9 | 715.8 | |
| 1.91 | -3.00 | 1.17 | -3.00 | -19.78 | 338.05 | 26.44 | 225.38 | 0.5909 | 806.2 | 999999 | |
| 1.22 | 2.00 | 0.74 | 1.22 | -19.25 | 337.92 | 26.31 | 225.93 | 0.5847 | 715.1 | 695.9 | |
| 3.13 | 3.74 | 1.91 | 2.28 | -19.86 | 337.64 | 26.03 | 224.84 | 0.5876 | 807.5 | 631.7 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -18.57 | 337.28 | 25.67 | 226.13 | 0.5718 | 622.0 | 501.9 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -22.12 | 337.82 | 26.21 | 222.25 | 0.6108 | 639.0 | 468.8 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -18.50 | 337.06 | 25.45 | 225.99 | 0.5688 | 686.0 | 637.4 | |
| 0.00 | 2.52 | 0.00 | 1.53 | -19.94 | 337.16 | 25.55 | 224.23 | 0.5835 | 644.0 | 536.8 | |
| 0.00 | 2.09 | 0.00 | 1.27 | -19.71 | 337.12 | 25.51 | 224.48 | 0.5809 | 785.0 | 672.8 | |
| 0.00 | 1.65 | 0.00 | 1.00 | -19.44 | 336.97 | 25.36 | 224.66 | 0.5768 | 925.0 | 731.7 | |
| 1.13 | 4.69 | 0.68 | 2.83 | -19.11 | 336.81 | 25.20 | 224.91 | 0.5720 | 726.5 | 694.9 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -18.74 | 336.75 | 25.14 | 225.32 | 0.5680 | 677.0 | 656.5 | |
| 2.52 | 6.26 | 1.54 | 3.81 | -20.29 | 336.97 | 25.37 | 223.58 | 0.5851 | 626.7 | 578.2 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -19.46 | 336.73 | 25.12 | 224.36 | 0.5747 | 637.0 | 564.0 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -20.52 | 336.80 | 25.19 | 223.11 | 0.5857 | 469.0 | 293.8 | |
| 1.48 | 34.42 | 0.89 | 20.60 | -18.86 | 336.45 | 24.85 | 224.84 | 0.5661 | 988.5 | 777.4 | |
| 0.87 | -18.00 | 0.52 | -18.00 | -19.06 | 336.45 | 24.84 | 224.58 | 0.5680 | 879.9 | 999999 | |
| 9.04 | -18.00 | 5.41 | -18.00 | -18.95 | 336.09 | 24.48 | 224.31 | 0.5632 | 1078.7 | 999999 | |
| 2.52 | 4.43 | 1.51 | 2.66 | -19.44 | 336.09 | 24.49 | 223.68 | 0.5681 | 493.6 | 403.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -18.57 | 335.75 | 24.14 | 224.42 | 0.5562 | 351.0 | 332.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -20.42 | 335.98 | 24.37 | 222.31 | 0.5767 | 674.0 | 556.0 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -19.16 | 335.63 | 24.03 | 223.51 | 0.5608 | 253.0 | 226.9 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -18.95 | 335.36 | 23.75 | 223.46 | 0.5560 | 729.0 | 569.4 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -17.89 | 334.76 | 23.15 | 224.16 | 0.5392 | 675.0 | 631.8 | |
| 0.70 | 2.09 | 0.42 | 1.27 | -21.61 | 334.96 | 23.35 | 219.68 | 0.5793 | -681.2 | -693.6 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -20.14 | 334.65 | 23.04 | 221.10 | 0.5611 | 718.0 | 656.4 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -22.14 | 333.93 | 22.32 | 217.84 | 0.5758 | -357.0 | -461.5 | |
| 1.04 | 4.17 | 0.63 | 2.53 | -22.44 | 333.91 | 22.30 | 217.47 | 0.5789 | -602.0 | -584.7 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -22.19 | 333.49 | 21.88 | 217.23 | 0.5725 | -646.0 | -516.5 | |
| 2.09 | 2.78 | 1.26 | 1.68 | -22.59 | 333.52 | 21.91 | 216.82 | 0.5772 | -688.7 | -576.0 | |
| 0.00 | 1.39 | 0.00 | 0.82 | -20.37 | 333.07 | 21.46 | 218.84 | 0.5490 | -718.0 | -488.6 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -22.11 | 333.27 | 21.66 | 217.05 | 0.5698 | -599.0 | -439.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -20.07 | 332.89 | 21.28 | 218.98 | 0.5440 | -705.0 | -556.9 | |
| 0.00 | 1.56 | 0.00 | 0.94 | -22.70 | 332.91 | 21.30 | 215.94 | 0.5733 | -497.0 | -484.3 | |
| 0.00 | 1.91 | 0.00 | 1.12 | -19.73 | 332.46 | 20.86 | 218.86 | 0.5363 | -714.0 | -670.2 | |
| 0.00 | 2.43 | 0.00 | 1.46 | -22.16 | 332.79 | 21.18 | 216.39 | 0.5662 | -630.0 | -453.3 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -22.63 | 332.69 | 21.08 | 215.74 | 0.5706 | -536.0 | -422.5 | |
| 10.87 | 301.27 | 6.46 | 179.06 | -21.64 | 332.19 | 20.59 | 216.22 | 0.5553 | -1033.8 | -390.5 | |
| 0.96 | -40.00 | 0.57 | -40.00 | -21.94 | 332.24 | 20.63 | 215.94 | 0.5591 | -357.2 | 999999 | |
| 0.52 | -40.00 | 0.31 | -40.00 | -22.44 | 332.07 | 20.47 | 215.17 | 0.5633 | -536.7 | 999999 | |
| 9.04 | -40.00 | 5.37 | -40.00 | -21.83 | 331.81 | 20.20 | 215.51 | 0.5541 | -923.4 | 999999 | |
| 29.12 | -40.00 | 17.36 | -40.00 | -22.32 | 331.61 | 20.00 | 214.69 | 0.5581 | -1015.7 | 999999 | |
| 17.12 | -40.00 | 10.13 | -40.00 | -21.84 | 331.20 | 19.59 | 214.68 | 0.5491 | -1344.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -23.39 | 330.05 | 18.44 | 211.48 | 0.5583 | 525.0 | 283.5 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -23.77 | 329.25 | 17.64 | 209.99 | 0.5570 | -717.0 | -570.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
