SDO HMI 2011-10-23 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.90 | 728.11 | 144.43 | 756.63 | 7.89 | 249.38 | -61.68 | 83.90 | 0.8750 | -149.2 | -86.2 | |
|
previous
or next observation for the same group /

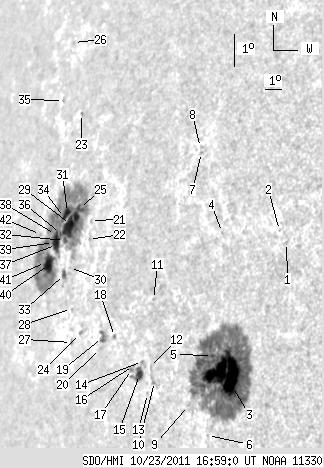

back to the solar disc SDO HMI 2011-10-23 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.72 | 10.44 | 257.40 | -53.65 | 80.85 | 0.8046 | -510.0 | -457.2 | |
| 0.00 | 0.96 | 0.00 | 0.80 | 10.77 | 256.95 | -54.10 | 80.45 | 0.8092 | -392.0 | -363.5 | |
| 72.66 | 405.28 | 63.97 | 358.01 | 6.32 | 255.00 | -56.06 | 85.89 | 0.8289 | -900.8 | -263.6 | |
| 0.00 | 0.96 | 0.00 | 0.86 | 10.49 | 253.95 | -57.11 | 80.86 | 0.8384 | -448.0 | -358.7 | |
| 1.56 | -3.00 | 1.40 | -3.00 | 6.81 | 254.26 | -56.80 | 85.27 | 0.8358 | -279.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.78 | 4.42 | 254.34 | -56.71 | 88.14 | 0.8360 | 277.0 | 183.7 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 12.76 | 251.97 | -59.08 | 78.22 | 0.8568 | -648.0 | -559.2 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 12.91 | 251.86 | -59.20 | 78.05 | 0.8578 | -455.0 | -438.5 | |
| 0.00 | 1.22 | 0.00 | 1.13 | 5.23 | 253.18 | -57.88 | 87.11 | 0.8466 | 236.0 | 196.7 | |
| 0.00 | 4.43 | 0.00 | 4.35 | 5.78 | 251.10 | -59.96 | 86.34 | 0.8651 | -191.0 | -234.0 | |
| 0.00 | 1.22 | 0.00 | 1.21 | 8.20 | 250.51 | -60.54 | 83.52 | 0.8694 | -283.0 | -214.0 | |
| 0.00 | 0.61 | 0.00 | 0.60 | 6.17 | 250.72 | -60.33 | 85.86 | 0.8682 | 276.0 | 266.6 | |
| 0.00 | 1.13 | 0.00 | 1.12 | 5.40 | 250.74 | -60.32 | 86.76 | 0.8683 | -317.0 | -252.7 | |
| 0.00 | 1.30 | 0.00 | 1.31 | 6.32 | 250.26 | -60.79 | 85.68 | 0.8720 | -401.0 | -380.5 | |
| 7.39 | 10.43 | 7.46 | 10.55 | 5.92 | 250.15 | -60.90 | 86.13 | 0.8731 | -446.5 | -83.7 | |
| 0.00 | 0.78 | 0.00 | 0.80 | 6.16 | 249.73 | -61.32 | 85.84 | 0.8766 | -19.0 | 48.8 | |
| 0.00 | 1.65 | 0.00 | 1.69 | 6.03 | 249.63 | -61.43 | 85.98 | 0.8775 | 426.0 | 371.1 | |
| 0.00 | 1.83 | 0.00 | 1.95 | 6.92 | 248.34 | -62.72 | 84.91 | 0.8877 | -58.0 | -3.5 | |
| 2.52 | 6.78 | 2.76 | 7.42 | 6.82 | 247.56 | -63.50 | 84.98 | 0.8939 | 722.5 | 560.7 | |
| 0.00 | 1.48 | 0.00 | 1.62 | 6.49 | 247.50 | -63.56 | 85.35 | 0.8945 | 424.0 | 387.3 | |
| 0.00 | 1.04 | 0.00 | 1.22 | 10.20 | 245.64 | -65.41 | 81.16 | 0.9075 | 599.0 | 555.1 | |
| 0.00 | 0.87 | 0.00 | 1.01 | 9.63 | 245.71 | -65.34 | 81.79 | 0.9071 | 515.0 | 488.2 | |
| 0.00 | 0.96 | 0.00 | 1.21 | 13.27 | 243.46 | -67.59 | 77.77 | 0.9224 | -302.0 | -179.8 | |
| 0.00 | 1.39 | 0.00 | 1.61 | 6.82 | 246.02 | -65.04 | 84.91 | 0.9055 | 523.0 | 418.4 | |
| 2.96 | 269.26 | 3.57 | 340.88 | 10.48 | 244.70 | -66.36 | 80.83 | 0.9142 | 703.0 | 72.8 | |
| 0.00 | 2.00 | 0.00 | 2.76 | 15.29 | 241.46 | -69.60 | 75.61 | 0.9350 | 205.0 | 194.2 | |
| 0.00 | 1.83 | 0.00 | 2.16 | 6.50 | 245.45 | -65.61 | 85.23 | 0.9098 | 287.0 | 269.5 | |
| 0.00 | 0.70 | 0.00 | 0.83 | 7.50 | 245.17 | -65.88 | 84.12 | 0.9115 | 242.0 | 216.9 | |
| 18.95 | -25.00 | 23.35 | -25.00 | 9.96 | 244.22 | -66.83 | 81.39 | 0.9175 | 712.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.74 | 8.69 | 244.63 | -66.42 | 82.79 | 0.9149 | 443.0 | 436.4 | |
| 3.65 | -25.00 | 4.57 | -25.00 | 10.29 | 243.85 | -67.21 | 81.02 | 0.9200 | 349.0 | 999999 | |
| 1.74 | -25.00 | 2.16 | -25.00 | 9.45 | 243.96 | -67.09 | 81.94 | 0.9194 | 580.8 | 999999 | |
| 2.87 | 4.17 | 3.53 | 5.14 | 8.46 | 244.33 | -66.72 | 83.04 | 0.9171 | 434.7 | 403.4 | |
| 1.65 | -25.00 | 2.08 | -25.00 | 10.13 | 243.68 | -67.37 | 81.20 | 0.9212 | -134.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.54 | 13.53 | 241.78 | -69.27 | 77.49 | 0.9330 | 206.0 | 229.9 | |
| 0.35 | -25.00 | 0.44 | -25.00 | 9.63 | 243.57 | -67.48 | 81.73 | 0.9220 | 323.5 | 999999 | |
| 7.39 | -25.00 | 9.42 | -25.00 | 9.29 | 243.39 | -67.66 | 82.10 | 0.9233 | 413.1 | 999999 | |
| 1.48 | -25.00 | 1.90 | -25.00 | 9.57 | 243.19 | -67.86 | 81.79 | 0.9245 | -135.1 | 999999 | |
| 1.13 | -25.00 | 1.46 | -25.00 | 9.32 | 243.13 | -67.92 | 82.05 | 0.9250 | -185.7 | 999999 | |
| 10.60 | -25.00 | 13.73 | -25.00 | 8.65 | 243.07 | -67.98 | 82.77 | 0.9255 | 501.8 | 999999 | |
| 2.00 | -25.00 | 2.63 | -25.00 | 8.69 | 242.73 | -68.33 | 82.73 | 0.9277 | -174.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 1.29 | 9.47 | 241.98 | -69.07 | 81.85 | 0.9323 | -371.0 | -353.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
