SDO HMI 2011-10-23 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.02 | 752.12 | 133.07 | 768.12 | 7.89 | 249.41 | -61.10 | 83.93 | 0.8702 | -174.9 | -80.5 | |
|
previous
or next observation for the same group /

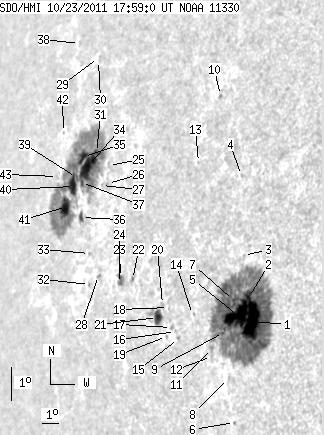

back to the solar disc SDO HMI 2011-10-23 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.55 | 414.56 | 30.56 | 361.08 | 6.21 | 255.38 | -55.12 | 86.06 | 0.8197 | -1173.2 | -271.9 | |
| 3.56 | -1.00 | 3.08 | -1.00 | 6.91 | 255.11 | -55.40 | 85.20 | 0.8222 | -755.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.76 | 8.13 | 254.60 | -55.90 | 83.70 | 0.8269 | -330.0 | -245.2 | |
| 0.00 | 1.30 | 0.00 | 1.16 | 10.49 | 253.91 | -56.59 | 80.85 | 0.8336 | -468.0 | -327.3 | |
| 32.33 | -1.00 | 28.34 | -1.00 | 6.33 | 254.62 | -55.89 | 85.88 | 0.8272 | -702.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.84 | 3.15 | 254.85 | -55.66 | 89.76 | 0.8266 | 373.0 | 373.5 | |
| 1.22 | -1.00 | 1.07 | -1.00 | 6.76 | 254.33 | -56.18 | 85.35 | 0.8299 | -290.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.84 | 4.43 | 254.40 | -56.11 | 88.17 | 0.8302 | 465.0 | 361.6 | |
| 1.22 | -1.00 | 1.09 | -1.00 | 5.77 | 253.94 | -56.56 | 86.52 | 0.8339 | -185.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.06 | 12.77 | 251.96 | -58.54 | 78.19 | 0.8520 | -571.0 | -535.5 | |
| 0.00 | 2.43 | 0.00 | 2.21 | 5.25 | 253.36 | -57.14 | 87.12 | 0.8397 | 295.0 | 232.1 | |
| 0.00 | 1.30 | 0.00 | 1.18 | 5.01 | 253.39 | -57.11 | 87.40 | 0.8395 | 190.0 | 169.3 | |
| 0.00 | 0.70 | 0.00 | 0.66 | 10.69 | 251.38 | -59.13 | 80.64 | 0.8569 | -310.0 | -285.4 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 6.18 | 252.14 | -58.37 | 85.96 | 0.8507 | -156.0 | -229.2 | |
| 0.00 | 1.48 | 0.00 | 1.41 | 5.40 | 251.45 | -59.05 | 86.83 | 0.8572 | -400.0 | -343.1 | |
| 0.00 | 1.13 | 0.00 | 1.09 | 5.60 | 251.24 | -59.26 | 86.59 | 0.8590 | -440.0 | -374.3 | |
| 0.00 | 1.65 | 0.00 | 1.60 | 5.70 | 250.99 | -59.51 | 86.46 | 0.8612 | -483.0 | -366.2 | |
| 0.00 | 0.52 | 0.00 | 0.51 | 6.28 | 250.71 | -59.80 | 85.77 | 0.8635 | 91.0 | 87.0 | |
| 0.00 | 1.22 | 0.00 | 1.19 | 5.41 | 250.74 | -59.76 | 86.78 | 0.8635 | -290.0 | -250.9 | |
| 0.00 | 2.09 | 0.00 | 2.06 | 6.34 | 250.33 | -60.17 | 85.69 | 0.8667 | -563.0 | -424.8 | |
| 8.17 | 14.60 | 8.11 | 14.55 | 5.93 | 250.10 | -60.40 | 86.15 | 0.8688 | -449.9 | 74.6 | |
| 0.00 | 1.30 | 0.00 | 1.37 | 6.93 | 248.32 | -62.18 | 84.92 | 0.8834 | -71.0 | -17.3 | |
| 1.56 | 5.74 | 1.69 | 6.17 | 6.92 | 247.53 | -62.97 | 84.89 | 0.8897 | 758.2 | 613.9 | |
| 1.74 | -23.00 | 1.87 | -23.00 | 6.74 | 247.51 | -63.00 | 85.09 | 0.8900 | 659.8 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.99 | 10.15 | 245.70 | -64.80 | 81.22 | 0.9030 | 562.0 | 488.1 | |
| 0.00 | 1.13 | 0.00 | 1.29 | 9.62 | 245.83 | -64.67 | 81.82 | 0.9022 | 505.0 | 456.7 | |
| 0.00 | 1.04 | 0.00 | 1.20 | 9.53 | 245.43 | -65.07 | 81.91 | 0.9051 | 480.0 | 419.1 | |
| 0.00 | 1.65 | 0.00 | 1.87 | 6.86 | 246.04 | -64.47 | 84.89 | 0.9013 | 527.0 | 422.6 | |
| 0.00 | 0.70 | 0.00 | 0.86 | 13.26 | 243.50 | -67.01 | 77.79 | 0.9185 | -296.0 | -288.8 | |
| 0.00 | 0.52 | 0.00 | 0.64 | 13.17 | 243.54 | -66.96 | 77.89 | 0.9181 | -164.0 | -145.8 | |
| 2.00 | 281.67 | 2.37 | 348.68 | 10.47 | 244.70 | -65.81 | 80.86 | 0.9103 | 770.0 | 90.4 | |
| 0.00 | 1.30 | 0.00 | 1.51 | 6.55 | 245.48 | -65.03 | 85.21 | 0.9056 | 273.0 | 304.3 | |
| 0.00 | 1.04 | 0.00 | 1.22 | 7.46 | 245.23 | -65.27 | 84.19 | 0.9071 | 378.0 | 302.0 | |
| 18.77 | -31.00 | 22.65 | -31.00 | 10.00 | 244.21 | -66.30 | 81.36 | 0.9138 | 714.5 | 999999 | |
| 4.26 | -31.00 | 5.22 | -31.00 | 10.27 | 243.79 | -66.71 | 81.06 | 0.9167 | 363.6 | 999999 | |
| 3.30 | 4.43 | 3.98 | 5.34 | 8.47 | 244.32 | -66.18 | 83.04 | 0.9133 | 409.7 | 326.3 | |
| 0.70 | -31.00 | 0.85 | -31.00 | 9.50 | 243.95 | -66.55 | 81.91 | 0.9157 | 620.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.16 | 13.54 | 241.76 | -68.74 | 77.48 | 0.9297 | 353.0 | 278.7 | |
| 0.52 | -31.00 | 0.65 | -31.00 | 9.61 | 243.52 | -66.99 | 81.77 | 0.9187 | 322.7 | 999999 | |
| 7.82 | -31.00 | 9.76 | -31.00 | 9.33 | 243.39 | -67.11 | 82.07 | 0.9195 | 409.7 | 999999 | |
| 9.30 | -31.00 | 11.78 | -31.00 | 8.70 | 243.08 | -67.42 | 82.75 | 0.9218 | 512.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.03 | 10.84 | 241.91 | -68.59 | 80.39 | 0.9290 | -140.0 | -130.6 | |
| 0.00 | 0.96 | 0.00 | 1.26 | 9.52 | 242.02 | -68.48 | 81.82 | 0.9286 | -365.0 | -319.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
