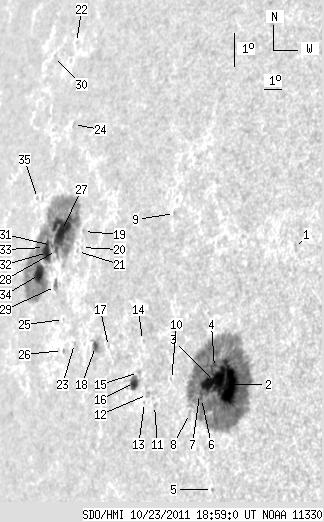

SDO HMI 2011-10-23 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.06 | 749.87 | 131.93 | 748.62 | 7.83 | 249.57 | -60.38 | 84.02 | 0.8640 | -135.8 | -106.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.52 | 0.00 | 2.02 | 10.58 | 257.89 | -52.06 | 80.62 | 0.7880 | -528.0 | -402.0 | |
| 36.07 | 427.42 | 30.61 | 366.97 | 6.31 | 255.39 | -54.56 | 85.96 | 0.8140 | -1179.8 | -294.8 | |
| 29.20 | -2.00 | 25.26 | -2.00 | 6.34 | 254.60 | -55.35 | 85.89 | 0.8219 | -711.2 | 999999 | |
| 0.78 | -2.00 | 0.68 | -2.00 | 6.76 | 254.53 | -55.42 | 85.38 | 0.8225 | -225.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.97 | 3.13 | 254.88 | -55.07 | 89.83 | 0.8208 | 463.0 | 384.5 | |
| 1.04 | -2.00 | 0.92 | -2.00 | 5.79 | 253.99 | -55.96 | 86.54 | 0.8281 | -265.1 | 999999 | |
| 0.96 | -2.00 | 0.84 | -2.00 | 5.90 | 253.87 | -56.08 | 86.40 | 0.8293 | -173.1 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.78 | 5.30 | 253.41 | -56.54 | 87.10 | 0.8339 | 245.0 | 207.3 | |
| 0.00 | 1.48 | 0.00 | 1.40 | 11.15 | 251.22 | -58.73 | 80.10 | 0.8534 | -363.0 | -254.5 | |
| 0.00 | 0.87 | 0.00 | 0.80 | 6.23 | 252.26 | -57.69 | 85.93 | 0.8444 | -236.0 | -216.0 | |
| 0.00 | 0.87 | 0.00 | 0.82 | 5.38 | 251.43 | -58.52 | 86.88 | 0.8524 | -446.0 | -346.2 | |
| 0.00 | 2.78 | 0.00 | 2.65 | 5.68 | 250.98 | -58.97 | 86.51 | 0.8564 | -447.0 | -357.7 | |
| 0.00 | 0.87 | 0.00 | 0.83 | 5.43 | 250.84 | -59.11 | 86.79 | 0.8577 | -341.0 | -294.6 | |
| 0.00 | 0.70 | 0.00 | 0.67 | 7.25 | 250.38 | -59.57 | 84.65 | 0.8612 | -290.0 | -332.5 | |
| 0.00 | 2.43 | 0.00 | 2.36 | 6.29 | 250.34 | -59.62 | 85.77 | 0.8619 | -574.0 | -506.8 | |
| 7.91 | 10.43 | 7.72 | 10.18 | 5.98 | 250.15 | -59.80 | 86.12 | 0.8636 | -458.5 | -286.2 | |
| 0.00 | 0.96 | 0.00 | 0.98 | 6.91 | 248.35 | -61.60 | 84.96 | 0.8786 | -161.0 | -106.8 | |
| 3.48 | 10.43 | 3.68 | 10.99 | 6.85 | 247.53 | -62.42 | 85.00 | 0.8854 | 773.9 | 444.4 | |
| 0.00 | 1.56 | 0.00 | 1.75 | 10.17 | 245.72 | -64.23 | 81.21 | 0.8988 | 525.0 | 419.0 | |
| 0.00 | 0.96 | 0.00 | 1.07 | 9.69 | 245.75 | -64.20 | 81.75 | 0.8986 | 526.0 | 476.4 | |
| 0.00 | 0.78 | 0.00 | 0.88 | 9.55 | 245.52 | -64.43 | 81.90 | 0.9004 | 398.0 | 423.0 | |
| 0.00 | 0.61 | 0.00 | 0.77 | 15.67 | 242.34 | -67.61 | 75.18 | 0.9226 | -175.0 | -97.0 | |
| 0.00 | 0.87 | 0.00 | 0.96 | 6.83 | 246.13 | -63.83 | 84.96 | 0.8964 | 459.0 | 466.9 | |
| 0.00 | 1.56 | 0.00 | 1.89 | 13.25 | 243.58 | -66.37 | 77.80 | 0.9141 | -289.0 | -206.0 | |
| 0.00 | 0.87 | 0.00 | 1.00 | 7.47 | 245.19 | -64.77 | 84.20 | 0.9033 | 395.0 | 328.6 | |
| 0.00 | 0.87 | 0.00 | 0.99 | 6.55 | 245.36 | -64.60 | 85.22 | 0.9024 | 328.0 | 334.3 | |
| 26.51 | 269.68 | 31.39 | 327.20 | 10.07 | 244.16 | -65.79 | 81.29 | 0.9102 | 676.0 | 79.8 | |
| 2.52 | -27.00 | 3.00 | -27.00 | 9.46 | 244.03 | -65.93 | 81.97 | 0.9113 | 576.0 | 999999 | |
| 0.00 | 5.91 | 0.00 | 6.97 | 8.40 | 244.32 | -65.63 | 83.14 | 0.9094 | 492.0 | 382.1 | |
| 0.00 | 0.61 | 0.00 | 0.82 | 15.11 | 240.86 | -69.09 | 75.79 | 0.9319 | 401.0 | 359.1 | |
| 0.52 | -27.00 | 0.63 | -27.00 | 9.57 | 243.60 | -66.35 | 81.83 | 0.9143 | 545.7 | 999999 | |
| 7.73 | -27.00 | 9.45 | -27.00 | 9.34 | 243.38 | -66.57 | 82.07 | 0.9158 | 438.9 | 999999 | |
| 2.52 | -27.00 | 3.11 | -27.00 | 9.47 | 243.10 | -66.85 | 81.92 | 0.9177 | -183.4 | 999999 | |
| 11.82 | -27.00 | 14.64 | -27.00 | 8.65 | 243.02 | -66.93 | 82.82 | 0.9184 | 501.7 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.90 | 10.86 | 241.94 | -68.01 | 80.38 | 0.9253 | -183.0 | -142.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
