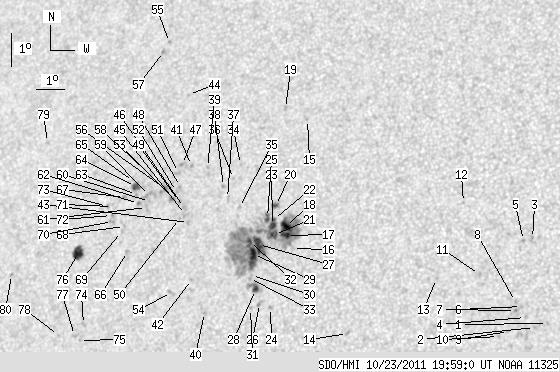

SDO HMI 2011-10-23 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.79 | 351.05 | 35.04 | 204.87 | 15.62 | 278.97 | -30.43 | 68.31 | 0.5262 | -109.6 | -132.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.60 | 13.30 | 289.65 | -19.74 | 66.05 | 0.3613 | -912.0 | -750.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.17 | 289.24 | -20.16 | 66.78 | 0.3667 | -916.0 | -662.6 | |
| 0.00 | 2.35 | 0.00 | 1.26 | 15.85 | 288.92 | -20.48 | 60.52 | 0.3883 | -760.0 | -643.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.46 | 288.92 | -20.48 | 66.32 | 0.3731 | -847.0 | -665.5 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 15.78 | 288.63 | -20.77 | 60.99 | 0.3919 | -814.0 | -570.8 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 13.79 | 288.76 | -20.64 | 65.65 | 0.3774 | -841.0 | -679.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.66 | 288.58 | -20.82 | 66.13 | 0.3794 | -978.0 | -794.4 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 13.93 | 288.55 | -20.85 | 65.49 | 0.3813 | -735.0 | -594.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.02 | 288.40 | -20.99 | 67.88 | 0.3784 | -727.0 | -631.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 12.86 | 288.09 | -21.31 | 68.54 | 0.3823 | -754.0 | -532.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 14.71 | 287.28 | -22.12 | 64.78 | 0.4043 | -841.0 | -692.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 16.87 | 286.49 | -22.91 | 60.70 | 0.4290 | -664.0 | -485.8 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 14.54 | 285.86 | -23.54 | 66.33 | 0.4239 | -720.0 | -593.5 | |
| 0.00 | 1.83 | 0.00 | 1.02 | 12.77 | 283.05 | -26.35 | 71.97 | 0.4571 | -799.0 | -595.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 19.19 | 280.68 | -28.72 | 60.93 | 0.5213 | -585.0 | -492.8 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 15.25 | 280.82 | -28.58 | 68.15 | 0.4993 | -163.0 | -122.7 | |
| 3.04 | 211.46 | 1.74 | 122.20 | 15.64 | 280.55 | -28.85 | 67.56 | 0.5048 | -1294.5 | -369.2 | |
| 6.69 | -17.00 | 3.84 | -17.00 | 15.91 | 280.47 | -28.93 | 67.09 | 0.5071 | -1137.5 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.97 | 19.50 | 279.82 | -29.57 | 60.99 | 0.5341 | -654.0 | -447.7 | |
| 2.78 | 2.78 | 1.61 | 1.61 | 16.53 | 280.01 | -29.39 | 66.20 | 0.5162 | -672.2 | -717.0 | |
| 4.78 | -17.00 | 2.75 | -17.00 | 15.65 | 280.12 | -29.28 | 67.78 | 0.5108 | -1024.9 | 999999 | |
| 1.48 | -17.00 | 0.85 | -17.00 | 16.10 | 280.01 | -29.39 | 66.99 | 0.5143 | -765.2 | 999999 | |
| 4.61 | -17.00 | 2.66 | -17.00 | 15.92 | 280.00 | -29.39 | 67.33 | 0.5136 | -898.3 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 13.44 | 280.30 | -29.10 | 71.92 | 0.4996 | -881.0 | -630.9 | |
| 3.30 | -17.00 | 1.91 | -17.00 | 16.15 | 279.79 | -29.61 | 67.02 | 0.5176 | -708.9 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.64 | 13.55 | 279.90 | -29.50 | 71.90 | 0.5057 | -834.0 | -690.9 | |
| 8.08 | -17.00 | 4.67 | -17.00 | 15.32 | 279.60 | -29.80 | 68.66 | 0.5166 | -1064.7 | 999999 | |
| 3.30 | 9.91 | 1.90 | 5.70 | 13.96 | 279.70 | -29.70 | 71.19 | 0.5100 | -998.5 | -634.0 | |
| 5.82 | -17.00 | 3.37 | -17.00 | 15.01 | 279.47 | -29.93 | 69.31 | 0.5172 | -1033.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 14.38 | 279.50 | -29.90 | 70.49 | 0.5144 | -673.0 | -586.7 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 13.38 | 279.60 | -29.80 | 72.34 | 0.5094 | -619.0 | -479.2 | |
| 1.74 | -17.00 | 1.01 | -17.00 | 15.40 | 279.27 | -30.13 | 68.69 | 0.5216 | -698.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 14.28 | 279.44 | -29.96 | 70.70 | 0.5149 | -792.0 | -627.4 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 17.72 | 278.53 | -30.87 | 64.90 | 0.5418 | -628.0 | -427.2 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 16.41 | 278.74 | -30.66 | 67.12 | 0.5331 | -512.0 | -338.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 17.28 | 278.36 | -31.04 | 65.77 | 0.5420 | -458.0 | -400.1 | |
| 0.00 | 1.56 | 0.00 | 0.92 | 16.66 | 278.26 | -31.14 | 66.92 | 0.5407 | -628.0 | -501.1 | |
| 0.00 | 1.65 | 0.00 | 0.97 | 17.02 | 278.04 | -31.35 | 66.40 | 0.5451 | -548.0 | -428.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 17.57 | 277.35 | -32.05 | 65.80 | 0.5568 | 826.0 | 693.0 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 13.19 | 277.99 | -31.41 | 73.34 | 0.5318 | -653.0 | -518.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 17.60 | 276.75 | -32.65 | 66.05 | 0.5648 | 838.0 | 676.2 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 14.16 | 277.37 | -32.03 | 71.80 | 0.5434 | 742.0 | 616.9 | |
| 0.00 | 2.09 | 0.00 | 1.24 | 15.87 | 276.97 | -32.43 | 68.93 | 0.5549 | 843.0 | 779.7 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 19.76 | 276.16 | -33.24 | 62.78 | 0.5823 | 618.0 | 483.0 | |
| 0.00 | 2.43 | 0.00 | 1.45 | 16.11 | 276.82 | -32.58 | 68.59 | 0.5579 | 789.0 | 748.2 | |
| 0.00 | 2.78 | 0.00 | 1.66 | 16.32 | 276.74 | -32.66 | 68.26 | 0.5597 | 820.0 | 630.6 | |
| 0.00 | 2.09 | 0.00 | 1.25 | 17.62 | 276.41 | -32.99 | 66.20 | 0.5694 | 835.0 | 674.2 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 16.95 | 276.47 | -32.93 | 67.31 | 0.5658 | 691.0 | 657.6 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 16.49 | 276.52 | -32.87 | 68.06 | 0.5633 | 863.0 | 711.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 15.98 | 276.62 | -32.78 | 68.91 | 0.5600 | 599.0 | 494.7 | |
| 0.00 | 2.52 | 0.00 | 1.52 | 17.37 | 276.31 | -33.09 | 66.67 | 0.5696 | 850.0 | 646.3 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 16.79 | 276.35 | -33.04 | 67.63 | 0.5667 | 801.0 | 661.5 | |
| 1.13 | 2.09 | 0.68 | 1.25 | 16.57 | 276.29 | -33.11 | 68.03 | 0.5668 | 856.5 | 728.1 | |
| 0.00 | 3.04 | 0.00 | 1.80 | 13.73 | 276.71 | -32.69 | 72.81 | 0.5513 | 661.0 | 539.8 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 21.33 | 275.04 | -34.36 | 60.92 | 0.6039 | 774.0 | 648.7 | |
| 0.00 | 6.34 | 0.00 | 3.83 | 16.86 | 275.89 | -33.51 | 67.73 | 0.5731 | 951.0 | 788.5 | |
| 0.00 | 1.91 | 0.00 | 1.19 | 21.04 | 274.88 | -34.52 | 61.45 | 0.6043 | 862.0 | 693.7 | |
| 0.00 | 1.91 | 0.00 | 1.16 | 17.23 | 275.29 | -34.11 | 67.38 | 0.5825 | 748.0 | 492.7 | |
| 0.00 | 6.43 | 0.00 | 3.90 | 16.62 | 275.38 | -34.02 | 68.35 | 0.5790 | 671.0 | 715.6 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 16.44 | 275.42 | -33.98 | 68.64 | 0.5779 | 783.0 | 614.7 | |
| 0.00 | 2.52 | 0.00 | 1.53 | 16.25 | 275.34 | -34.06 | 68.99 | 0.5782 | 708.0 | 603.1 | |
| 0.00 | 1.48 | 0.00 | 0.90 | 16.36 | 275.02 | -34.38 | 68.94 | 0.5828 | 862.0 | 766.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 16.62 | 274.89 | -34.51 | 68.55 | 0.5855 | 762.0 | 592.0 | |
| 3.65 | 7.21 | 2.23 | 4.40 | 16.86 | 274.80 | -34.60 | 68.19 | 0.5875 | 788.0 | 632.9 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 17.01 | 274.69 | -34.71 | 67.99 | 0.5895 | 297.0 | 353.8 | |
| 0.00 | 2.17 | 0.00 | 1.32 | 14.89 | 274.89 | -34.51 | 71.46 | 0.5797 | 834.0 | 657.2 | |
| 0.00 | 1.39 | 0.00 | 0.85 | 16.51 | 274.46 | -34.94 | 68.92 | 0.5908 | 716.0 | 653.2 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 15.64 | 274.63 | -34.77 | 70.30 | 0.5855 | 742.0 | 667.0 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 15.48 | 274.55 | -34.85 | 70.59 | 0.5861 | 689.0 | 452.2 | |
| 0.00 | 2.17 | 0.00 | 1.33 | 15.76 | 274.15 | -35.25 | 70.27 | 0.5923 | 792.0 | 594.4 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 16.22 | 274.06 | -35.34 | 69.56 | 0.5950 | 509.0 | 398.4 | |
| 0.00 | 1.22 | 0.00 | 0.75 | 15.94 | 274.08 | -35.32 | 70.00 | 0.5938 | 703.0 | 549.1 | |
| 0.00 | 1.65 | 0.00 | 1.02 | 16.21 | 273.87 | -35.53 | 69.64 | 0.5974 | 593.0 | 444.8 | |
| 0.00 | 2.17 | 0.00 | 1.33 | 12.61 | 273.62 | -35.77 | 75.68 | 0.5910 | 705.0 | 549.6 | |
| 0.00 | 0.96 | 0.00 | 0.59 | 12.13 | 273.55 | -35.85 | 76.52 | 0.5910 | 779.0 | 665.5 | |
| 9.39 | 11.56 | 5.82 | 7.17 | 14.76 | 273.05 | -36.35 | 72.28 | 0.6039 | 805.4 | 555.1 | |
| 0.00 | 2.26 | 0.00 | 1.39 | 12.27 | 273.34 | -36.06 | 76.33 | 0.5942 | 654.0 | 570.1 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 12.23 | 272.74 | -36.66 | 76.52 | 0.6023 | 511.0 | 414.8 | |
| 0.00 | 1.39 | 0.00 | 0.89 | 18.02 | 271.10 | -38.30 | 67.81 | 0.6388 | 640.0 | 430.6 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 13.96 | 270.60 | -38.80 | 74.23 | 0.6341 | 751.0 | 616.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
