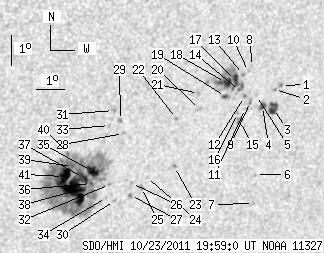

SDO HMI 2011-10-23 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.09 | 398.83 | 56.55 | 241.81 | -21.42 | 332.77 | 23.37 | 219.87 | 0.5787 | -287.6 | -187.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.92 | -19.14 | 338.26 | 28.87 | 228.64 | 0.6099 | 714.0 | 643.1 | |
| 0.00 | 1.22 | 0.00 | 0.76 | -19.26 | 338.03 | 28.64 | 228.27 | 0.6085 | 767.0 | 673.3 | |
| 7.56 | 9.56 | 4.74 | 5.99 | -19.88 | 338.12 | 28.72 | 227.54 | 0.6148 | 724.7 | 646.1 | |
| 3.04 | 4.69 | 1.90 | 2.93 | -19.80 | 337.71 | 28.31 | 227.25 | 0.6099 | 749.9 | 539.1 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -19.42 | 337.42 | 28.02 | 227.45 | 0.6037 | 650.0 | 531.4 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -22.06 | 337.92 | 28.52 | 224.66 | 0.6320 | 590.0 | 510.0 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -23.04 | 338.07 | 28.67 | 223.64 | 0.6421 | 585.0 | 460.5 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -18.46 | 337.10 | 27.70 | 228.39 | 0.5920 | 734.0 | 641.8 | |
| 0.00 | 2.43 | 0.00 | 1.51 | -19.61 | 337.24 | 27.84 | 227.03 | 0.6035 | 805.0 | 643.7 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -18.62 | 336.99 | 27.59 | 228.07 | 0.5922 | 624.0 | 522.5 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -19.84 | 337.10 | 27.70 | 226.61 | 0.6041 | 452.0 | 458.5 | |
| 0.00 | 1.39 | 0.00 | 0.86 | -19.44 | 336.99 | 27.59 | 227.01 | 0.5994 | 829.0 | 763.6 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -18.71 | 336.83 | 27.43 | 227.79 | 0.5913 | 775.0 | 679.6 | |
| 0.26 | 46.67 | 0.16 | 28.51 | -19.23 | 336.78 | 27.38 | 227.06 | 0.5954 | 745.7 | 660.9 | |
| 0.00 | 3.74 | 0.00 | 2.32 | -20.22 | 336.96 | 27.56 | 225.97 | 0.6062 | 673.0 | 560.1 | |
| 0.00 | 1.48 | 0.00 | 0.92 | -19.99 | 336.85 | 27.45 | 226.15 | 0.6029 | 677.0 | 558.2 | |
| 5.04 | -14.00 | 3.09 | -14.00 | -18.90 | 336.57 | 27.18 | 227.29 | 0.5903 | 983.9 | 999999 | |
| 8.52 | -14.00 | 5.20 | -14.00 | -18.95 | 336.23 | 26.83 | 226.87 | 0.5872 | 1073.4 | 999999 | |
| 1.83 | 3.48 | 1.12 | 2.13 | -19.41 | 336.31 | 26.91 | 226.35 | 0.5922 | 580.5 | 568.8 | |
| 0.00 | 2.61 | 0.00 | 1.59 | -19.80 | 335.46 | 26.06 | 224.96 | 0.5872 | 652.0 | 510.5 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -19.27 | 335.33 | 25.93 | 225.50 | 0.5810 | 823.0 | 656.4 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -20.06 | 334.70 | 25.30 | 223.79 | 0.5822 | 692.0 | 611.7 | |
| 0.00 | 1.65 | 0.00 | 1.02 | -21.66 | 334.92 | 25.52 | 222.06 | 0.5998 | -781.0 | -691.5 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -21.99 | 333.98 | 24.58 | 220.64 | 0.5945 | -507.0 | -391.7 | |
| 0.00 | 2.87 | 0.00 | 1.77 | -22.32 | 333.87 | 24.47 | 220.13 | 0.5968 | -747.0 | -604.9 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -22.17 | 333.49 | 24.09 | 219.87 | 0.5918 | -749.0 | -625.3 | |
| 0.00 | 2.00 | 0.00 | 1.23 | -22.57 | 333.53 | 24.13 | 219.45 | 0.5963 | -826.0 | -621.9 | |
| 0.00 | 1.65 | 0.00 | 0.99 | -20.48 | 332.91 | 23.52 | 221.23 | 0.5693 | -601.0 | -475.3 | |
| 0.00 | 2.43 | 0.00 | 1.46 | -20.05 | 332.74 | 23.34 | 221.57 | 0.5631 | -685.0 | -524.8 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -22.72 | 332.99 | 23.59 | 218.66 | 0.5931 | -434.0 | -359.8 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -19.71 | 332.45 | 23.05 | 221.64 | 0.5568 | -739.0 | -668.7 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -22.17 | 332.71 | 23.31 | 218.97 | 0.5849 | -567.0 | -391.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -20.20 | 332.38 | 22.99 | 220.95 | 0.5613 | -750.0 | -636.3 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -22.61 | 332.69 | 23.29 | 218.44 | 0.5892 | -511.0 | -422.1 | |
| 8.43 | 292.89 | 5.09 | 176.73 | -21.71 | 332.04 | 22.64 | 218.71 | 0.5741 | -994.9 | -383.6 | |
| 1.22 | -35.00 | 0.74 | -35.00 | -22.12 | 332.07 | 22.67 | 218.28 | 0.5786 | -475.4 | 999999 | |
| 8.00 | -35.00 | 4.83 | -35.00 | -21.90 | 331.72 | 22.32 | 218.11 | 0.5733 | -904.1 | 999999 | |
| 30.77 | -35.00 | 18.62 | -35.00 | -22.33 | 331.55 | 22.15 | 217.40 | 0.5764 | -1004.7 | 999999 | |
| 1.04 | -35.00 | 0.63 | -35.00 | -21.52 | 331.31 | 21.92 | 218.05 | 0.5655 | -866.3 | 999999 | |
| 1.04 | -35.00 | 0.62 | -35.00 | -21.08 | 331.11 | 21.71 | 218.31 | 0.5589 | -743.7 | 999999 | |
| 16.34 | -35.00 | 9.81 | -35.00 | -21.84 | 331.06 | 21.66 | 217.35 | 0.5668 | -1350.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
