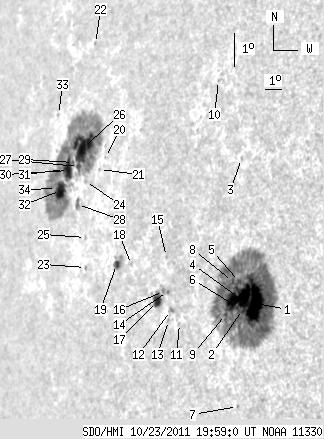

SDO HMI 2011-10-23 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.93 | 747.81 | 131.51 | 734.85 | 7.84 | 249.58 | -59.82 | 84.03 | 0.8593 | -180.1 | -104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-23 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.72 | 428.39 | 29.87 | 362.80 | 6.27 | 255.47 | -53.93 | 86.04 | 0.8076 | -1265.0 | -298.9 | |
| 0.78 | -1.00 | 0.66 | -1.00 | 6.04 | 254.83 | -54.57 | 86.29 | 0.8142 | -681.2 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.06 | 10.51 | 253.84 | -55.56 | 80.81 | 0.8236 | -450.0 | -301.9 | |
| 31.98 | -1.00 | 27.26 | -1.00 | 6.36 | 254.63 | -54.77 | 85.90 | 0.8162 | -736.4 | 999999 | |
| 1.74 | -1.00 | 1.48 | -1.00 | 6.86 | 254.54 | -54.86 | 85.28 | 0.8168 | -301.8 | 999999 | |
| 0.26 | -1.00 | 0.22 | -1.00 | 6.08 | 254.56 | -54.84 | 86.23 | 0.8169 | -525.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.96 | 3.14 | 254.90 | -54.50 | 89.86 | 0.8151 | 476.0 | 346.2 | |
| 1.56 | -1.00 | 1.35 | -1.00 | 6.83 | 254.18 | -55.22 | 85.30 | 0.8205 | -245.8 | 999999 | |
| 1.13 | -1.00 | 0.98 | -1.00 | 5.83 | 253.97 | -55.43 | 86.51 | 0.8229 | -199.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 12.73 | 251.87 | -57.53 | 78.20 | 0.8428 | -465.0 | -411.6 | |
| 0.00 | 0.87 | 0.00 | 0.80 | 5.37 | 251.51 | -57.89 | 86.93 | 0.8466 | -371.0 | -332.8 | |
| 0.00 | 2.61 | 0.00 | 2.45 | 5.72 | 250.94 | -58.46 | 86.49 | 0.8517 | -453.0 | -336.0 | |
| 0.00 | 1.30 | 0.00 | 1.23 | 5.41 | 250.87 | -58.53 | 86.85 | 0.8525 | -445.0 | -345.0 | |
| 0.35 | 1.22 | 0.33 | 1.15 | 6.27 | 250.67 | -58.73 | 85.83 | 0.8539 | 175.8 | 134.9 | |
| 0.00 | 1.13 | 0.00 | 1.08 | 7.30 | 250.41 | -58.99 | 84.62 | 0.8560 | -388.0 | -285.3 | |
| 0.00 | 2.43 | 0.00 | 2.32 | 6.25 | 250.44 | -58.96 | 85.84 | 0.8560 | -744.0 | -592.8 | |
| 6.61 | 10.43 | 6.35 | 10.02 | 5.92 | 250.09 | -59.31 | 86.21 | 0.8593 | -454.0 | -324.1 | |
| 0.00 | 1.22 | 0.00 | 1.23 | 6.90 | 248.37 | -61.03 | 85.00 | 0.8738 | -145.0 | -50.6 | |
| 3.48 | 7.74 | 3.62 | 8.02 | 6.82 | 247.44 | -61.96 | 85.04 | 0.8816 | 740.9 | 515.2 | |
| 0.00 | 0.70 | 0.00 | 0.76 | 9.92 | 245.81 | -63.59 | 81.50 | 0.8939 | 522.0 | 524.2 | |
| 0.00 | 0.70 | 0.00 | 0.77 | 9.53 | 245.53 | -63.87 | 81.93 | 0.8961 | 471.0 | 440.1 | |
| 0.00 | 1.48 | 0.00 | 1.75 | 13.21 | 243.66 | -65.74 | 77.84 | 0.9097 | -137.0 | -175.2 | |
| 0.00 | 1.22 | 0.00 | 1.36 | 6.57 | 245.43 | -63.97 | 85.23 | 0.8976 | 346.0 | 317.4 | |
| 0.00 | 1.56 | 0.00 | 1.78 | 9.10 | 244.69 | -64.70 | 82.39 | 0.9025 | 460.0 | 432.9 | |
| 0.00 | 1.30 | 0.00 | 1.46 | 7.46 | 245.20 | -64.20 | 84.24 | 0.8991 | 404.0 | 251.7 | |
| 26.94 | 274.12 | 31.30 | 325.78 | 10.09 | 244.19 | -65.21 | 81.28 | 0.9060 | 662.8 | 93.4 | |
| 2.26 | -26.00 | 2.64 | -26.00 | 9.50 | 244.05 | -65.35 | 81.93 | 0.9072 | 621.8 | 999999 | |
| 0.00 | 5.13 | 0.00 | 5.92 | 8.38 | 244.36 | -65.04 | 83.18 | 0.9051 | 497.0 | 408.9 | |
| 0.43 | -26.00 | 0.51 | -26.00 | 9.59 | 243.64 | -65.76 | 81.82 | 0.9101 | 365.0 | 999999 | |
| 8.78 | -26.00 | 10.49 | -26.00 | 9.33 | 243.37 | -66.03 | 82.11 | 0.9121 | 487.6 | 999999 | |
| 1.22 | -26.00 | 1.47 | -26.00 | 9.33 | 243.06 | -66.34 | 82.09 | 0.9142 | -173.9 | 999999 | |
| 10.17 | -26.00 | 12.34 | -26.00 | 8.69 | 242.99 | -66.41 | 82.79 | 0.9148 | 493.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.43 | 10.90 | 241.93 | -67.47 | 80.35 | 0.9217 | -240.0 | -180.0 | |
| 0.52 | -26.00 | 0.64 | -26.00 | 8.73 | 242.67 | -66.72 | 82.74 | 0.9170 | -104.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
